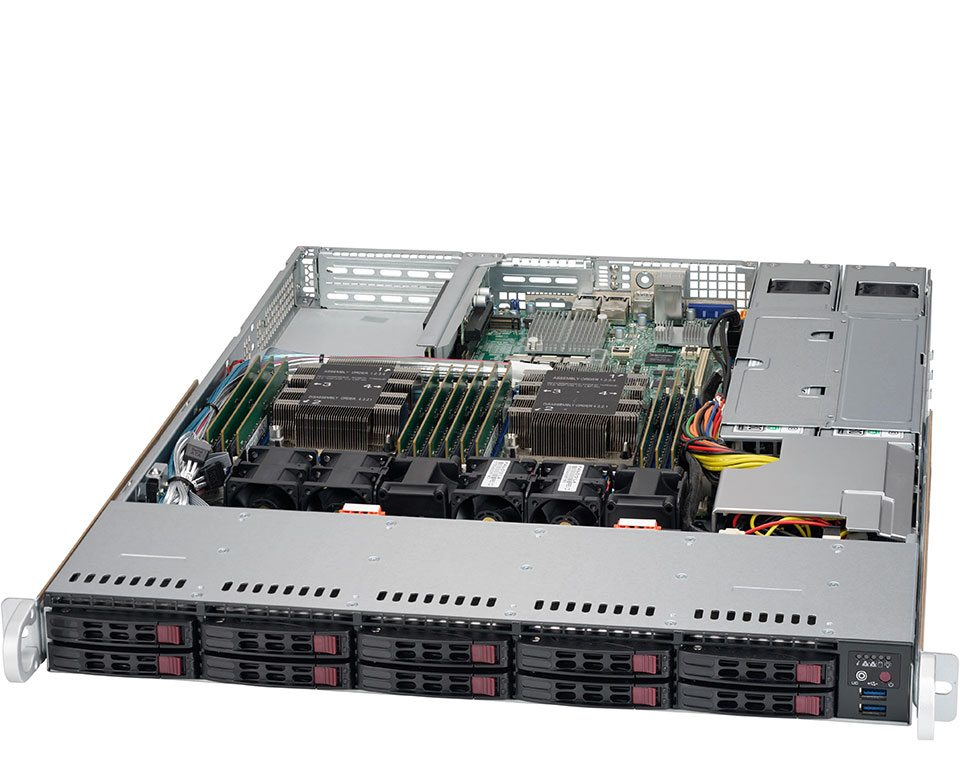

SERVERline R41200s
Model SERVERline R41200sPart no. 850369EAN 4250749702499
40 specifications
- ProcessorAMD EPYC
- Memory32 GB
- Storage960 GB
- ColourBlack, Silver
- Processor manufacturerAMD
- On-board graphics card modelAspeed AST2500
Overview
- Processor
- AMD EPYC
- Memory
- 32 GB
- Storage
- 960 GB
- Colour
- Black, Silver
- Processor manufacturer
- AMD
- On-board graphics card model
- Aspeed AST2500
- Brand
- bluechip
- Category
- Server
- Model
- SERVERline R41200s
- Part number
- 850369
- EAN / UPC
- 4250749702499
- Also known as
- bluechip SERVERline R41200s
Specifications
40 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Processor model | 7232P |
| Processor frequency | 3.1 GHz |
| Processor boost frequency | 3.2 GHz |
| Processor cache | 32 MB |
| Processor socket | Socket SP3 |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| ECC | Yes |
| Memory clock speed | 3200 MHz |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | DIMM |
| Maximum internal memory | 2 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 960 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 960 GB |
| NVMe | Yes |
| SSD interface | NVMe, PCI Express 3.0 |
| RAID support | No |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2500 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| LAN controller | Broadcom 57416 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black, Silver |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 750 W |
Certificates
| Specification | Value |
|---|---|
| Certification | 80Plus Platinum |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 437 mm |
| Depth | 597 mm |
| Height | 43 mm |
Technical details
| Specification | Value |
|---|---|
| Number of 2.5" bays | 10 |
| Target market | Small Business |
