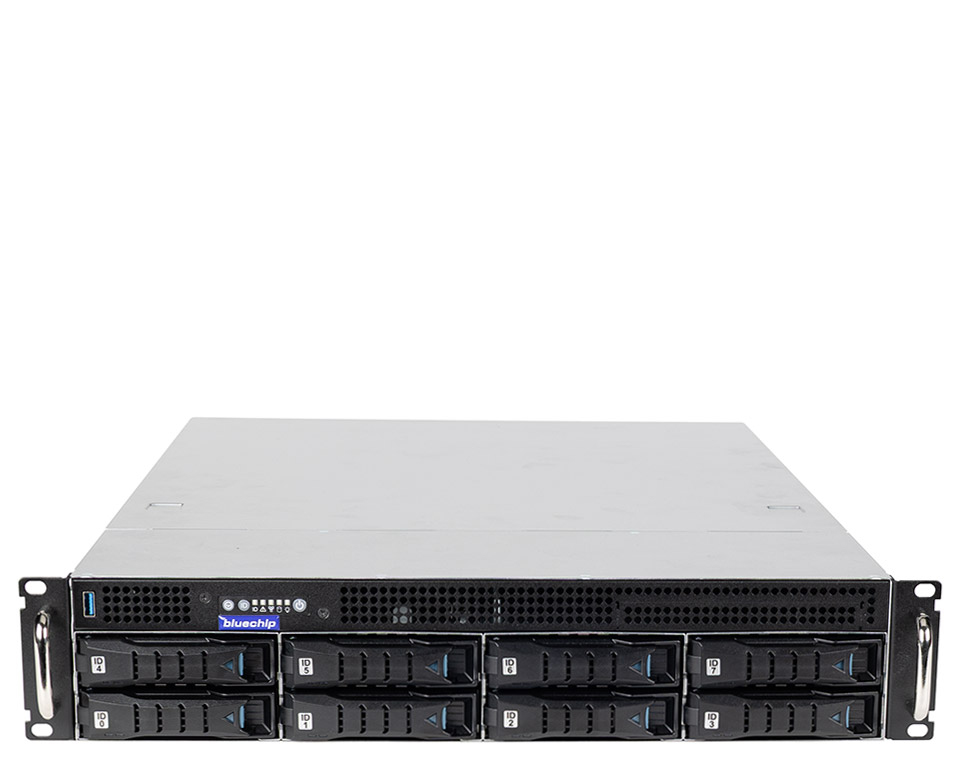

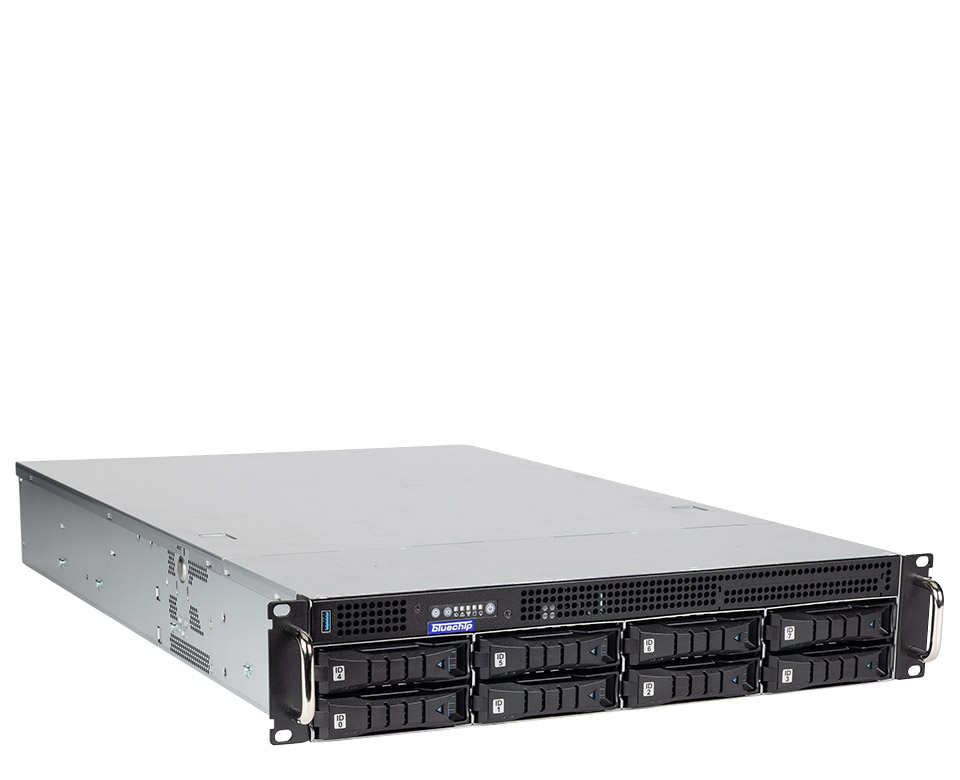

SERVERline R32318r
Model SERVERline R32318rPart no. 850677EAN 4250749711675
48 specifications
- ProcessorIntel Xeon 6
- Memory32 GB
- Storage1.92 TB
- ColourBlack, Silver
- Processor manufacturerIntel
- On-board graphics cardYes
Overview
- Processor
- Intel Xeon 6
- Memory
- 32 GB
- Storage
- 1.92 TB
- Colour
- Black, Silver
- Processor manufacturer
- Intel
- On-board graphics card
- Yes
- Brand
- bluechip
- Category
- Server
- Model
- SERVERline R32318r
- Part number
- 850677
- EAN / UPC
- 4250749711675
- Also known as
- bluechip SERVERline R32318r 2HE Rack, Intel® Xeon® 6315P Prozessor / bis zu 5.20 GHz, Intel® C242, 32 GB DDR5, 2 x 480 GB SSD, TPM-Modul, 2 x RJ45 (1 Gb/s)
Specifications
48 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon 6 |
| Processor model | 6315P |
| Processor frequency | 2.8 GHz |
| Processor boost frequency | 4.7 GHz |
| Processor cores | 4 |
| Motherboard chipset | Intel C242 |
| Processor socket | LGA 1700 |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| ECC | Yes |
| Memory clock speed | 4800 MHz |
| Memory slots | 4x DIMM |
| Maximum internal memory | 128 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.92 TB |
| Number of SSDs installed | 2 |
| SSD capacity | 960 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Hot-swap | Yes |
| Internal drive bays | 8 |
| Optical drive type | No |
| Supported storage drive interfaces | SAS, Serial ATA |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Aspeed |
| On-board graphics card model | Aspeed AST2600 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I210 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black, Silver |
Performance
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 550 W |
Certificates
| Specification | Value |
|---|---|
| 80 PLUS certification | 80 PLUS Platinum |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 430 mm |
| Depth | 680 mm |
| Height | 88 mm |
Technical details
| Specification | Value |
|---|---|
| Supported storage drives form factor (internal) | 2.5" / 3.5" |
Other features
| Specification | Value |
|---|---|
| Motherboard manufacturer | ASRock Rack EC262D4U incl. TPM module |
