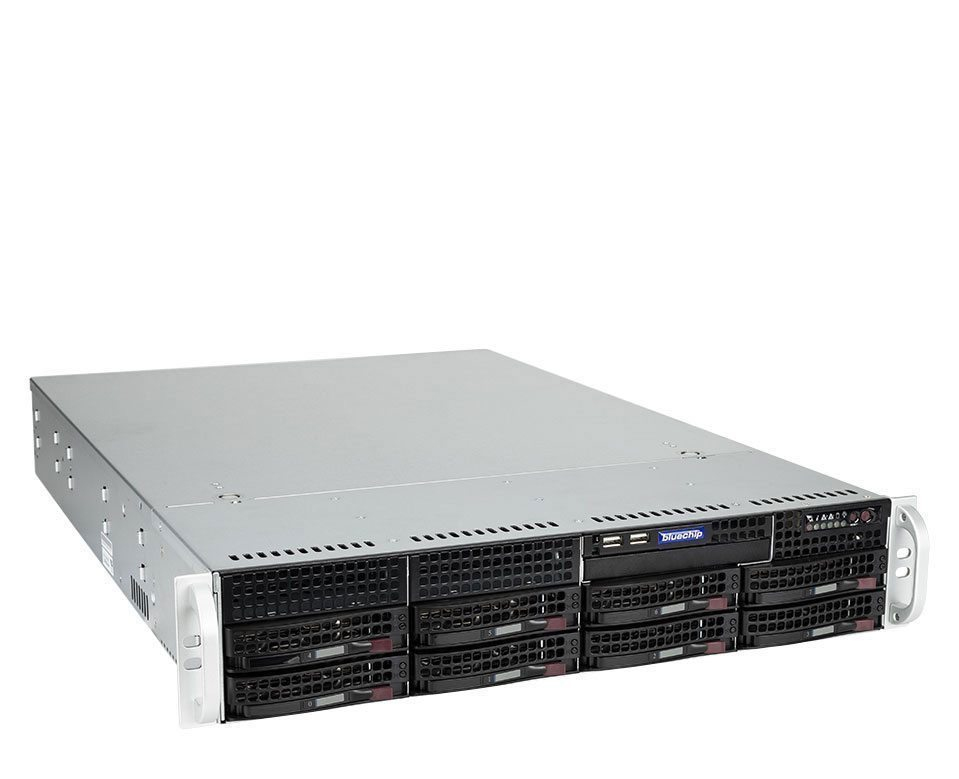

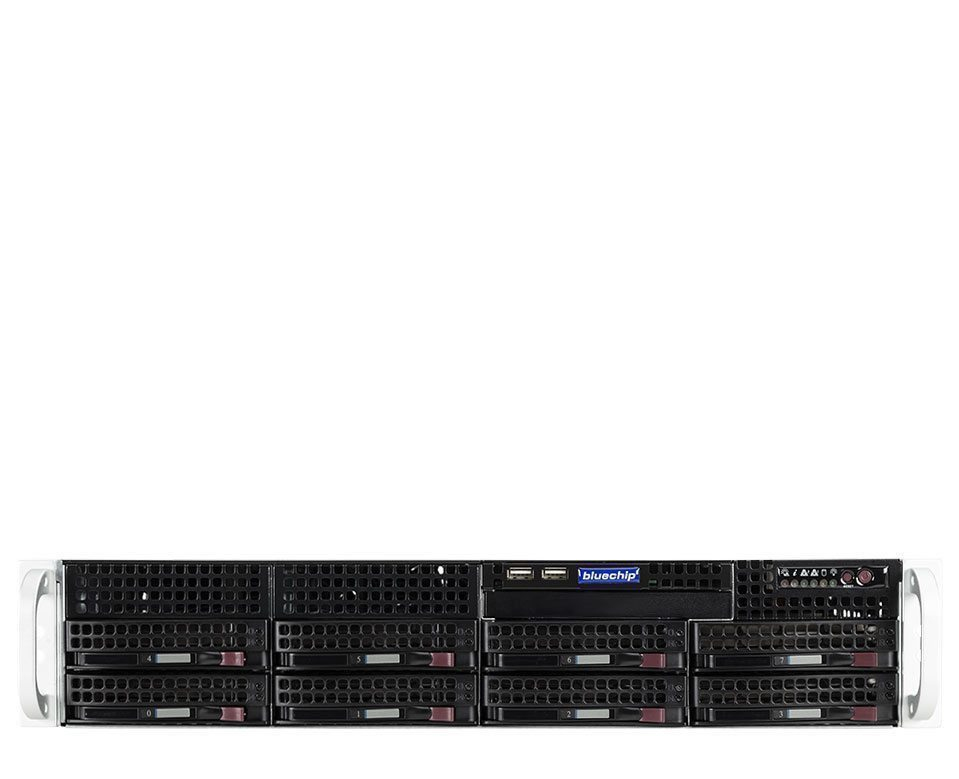

SERVERline R32308s
Model SERVERline R32308sPart no. 850592EAN 4250749708774
56 specifications
- ProcessorAMD EPYC
- Memory32 GB
- Storage960 GB
- OSNo
- ColourBlack, Silver
- Processor manufacturerAMD
Overview
- Processor
- AMD EPYC
- Memory
- 32 GB
- Storage
- 960 GB
- OS
- No
- Colour
- Black, Silver
- Processor manufacturer
- AMD
- Brand
- bluechip
- Category
- Server
- Model
- SERVERline R32308s
- Part number
- 850592
- EAN / UPC
- 4250749708774
- Also known as
- bluechip SERVERline R32308s
Specifications
56 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Processor model | 4124P |
| Processor frequency | 3.8 GHz |
| Processor boost frequency | 5.1 GHz |
| Processor cores | 4 |
| Processor cache | 16 MB |
| Motherboard chipset | AMD B650 |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 65 W |
| Processor socket | Socket AM5 |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| ECC | Yes |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 4x DIMM |
| Maximum internal memory | 192 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 960 GB |
| Number of SSDs installed | 2 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Hot-swap | Yes |
| Internal drive bays | 8 |
| Optical drive type | No |
| Supported storage drive interfaces | SAS, Serial ATA |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Aspeed AST2600 |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I210 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| HDMI ports quantity | 1 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black, Silver |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Power
| Specification | Value |
|---|---|
| Power supply | 600 W |
Certificates
| Specification | Value |
|---|---|
| 80 PLUS certification | 80 PLUS Platinum |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 437 mm |
| Depth | 89 mm |
| Height | 647 mm |
Technical details
| Specification | Value |
|---|---|
| Supported storage drives form factor (internal) | 2.5"/3.5" |
Other features
| Specification | Value |
|---|---|
| Bandwidth | 6 Gbit/s |
| Motherboard manufacturer | Supermicro H13SAE-MF |
