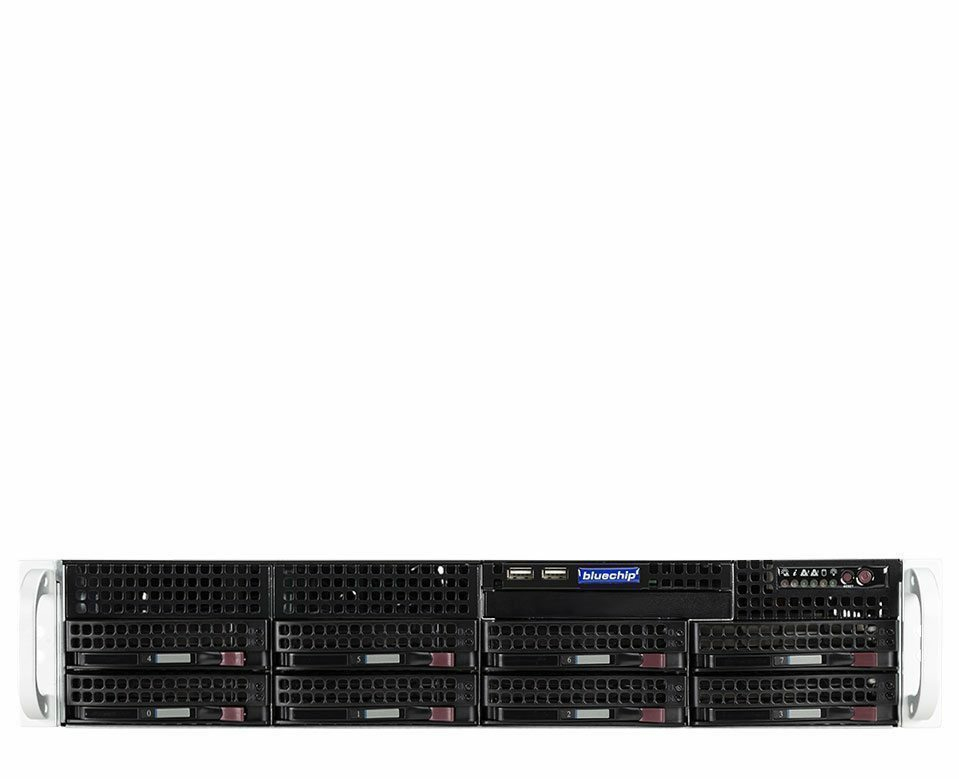

SERVERline R32307s
Model SERVERline R32307sPart no. 850569EAN 4250749708293
51 specifications
- ProcessorIntel Xeon E
- Memory32 GB
- Storage960 GB
- OSNo
- ColourBlack, Silver
- Processor manufacturerIntel
Overview
- Processor
- Intel Xeon E
- Memory
- 32 GB
- Storage
- 960 GB
- OS
- No
- Colour
- Black, Silver
- Processor manufacturer
- Intel
- Brand
- bluechip
- Category
- Server
- Model
- SERVERline R32307s
- Part number
- 850569
- EAN / UPC
- 4250749708293
- Also known as
- bluechip SERVERline R32307s
Specifications
51 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2414 |
| Processor frequency | 2.6 GHz |
| Processor boost frequency | 4.5 GHz |
| Performance cores | 4 |
| Processor cores | 4 |
| Processor cache | 12 MB |
| Motherboard chipset | Intel C262 |
| Number of processors installed | 1 |
| Processor socket | LGA 1700 |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| ECC | Yes |
| Memory clock speed | 4800 MHz |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 4x DIMM |
| Maximum internal memory | 128 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 960 GB |
| Number of SSDs installed | 2 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Hot-swap | Yes |
| Internal drive bays | 8 |
| Supported storage drive interfaces | SAS, Serial ATA |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Aspeed AST2600 |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I210 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 1 |
| PCI Express x8 (Gen 4.x) slots | 2 |
| PCI Express x16 slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black, Silver |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Power
| Specification | Value |
|---|---|
| Power supply | 600 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 437 mm |
| Depth | 647 mm |
| Height | 89 mm |
Other features
| Specification | Value |
|---|---|
| Motherboard manufacturer | Supermicro X13SCL-F |
