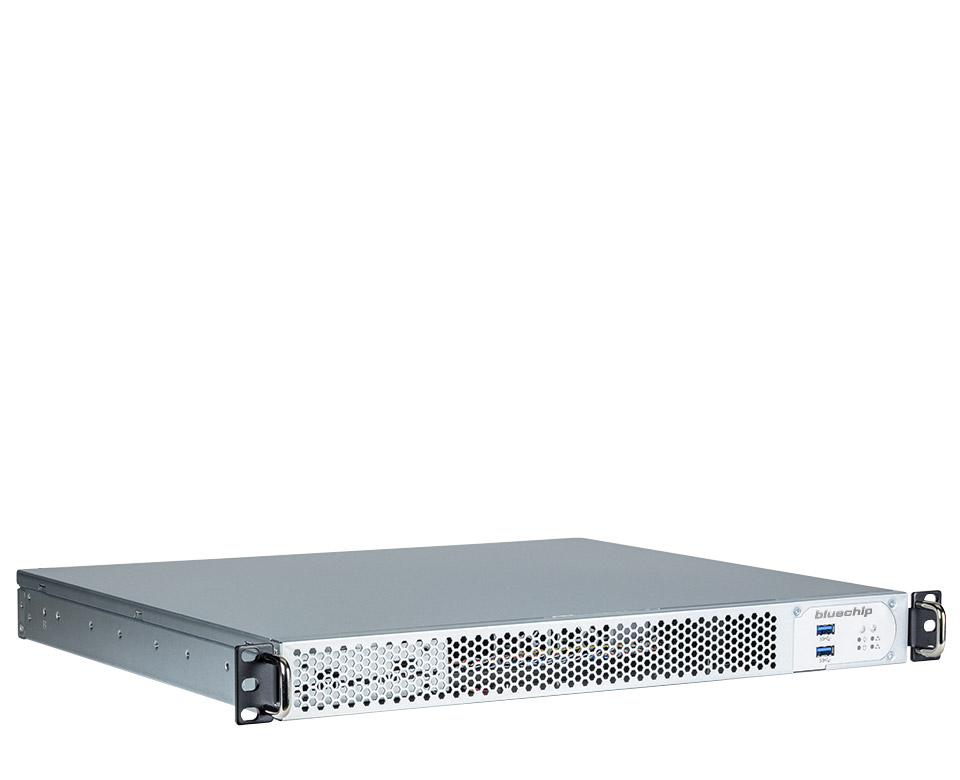

SERVERline R31319r *Firewall Edition*
Model SERVERline R31319r *Firewall Edition*Part no. 850671EAN 4250749711446
46 specifications
- ProcessorIntel Xeon E
- Memory16 GB
- Storage480 GB
- ColourSilver
- Processor manufacturerIntel
- On-board graphics cardYes
Overview
- Processor
- Intel Xeon E
- Memory
- 16 GB
- Storage
- 480 GB
- Colour
- Silver
- Processor manufacturer
- Intel
- On-board graphics card
- Yes
- Brand
- bluechip
- Category
- Server
- Model
- SERVERline R31319r *Firewall Edition*
- Part numbers
- 850671, 850693
- EAN / UPC
- 4250749711446, 4250749711873
- Also known as
- bluechip SERVERline R31319r *Firewall Edition* server 480 GB Rack (1U) Intel Xeon E E-2434 3.4 GHz 16 GB DDR5-SDRAM 265 W
Specifications
46 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2434 |
| Processor frequency | 3.4 GHz |
| Processor boost frequency | 5 GHz |
| Performance cores | 4 |
| Processor cores | 4 |
| Processor cache | 12 MB |
| Motherboard chipset | Intel C262 |
| Number of processors installed | 1 |
| Processor socket | LGA 1700 |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| ECC | Yes |
| Memory clock speed | 4400 MHz |
| Memory slots | 4x DIMM |
| Maximum internal memory | 128 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 480 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 480 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| Hot-swap | No |
| Internal drive bays | 4 |
| Supported storage drive interfaces | SAS, Serial ATA |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Aspeed |
| On-board graphics card model | Aspeed AST2600 |
Network
| Specification | Value |
|---|---|
| LAN controller | Intel I210 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Silver |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Power supply | 265 W |
Certificates
| Specification | Value |
|---|---|
| 80 PLUS certification | 80 PLUS Bronze |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 430 mm |
| Depth | 366 mm |
| Height | 43 mm |
Technical details
| Specification | Value |
|---|---|
| Supported storage drives form factor (internal) | 2.5" / 3.5" |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 6 Gbit/s |
| Motherboard manufacturer | ASRock Rack EC262D4U |
