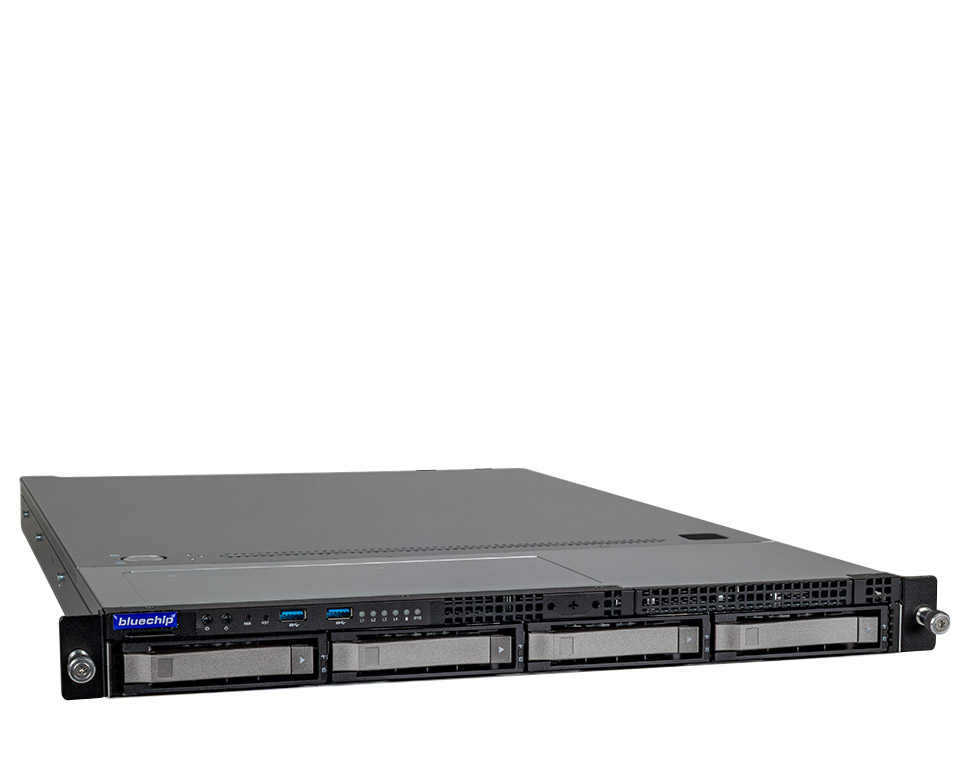

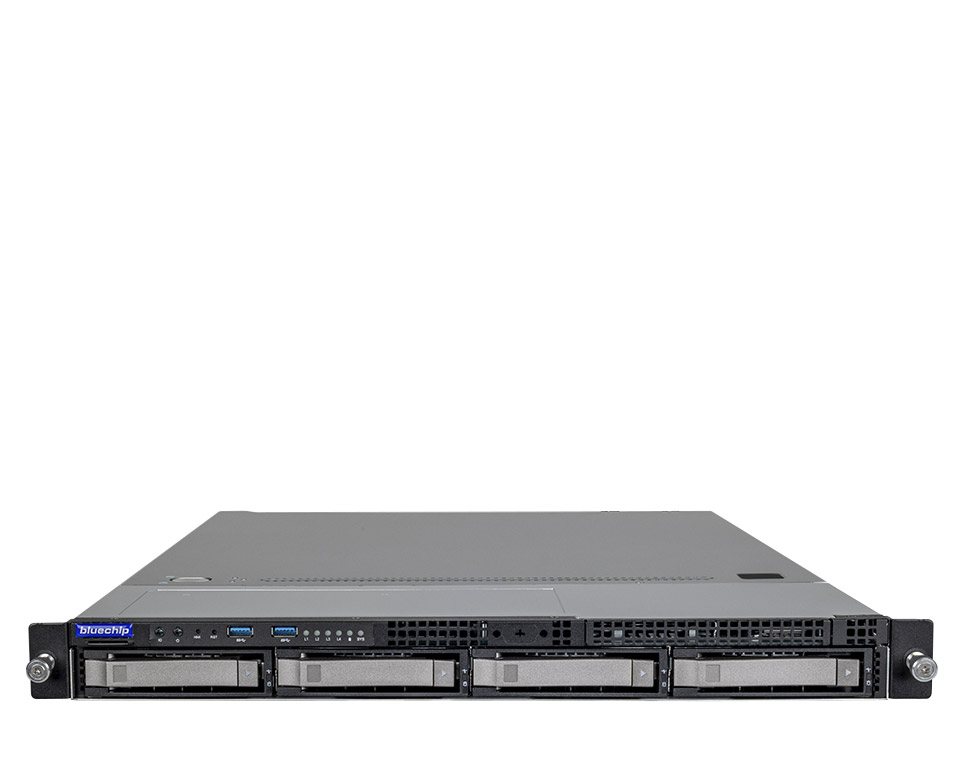

SERVERline R31310r
Model SERVERline R31310rPart no. 850736EAN 4250749712573
55 specifications
- ProcessorAMD EPYC
- Memory16 GB
- Storage960 GB
- ColourBlack, Silver
- Processor manufacturerAMD
- On-board graphics cardYes
Overview
- Processor
- AMD EPYC
- Memory
- 16 GB
- Storage
- 960 GB
- Colour
- Black, Silver
- Processor manufacturer
- AMD
- On-board graphics card
- Yes
- Brand
- bluechip
- Category
- Server
- Model
- SERVERline R31310r
- Part number
- 850736
- EAN / UPC
- 4250749712573
- Also known as
- bluechip SERVERline R31310r 1 HE Rack, AMD EPYC™ 4124P Prozessor / bis zu 5.10 GHz, TPM-Modul, 16 GB DDR5, 960 GB SSD, 2 x RJ45 (1 Gb/s)
Specifications
55 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Processor generation | EPYC 4004 Series |
| Processor model | 4124P |
| Processor frequency | 3.8 GHz |
| Processor boost frequency | 5.1 GHz |
| Processor cores | 4 |
| Processor cache | 16 MB |
| Motherboard chipset | AMD B650E |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 65 W |
| Processor socket | Socket AM5 |
| Processor threads | 8 |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR5-SDRAM |
| Buffered memory type | Unregistered (unbuffered) |
| ECC | Yes |
| Memory clock speed | 5200 MHz |
| Memory slots | 4x DIMM |
| Maximum internal memory | 192 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 960 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 960 GB |
| SSD interface | SATA III |
| SSD size | 2.5" |
| RAID support | No |
| Hot-swap | Yes |
| Internal drive bays | 4 |
| Optical drive type | No |
| Supported storage drive interfaces | SAS, Serial ATA |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Aspeed |
| On-board graphics card model | Aspeed AST2600 |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I210 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 5.x) slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black, Silver |
Performance
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 750 W |
Certificates
| Specification | Value |
|---|---|
| 80 PLUS certification | 80 PLUS Platinum |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 438 mm |
| Depth | 676 mm |
| Height | 43.5 mm |
Technical details
| Specification | Value |
|---|---|
| Supported storage drives form factor (internal) | 2.5" / 3.5" |
Other features
| Specification | Value |
|---|---|
| Motherboard manufacturer | ASRock Rack B650D4U incl. TPM module |
