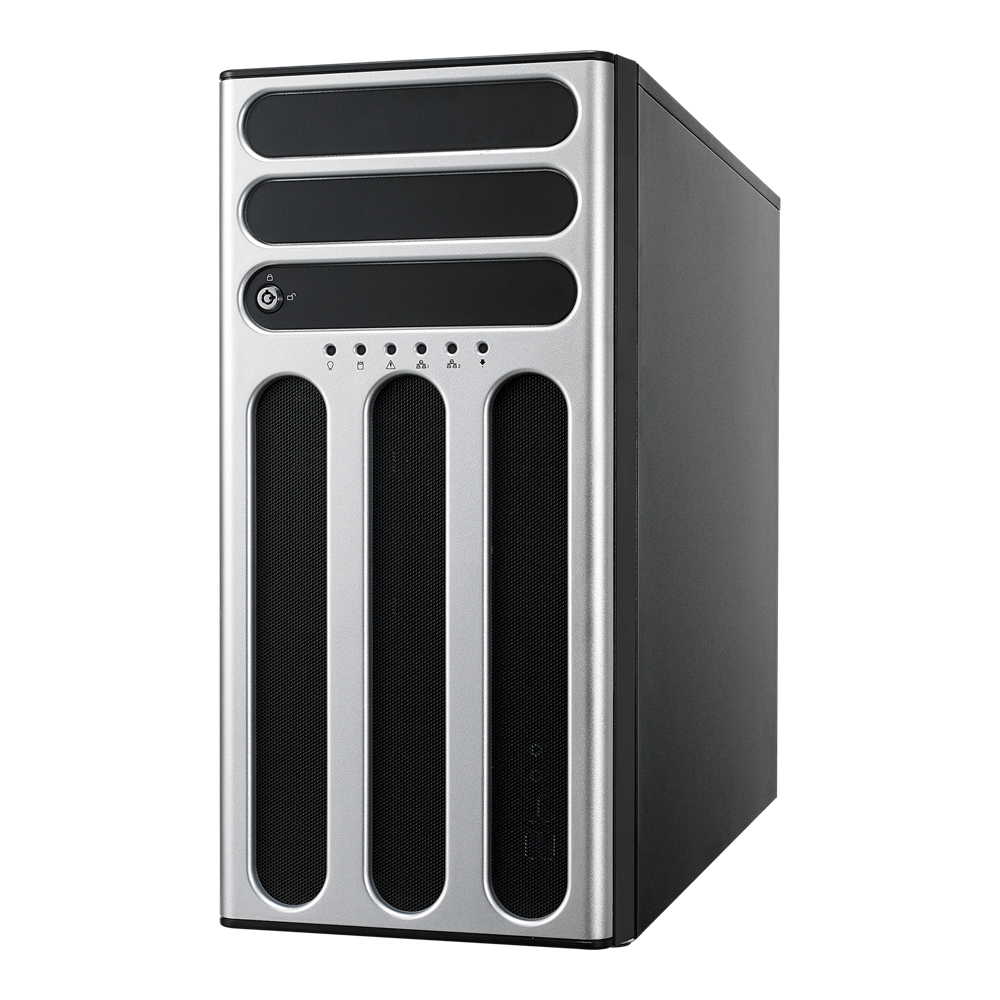

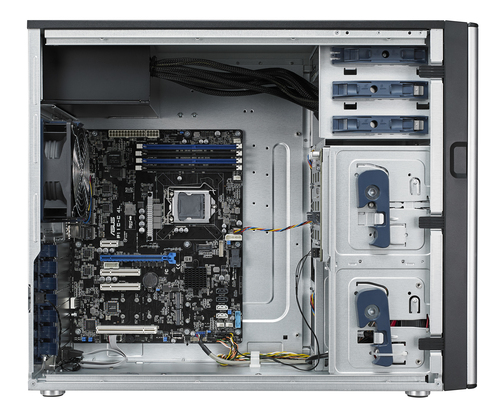

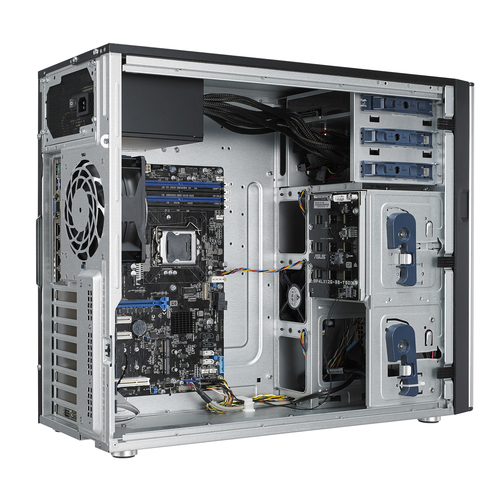

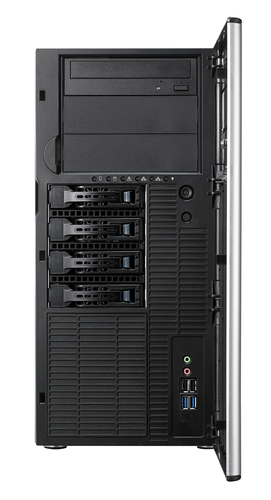

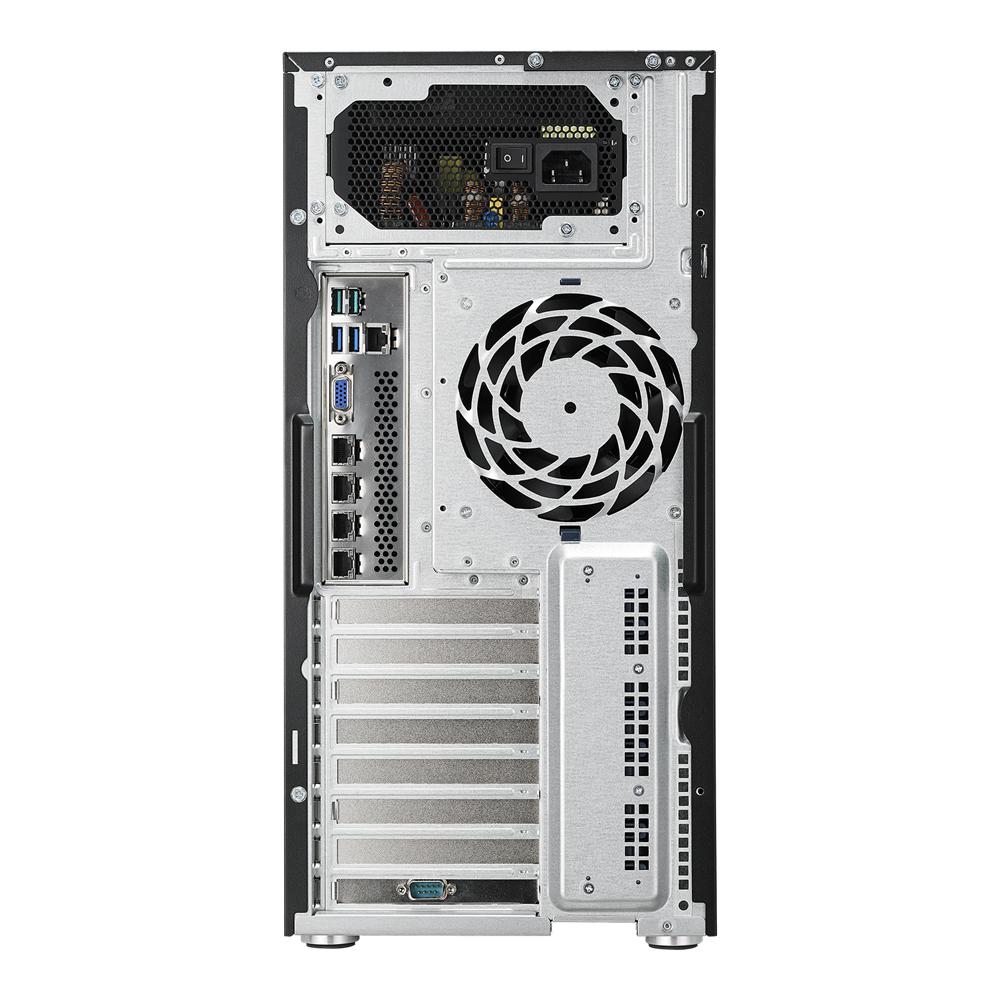

TS300-E10-PS4 server
1 TB Tower Intel Xeon E E-2224 3.4 GHz 8 GB DDR4-SDRAM 500 W
Model TS300-E10-PS4Part no. 90SF00S1-M01570EAN 4711081199045
61 specifications
- ProcessorIntel Xeon E
- Memory8 GB
- Storage1 TB
- OSNo
- Weight15 kg
- ColourBlack
Overview
- Processor
- Intel Xeon E
- Memory
- 8 GB
- Storage
- 1 TB
- OS
- No
- Weight
- 15 kg
- Colour
- Black
- Brand
- ASUS
- Category
- Server
- Model
- TS300-E10-PS4
- Part numbers
- 90SF00S1-M01570, 90SF00S1-M00680
- EAN / UPC
- 4711081199045
- Also known as
- ASUS TS300-E10-PS4 server 1 TB Tower Intel Xeon E E-2224 3.4 GHz 8 GB DDR4-SDRAM 500 W
Specifications
61 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2224 |
| Processor frequency | 3.4 GHz |
| Processor boost frequency | 4.6 GHz |
| Processor cache | 8 MB |
| Motherboard chipset | Intel C246 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Idle States | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 4x DIMM |
| Maximum internal memory | 128 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| HDD capacity | 1 TB |
| HDD interface | SATA |
| HDD size | 3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Number of 5.25" bays | 4 |
| Internal drive bays | 4 x 3.5"/2.5" |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Aspeed AST2500 |
| Maximum graphics card memory | 64 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel® I210-AT |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Black |
| Rack mounting | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 500 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 20 - 90% |
Certificates
| Specification | Value |
|---|---|
| Certification | BSMI, CE |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84714100 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 217.5 mm |
| Depth | 445 mm |
| Height | 545 mm |
| Weight | 15 kg |
| Package weight | 18.9 kg |
