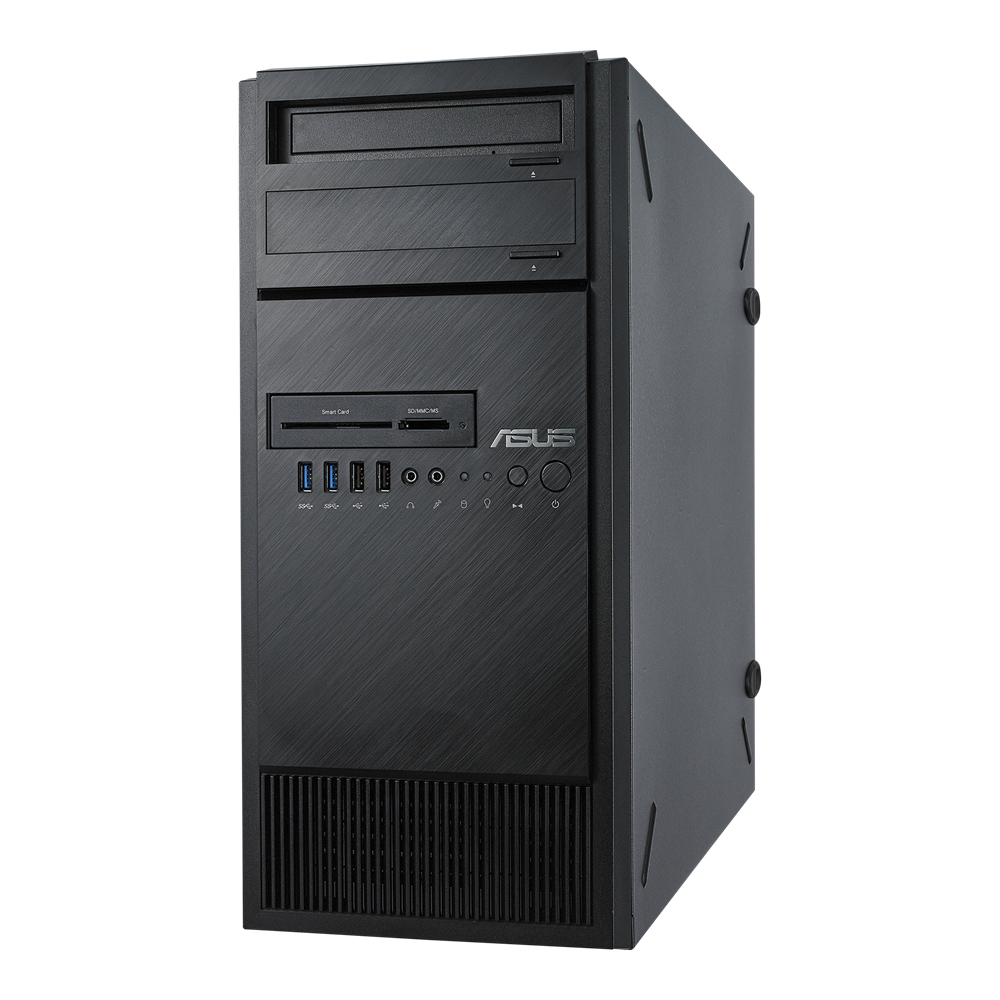

TS100-E10-PI4 server
1 TB Tower Intel Xeon E E-2224 3.4 GHz 8 GB DDR4-SDRAM 500 W
Model TS100-E10-PI4Part no. 90SF00E1-M01580EAN 192876248683
53 specifications
- ProcessorIntel Xeon E
- Memory8 GB
- Storage1 TB
- ColourBlack
- Processor manufacturerIntel
- On-board graphics cardYes
Overview
- Processor
- Intel Xeon E
- Memory
- 8 GB
- Storage
- 1 TB
- Colour
- Black
- Processor manufacturer
- Intel
- On-board graphics card
- Yes
- Brand
- ASUS
- Category
- Server
- Model
- TS100-E10-PI4
- Part number
- 90SF00E1-M01580
- EAN / UPC
- 192876248683
- Also known as
- ASUS TS100-E10-PI4 server 1 TB Tower Intel Xeon E E-2224 3.4 GHz 8 GB DDR4-SDRAM 500 W
Specifications
53 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2224 |
| Processor frequency | 3.4 GHz |
| Processor boost frequency | 4.6 GHz |
| Processor cache | 8 MB |
| Motherboard chipset | Intel C242 |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Idle States | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 4x DIMM |
| Maximum internal memory | 128 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| HDD capacity | 1 TB |
| HDD interface | SATA |
| HDD size | 3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Number of 5.25" bays | 2 |
| Internal drive bays | 3 x 3.5", 1 x 2.5" |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Aspeed AST2510 |
| Maximum graphics card memory | 64 MB |
Network
| Specification | Value |
|---|---|
| LAN controller | Intel® I210-AT, Intel® I219-LM |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| PS/2 ports quantity | 1 |
| Total number of SATA connectors | 6 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI slots | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Black |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 500 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 190 mm |
| Depth | 423 mm |
| Height | 435 mm |
