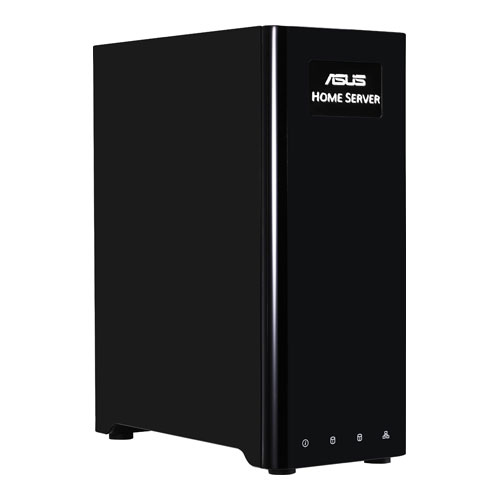

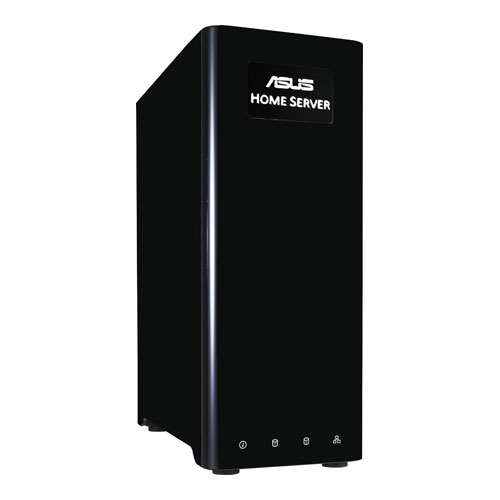

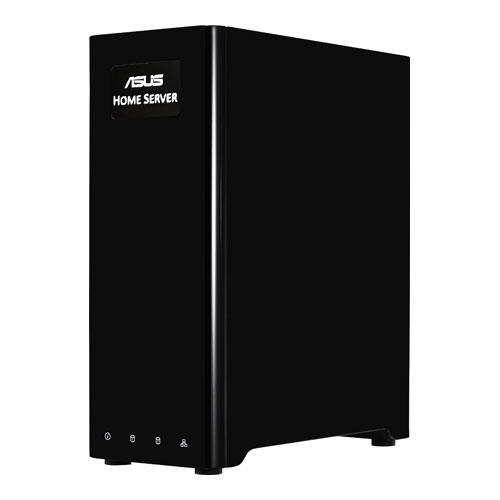

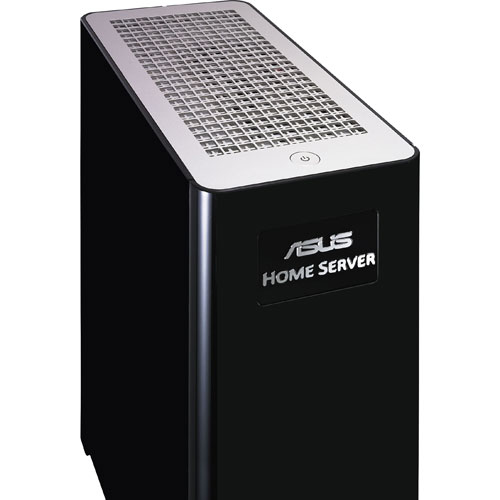

ASUS TS mini
Model TS miniPart no. 90S-S5L001C2ZEAN 4719543087756
41 specifications
- ProcessorIntel Atom®
- Memory2 GB
- Storage2 TB
- OSWindows Home Server
- Weight2.7 kg
- Network readyYes
Overview
- Processor
- Intel Atom®
- Memory
- 2 GB
- Storage
- 2 TB
- OS
- Windows Home Server
- Weight
- 2.7 kg
- Network ready
- Yes
- Brand
- ASUS
- Category
- Server
- Model
- TS mini
- Part number
- 90S-S5L001C2Z
- EAN / UPC
- 4719543087756
- Also known as
- ASUS TS mini server 2 TB Tower Intel Atom® 1.66 GHz 2 GB DDR2-SDRAM 90 W Windows Home Server
Specifications
41 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel Atom® |
| Processor frequency | 1.66 GHz |
| Processor cores | 1 |
| Processor cache | 0.512 MB |
| Number of processors installed | 1 |
| Processor cache type | L2 |
| Processor front side bus | 667 MHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR2-SDRAM |
| Memory clock speed | 800 MHz |
| Memory layout (slots x size) | 1 x 2 GB |
| Maximum internal memory | 2 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |
| Number of HDDs installed | 2 |
| HDD interface | Serial ATA |
| HDD size | 3.5" |
| Number of HDDs supported | 2 |
| RAID support | No |
| Hot-swap | No |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Network ready | Yes |
| Supported network protocols | 10/100/1000 Base T(X) |
| Ethernet LAN | Yes |
| Networking features | Gigabit Ethernet |

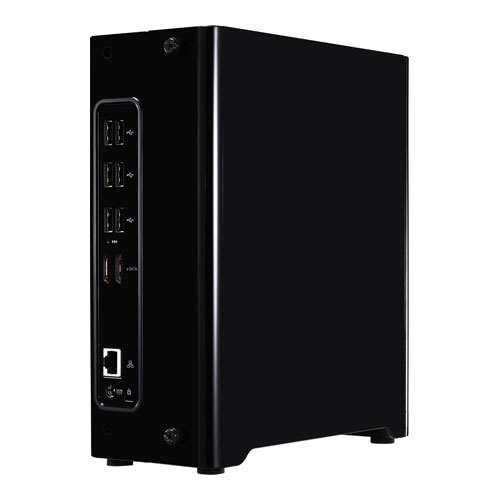

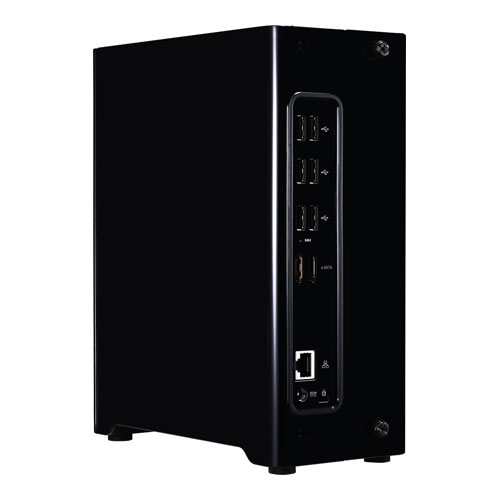

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 6 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Home Server |
| Compatible operating systems | Windows Home Server |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Number of power supply units | 1 |
| Power supply | 90 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 96 mm |
| Depth | 204 mm |
| Height | 245 mm |
| Weight | 2.7 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 96 x 204 x 245 mm |
| I/O ports | 2 x eSATA |
What people say
Reviews & ratings
ASUS TS mini
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS TS mini
All server comparisons- ASUS TS mini vsASUS RS704D-E6/PS8 server Rack (1U) DDR3-SDRAMCompare specs
- ASUS TS mini vsASUS TS100-E6/PI4 server Tower DDR3-SDRAMCompare specs
- ASUS TS mini vsASUS RS300-E6/PS4 server Rack Intel® Xeon® DDR3-SDRAMCompare specs
- ASUS TS mini vsASUS RS120-E5/PA2 Multi-Core Cost Effective ServerCompare specs

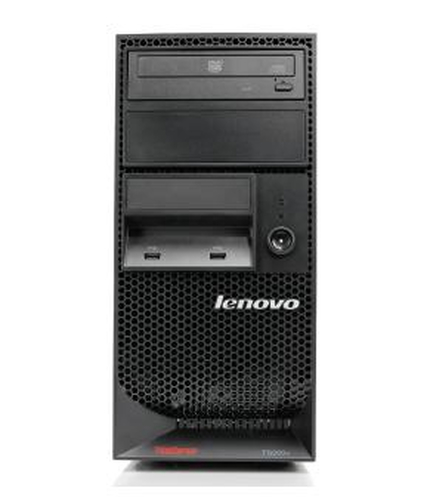

- ASUS TS mini vsLenovo ThinkServer TS200v serverCompare specs

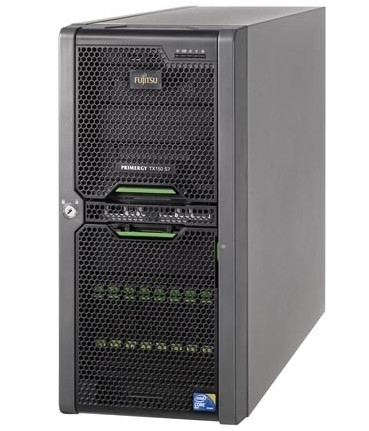

- ASUS TS mini vsFujitsu TX150 S7Compare specs

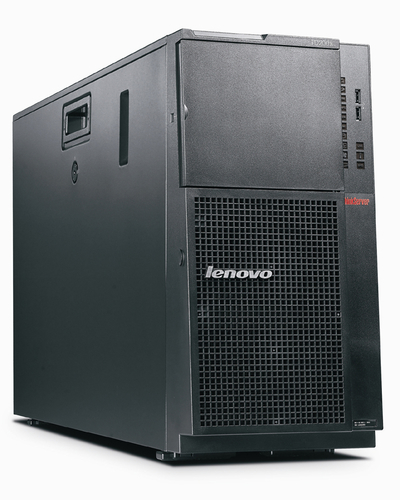

- ASUS TS mini vsLenovo ThinkServer TD200x (382241G) TowerCompare specs

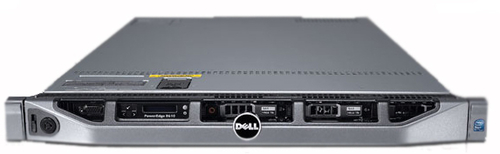

- ASUS TS mini vsDell PowerEdge R610Compare specs
