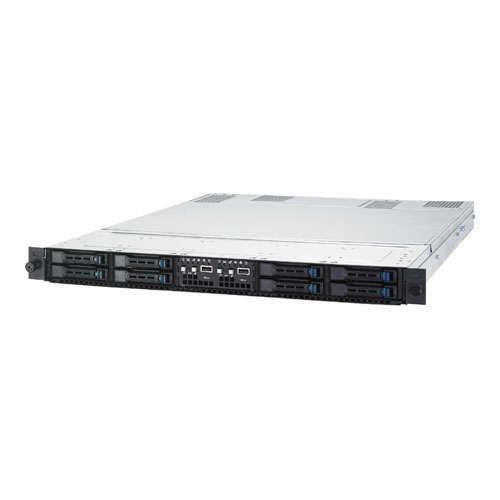

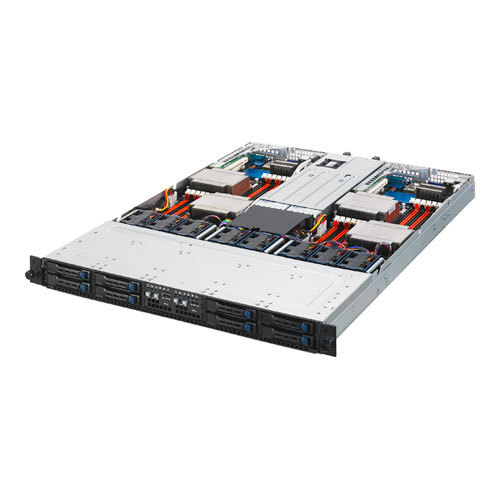

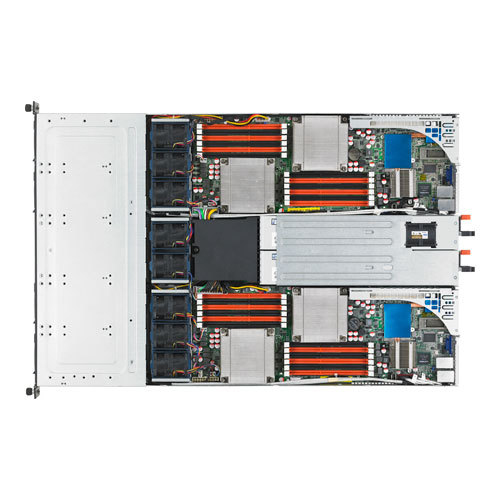

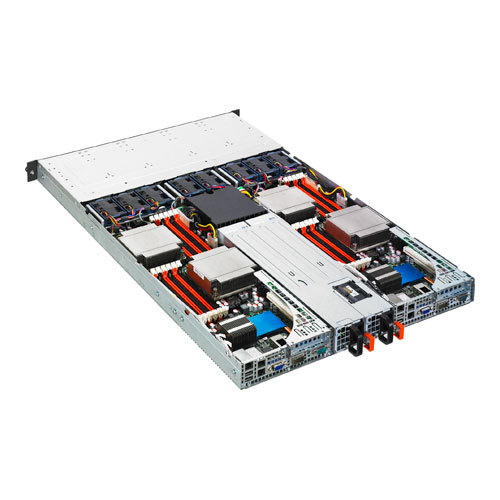

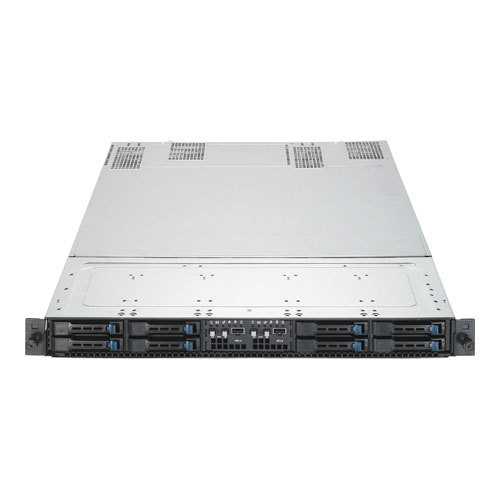

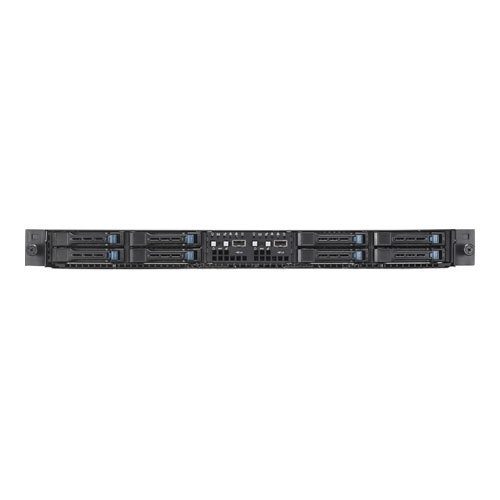

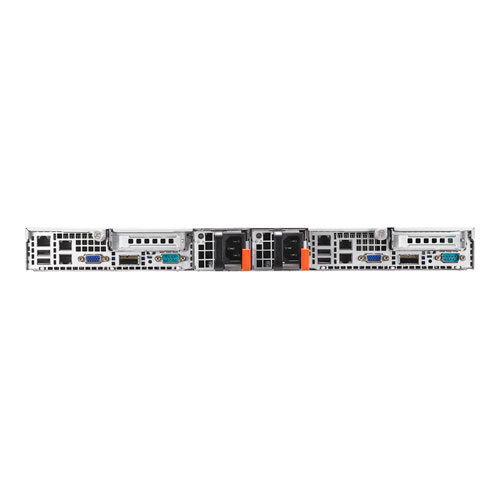

ASUS RS704D-E6/PS8 server Rack (1U) DDR3-SDRAM
770 W
Model RS704D-E6/PS8Part no. 90S-S60001CEZEAN 4719543096529
60 specifications
- Weight18 kg
- Number of processors installed1
- Internal memory typeDDR3-SDRAM
- HDD interfaceSerial ATA
- Ethernet LANYes
- Ethernet LAN (RJ-45) ports3
Overview
- Weight
- 18 kg
- Number of processors installed
- 1
- Internal memory type
- DDR3-SDRAM
- HDD interface
- Serial ATA
- Ethernet LAN
- Yes
- Ethernet LAN (RJ-45) ports
- 3
- Brand
- ASUS
- Category
- Server
- Model
- RS704D-E6/PS8
- Part number
- 90S-S60001CEZ
- EAN / UPC
- 4719543096529
- Also known as
- ASUS RS704D-E6/PS8 server Rack (1U) DDR3-SDRAM 770 W
Specifications
60 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Number of processors installed | 1 |
| System bus rate | 6.4 GT/s |
| Bus type | FSB |
| ECC supported by processor | No |
| Idle States | Yes |
| Physical Address Extension (PAE) | 32 bit |
| Processor code | SL8SV |
| Processor socket | Socket B (LGA 1366) |
| Thermal Monitoring Technologies | No |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory type | DDR3-SDRAM |
| Memory slots | 12x DIMM |
| Maximum internal memory | 48 GB |
Storage
| Specification | Value |
|---|---|
| HDD interface | Serial ATA |
| HDD size | 2.5" |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 1, 10 |
| Hot-swap | Yes |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel® 82574L |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| USB 2.0 ports quantity | 3 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 2008/2003 RedHat Linux AS5.0/SuSE Linux 10 |
Processor special features
| Specification | Value |
|---|---|
| Intel Clear Video Technology | No |
| Intel Dual Display Capable Technology | No |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Power supply | 770 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
Certificates
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3ab/802.3u/802.3 |
| Safety | CE, EN55022, 89/366/EEC, TUV |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 444 mm |
| Depth | 43.4 mm |
| Height | 686 mm |
| Weight | 18 kg |
Other features
| Specification | Value |
|---|---|
| Graphics card | AST2050 |
| Non-operating relative humidity (non-condensing) | 20 - 90% |
What people say
Reviews & ratings
ASUS RS704D-E6/PS8 server Rack (1U) DDR3-SDRAM
No reviews yet
Be the first to tell others how ASUS RS704D-E6/PS8 server Rack (1U) DDR3-SDRAM works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS RS704D-E6/PS8 server Rack (1U) DDR3-SDRAM
All server comparisons- ASUS RS704D-E6/PS8 server Rack (1U) DDR3-SDRAM vsASUS TS100-E6/PI4 server Tower DDR3-SDRAMCompare specs
- ASUS RS704D-E6/PS8 server Rack (1U) DDR3-SDRAM vsASUS TS700-E4/RX8 server Tower DDR2-SDRAMCompare specs
- ASUS RS704D-E6/PS8 server Rack (1U) DDR3-SDRAM vsASUS TS miniCompare specs
- ASUS RS704D-E6/PS8 server Rack (1U) DDR3-SDRAM vsASUS RS300-E6/PS4 server Rack Intel® Xeon® DDR3-SDRAMCompare specs

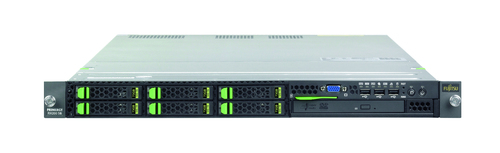

- ASUS RS704D-E6/PS8 server Rack (1U) DDR3-SDRAM vsFujitsu PRIMERGY RX200 S6Compare specs

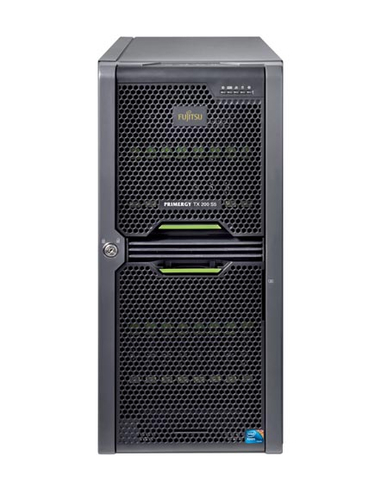

- ASUS RS704D-E6/PS8 server Rack (1U) DDR3-SDRAM vsFujitsu PRIMERGY TX200 S5FCompare specs

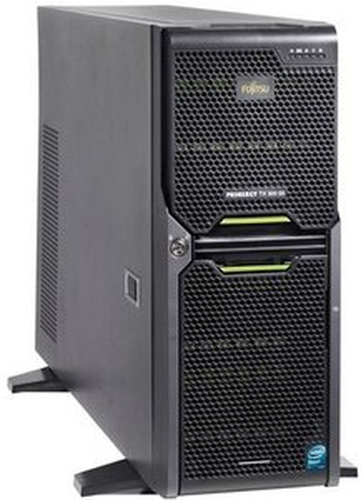

- ASUS RS704D-E6/PS8 server Rack (1U) DDR3-SDRAM vsFujitsu TX300 S6Compare specs

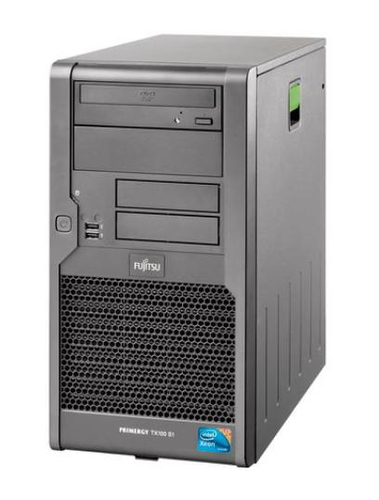

- ASUS RS704D-E6/PS8 server Rack (1U) DDR3-SDRAM vsFujitsu TX100 S1Compare specs
