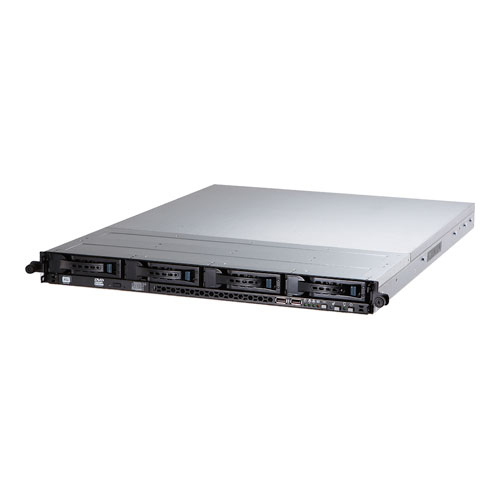

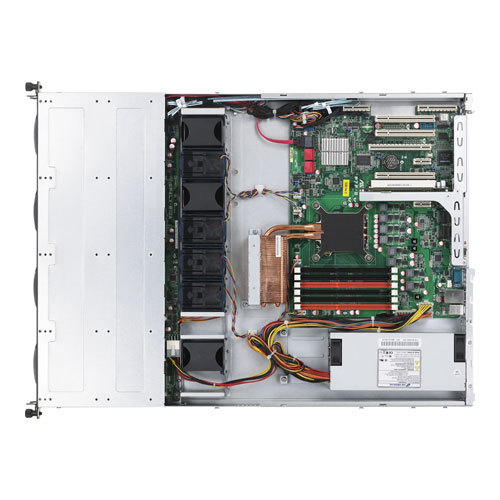

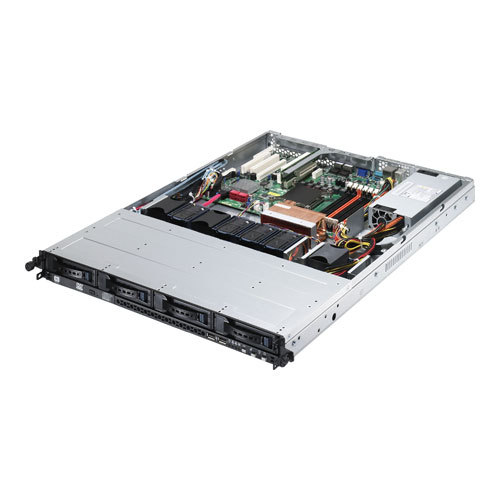

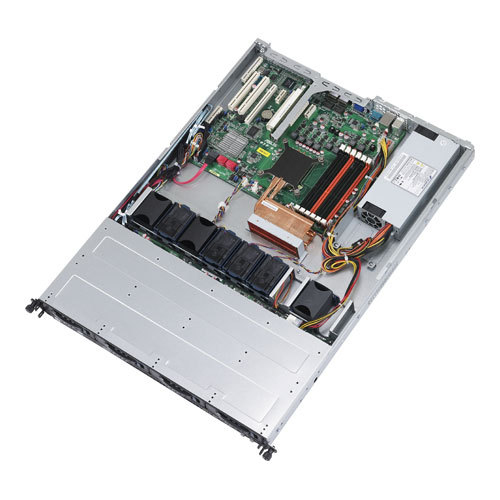

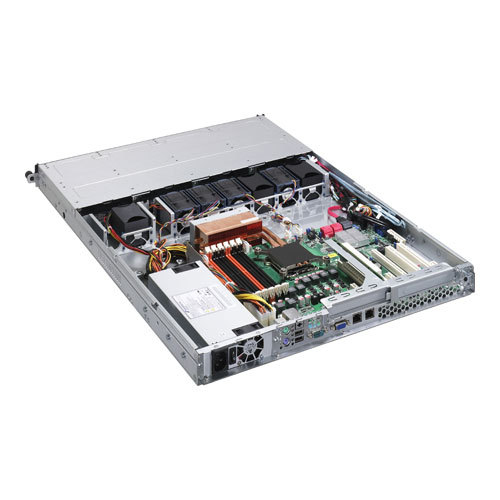

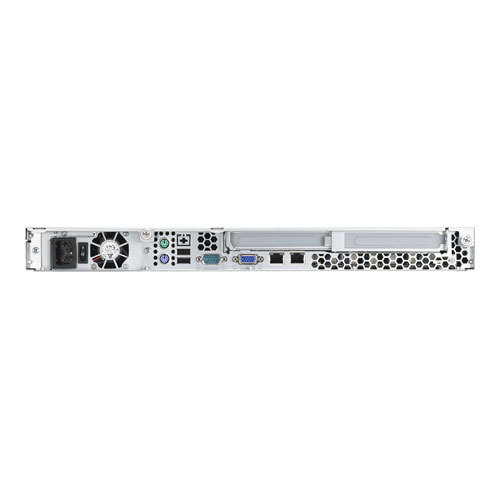

ASUS RS300-E6/PS4 server Rack Intel® Xeon® DDR3-SDRAM
350 W
Model RS300-E6/PS4Part no. 90S5IA0000C120UEZEAN 4719543077658
37 specifications
- ProcessorIntel® Xeon®
- Weight15 kg
- Internal memory typeDDR3-SDRAM
- HDD interfaceSerial ATA
- Maximum graphics card memory8 MB
- Ethernet LANYes
Overview
- Processor
- Intel® Xeon®
- Weight
- 15 kg
- Internal memory type
- DDR3-SDRAM
- HDD interface
- Serial ATA
- Maximum graphics card memory
- 8 MB
- Ethernet LAN
- Yes
- Brand
- ASUS
- Category
- Server
- Model
- RS300-E6/PS4
- Part number
- 90S5IA0000C120UEZ
- EAN / UPC
- 4719543077658
- Also known as
- ASUS RS300-E6/PS4 server Rack Intel® Xeon® DDR3-SDRAM 350 W
Specifications
37 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® |
| Motherboard chipset | Intel® 3420 |
| Number of processors installed | 1 |
| Processor socket | LGA 1156 (Socket H) |
Memory
| Specification | Value |
|---|---|
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Memory slots | 6x DIMM |
| Maximum internal memory | 32 GB |
Storage
| Specification | Value |
|---|---|
| HDD interface | Serial ATA |
| HDD size | 3.5" |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 1, 10 |
| Hot-swap | Yes |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 8 MB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel® 82574L |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| USB 2.0 ports quantity | 4 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2008/2003 RedHat Linux AS5.0/SuSE Linux 10 |
Power
| Specification | Value |
|---|---|
| Power supply | 350 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
Certificates
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3ab/802.3u/802.3 |
| Safety | CE, EN55022, 89/366/EEC, TUV |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 444 mm |
| Depth | 43.4 mm |
| Height | 615 mm |
| Weight | 15 kg |
Other features
| Specification | Value |
|---|---|
| Graphics card | AST2050 |
| Non-operating relative humidity (non-condensing) | 20 - 90% |
