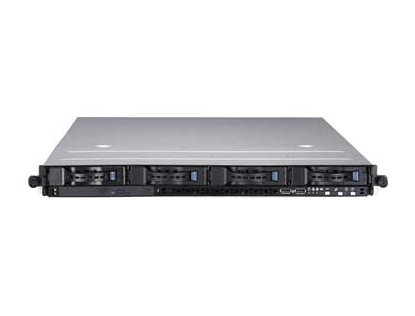

ASUS RS160-E3/PS4 server Rack (1U) Intel® Xeon®
3.6 GHz DDR2-SDRAM
Model RS160-E3/PS4Part no. 90S-S38001CE
29 specifications
- ProcessorIntel® Xeon®
- Weight12.8 kg
- Internal memory typeDDR2-SDRAM
- Number of HDDs installed4
- Ethernet LAN (RJ-45) ports2
- Chassis typeRack (1U)
Overview
- Processor
- Intel® Xeon®
- Weight
- 12.8 kg
- Internal memory type
- DDR2-SDRAM
- Number of HDDs installed
- 4
- Ethernet LAN (RJ-45) ports
- 2
- Chassis type
- Rack (1U)
- Brand
- ASUS
- Category
- Server
- Model
- RS160-E3/PS4
- Part number
- 90S-S38001CE
- Also known as
- ASUS RS160-E3/PS4 server Rack (1U) Intel® Xeon® 3.6 GHz DDR2-SDRAM
Specifications
29 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® |
| Processor frequency | 3.6 GHz |
| Processor cache | 2 MB |
| Motherboard chipset | Intel® E7520 |
| Processor cache type | L2 |
Memory
| Specification | Value |
|---|---|
| Internal memory type | DDR2-SDRAM |
| Maximum internal memory | 16 GB |
Storage
| Specification | Value |
|---|---|
| Number of HDDs installed | 4 |
| HDD interface | SCSI |
| RAID levels | 1, 0+1 |
Network
| Specification | Value |
|---|---|
| Networking features | 2 x Broadcom BCM5721 PCI-E Gb LAN |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 4 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Expansion slots | 1 x 64-bit PCI-X 1 x 64-bit PCI-X |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
Performance
| Specification | Value |
|---|---|
| Management platform | ASWM2.0 |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2003 w/SP1 Windows 2000 Server w/SP4 Red Hat Linux AS3.0 w/UP5 32bit Red Hat Linux AS4.0 32/64bit SuSE Server 9.0 32/64bit |
| Bundled software | CA eTrust 7.1 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 650 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
Certificates
| Specification | Value |
|---|---|
| Safety | TUV / CE, EN55022 / EEC |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 12.8 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 670 x 445 x 43.6 mm |
| Graphics card | Rage XL |
| Hot-swap HDD bays | 4 x SCSI HDDs |
| Storage drive controller | Adaptec AIC-7902 |
