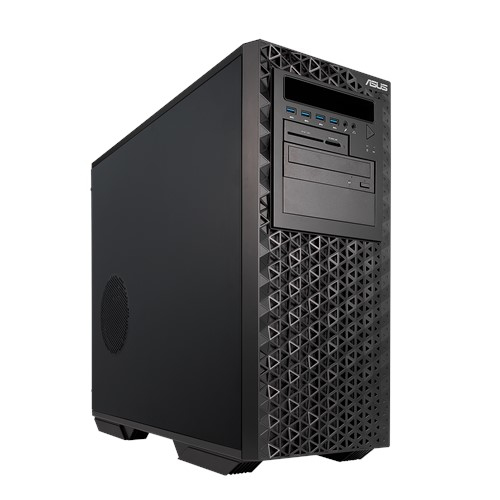

E900 G4
Model E900 G4Part no. 90SF00L1-M01430EAN 4718017536165
86 specifications
- ProcessorIntel Xeon Silver
- Memory32 GB
- Storage2.51 TB
- Weight18.3 kg
- ColourBlack
- Processor manufacturerIntel
Overview
- Processor
- Intel Xeon Silver
- Memory
- 32 GB
- Storage
- 2.51 TB
- Weight
- 18.3 kg
- Colour
- Black
- Processor manufacturer
- Intel
- Brand
- ASUS
- Category
- Server
- Model
- E900 G4
- Part number
- 90SF00L1-M01430
- EAN / UPC
- 4718017536165
- Also known as
- ASUS E900 G4 server 2.51 TB Mini Tower Intel Xeon Silver 4214 2.2 GHz 32 GB DDR4-SDRAM 4000 W
Specifications
86 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon Silver |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor model | 4214 |
| Processor frequency | 2.2 GHz |
| Processor boost frequency | 3.2 GHz |
| Processor cores | 12 |
| Processor cache | 16.5 MB |
| Motherboard chipset | Intel® C621 |
| Number of processors installed | 2 |
| Thermal Design Power (TDP) | 85 W |
| Processor cache type | Smart Cache |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| Maximum internal memory supported by processor | 1 TB |
| Maximum number of PCI Express lanes | 48 |
| Memory clock speeds supported by processor | 2400 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Processor codename | Cascade Lake |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor package size | 76.0 x 56.5 mm |
| Processor socket | LGA 3647 (Socket P) |
| Processor threads | 24 |
| Scalability | 2S |
| Supported instruction sets | AVX-512 |
| Tcase | 77 °C |
| Tjunction | 100 °C |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 12 |
| Maximum internal memory | 1.53 TB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2.51 TB |
| HDD capacity | 2 TB |
| HDD interface | Serial ATA III |
| HDD speed | 7200 RPM |
| HDD size | 2.5" |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 3.0 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Optical drive type | DVD-RW |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics memory type | GDDR6 |
| Discrete graphics card memory | 8 GB |
| Number of discrete graphics cards | 4 |
| On-board graphics card model | Not available |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Intel I210 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| PS/2 ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 3.x) slots | 7 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini Tower |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2016 64 bit Windows 10 |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 193385 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 4000 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 20 - 90% |
Certificates
| Specification | Value |
|---|---|
| Certification | BSMI, CE, FCC(Class A) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 532 mm |
| Depth | 283 mm |
| Height | 582 mm |
| Weight | 18.3 kg |
| Package weight | 23.1 kg |
