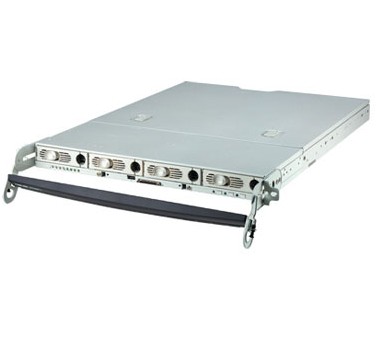

AP1600R-S5, Dual Xeon Server
Model AP1600R-S5, Dual Xeon ServerPart no. 90S0XA0000
21 specifications
- ProcessorIntel® Xeon®
- Weight13 kg
- Internal memory typeDDR-SDRAM
- Hot-swapYes
- Expansion slots2 x 64bit PCI-X
- Power supply350 W
Overview
- Processor
- Intel® Xeon®
- Weight
- 13 kg
- Internal memory type
- DDR-SDRAM
- Hot-swap
- Yes
- Expansion slots
- 2 x 64bit PCI-X
- Power supply
- 350 W
- Brand
- ASUS
- Category
- Server
- Model
- AP1600R-S5, Dual Xeon Server
- Part number
- 90S0XA0000
- Also known as
- ASUS AP1600R-S5, Dual Xeon server Intel® Xeon® 2.8 GHz DDR-SDRAM 350 W
Specifications
21 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel® Xeon® |
| Processor upgrade | 3006 MHz |
| Processor frequency | 2.8 GHz |
| Processor front side bus | 533 MHz |
Memory
| Specification | Value |
|---|---|
| Internal memory type | DDR-SDRAM |
Storage
| Specification | Value |
|---|---|
| Hot-swap | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Expansion slots | 2 x 64bit PCI-X |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 2000 Server SP3 Windows 2000 Advanced Server SP3 RedHat Linux 8 RedHat Linux 7.3 RedHat Linux 7.2 SuSE Linux 8 Caldera Open Linux 3.1 Novell Netware 6 SP2 Caldera Open Unix 8 Windows Server2003 Enterprise Ed. RC2 Windows NT 4 Server SP6 |
| Bundled software | Management software: ASMA + ASWM TrendMicro ServerProtect anti-virus |
Power
| Specification | Value |
|---|---|
| Power supply | 350 W |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 20 - 90% |
Certificates
| Specification | Value |
|---|---|
| Safety | TUV / CE, EN55022 compliance to EU Directive 89 / 366/ EEC |
| Electromagnetic emissions | CE, EN55022 & EN55024 |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 13 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 619.5 x 427.6 x 43 mm |
| Recommended operating temperature range (T-T) | 10 - 35 °C |
| Storage drive controller | SCSI: LSI 53C1030 |
| I/O ports | 1x External Serial Port 3x External USB Port 1x VGA Port 3x RJ-45 |
| Drive bays | 4 x SCSI HDDs |
| Drive bays size | 8.89 cm (3.5") |
