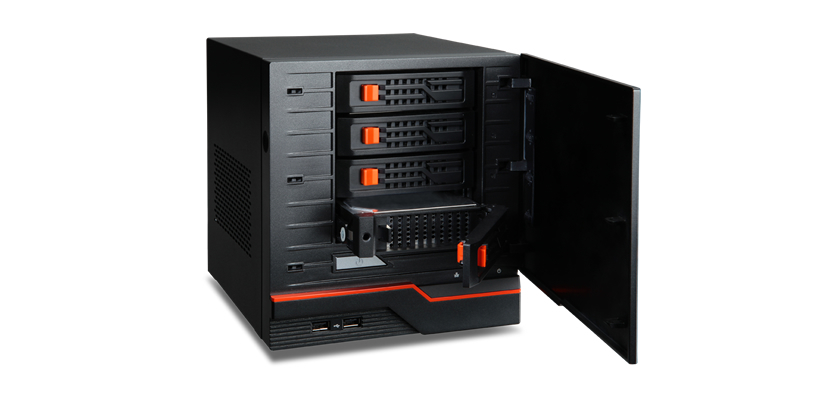

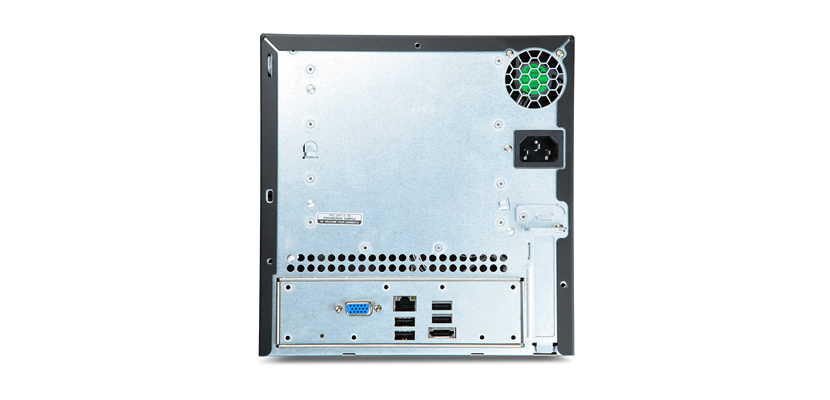

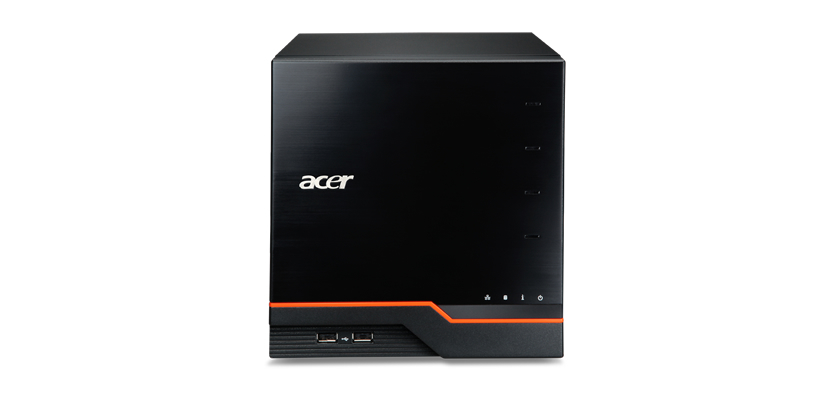

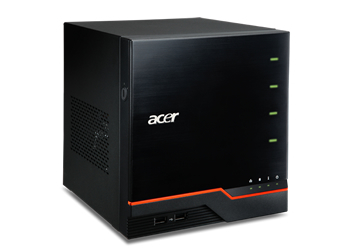

Acer AC TT.R7L00.004 server
1 TB Intel® Xeon® E3 Family E3-1260L 2.4 GHz 4 GB DDR3-SDRAM 200 W
Model TT.R7L00.004EAN 4717276551773
110 specifications
- ProcessorIntel® Xeon® E3 Family
- Memory4 GB
- Storage1 TB
- OSNo
- Processor manufacturerIntel
- Maximum storage capacity6 TB
Overview
- Processor
- Intel® Xeon® E3 Family
- Memory
- 4 GB
- Storage
- 1 TB
- OS
- No
- Processor manufacturer
- Intel
- Maximum storage capacity
- 6 TB
- Brand
- Acer
- Category
- Server
- Model
- TT.R7L00.004
- Part number
- TT.R7L00.004
- EAN / UPC
- 4717276551773
- Also known as
- Acer AC TT.R7L00.004 server 1 TB Intel® Xeon® E3 Family E3-1260L 2.4 GHz 4 GB DDR3-SDRAM 200 W
Specifications
110 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E3 Family |
| Processor model | E3-1260L |
| Processor frequency | 2.4 GHz |
| Processor boost frequency | 3.3 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Motherboard chipset | Intel® C206 |
| Memory channels supported by processor | Dual |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 45 W |
| Processor cache type | Smart Cache |
| System bus rate | 5 GT/s |
| Bus type | DMI |
| CPU multiplier (bus/core ratio) | 24 |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 32 GB |
| Maximum number of PCI Express lanes | 20 |
| Maximum number of SMP processors | 1 |
| Memory bandwidth supported by processor (max) | 21 GB/s |
| Memory clock speeds supported by processor | 1066,1333 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Processor codename | Sandy Bridge |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon E3-1200 |
| Processor socket | LGA 1155 (Socket H2) |
| Processor threads | 8 |
| Stepping | D2 |
| Supported instruction sets | AVX, SSE4.1, SSE4.2 |
| Tcase | 58.6 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| Memory clock speed | 1333 MHz |
| Memory layout (slots x size) | 2 x 2 GB |
| Memory slots | 2 |
| Maximum internal memory | 16 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 6 TB |
| Total storage capacity | 1 TB |
| Number of HDDs installed | 2 |
| HDD capacity | 500 GB |
| HDD interface | Serial ATA |
| HDD speed | 7200 RPM |
| HDD size | 3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Hot-swap | Yes |
| Optical drive type | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card family | Intel® HD Graphics |
| On-board graphics card model | Intel® HD Graphics 2000 |
| Number of displays supported (on-board graphics) | 2 |
| On-board graphics card base frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 1250 MHz |
Network
| Specification | Value |
|---|---|
| Network ready | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 6 |
| PS/2 ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 1 |
| PCI Express slots version | 2.0 |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Windows Small Business Server 2011 Essentials Microsoft Windows Server 2008 Microsoft Windows Server 2008 R2 Red Hat Enterprise Linux 6 SuSE Linux Enterprise Server 11 SP1 |
| Bundled software | Acer Smart Setup |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | Yes |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | Yes |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 52275 |
Power
| Specification | Value |
|---|---|
| Number of power supply units | 1 |
| Power supply | 200 W |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC CE BSMI UL/cUL CB Nemko/GS 80 Plus Bronze |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| Graphics card family | Intel |
| Graphics card memory type | GDDR3 |
| Mac compatibility | No |
