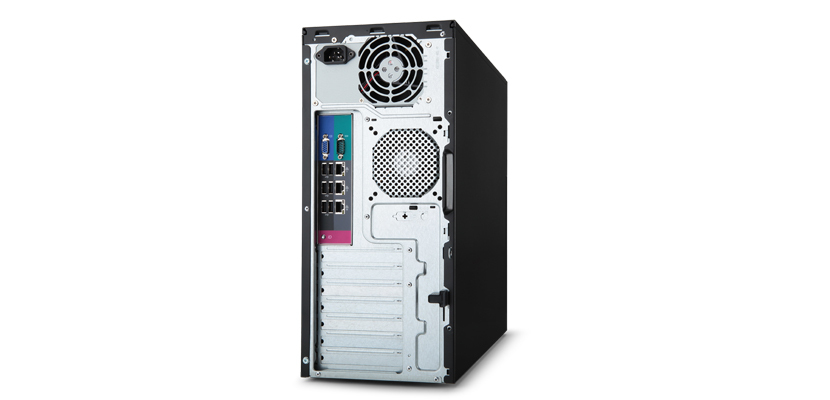

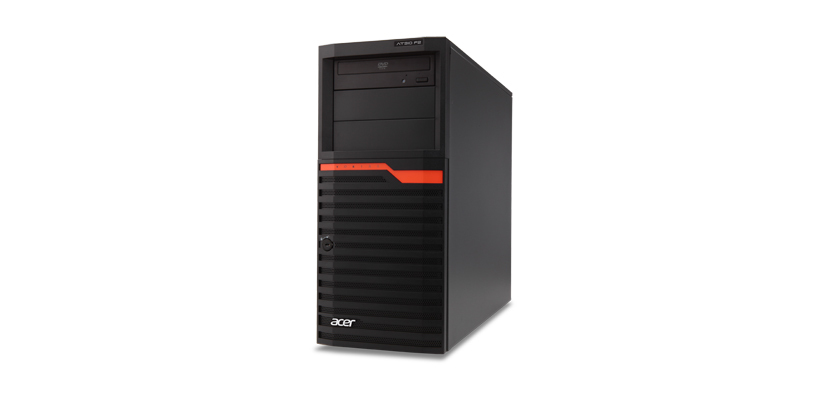

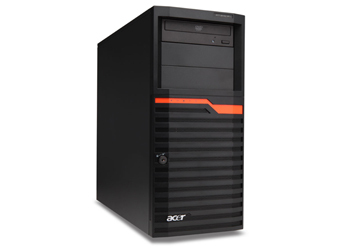

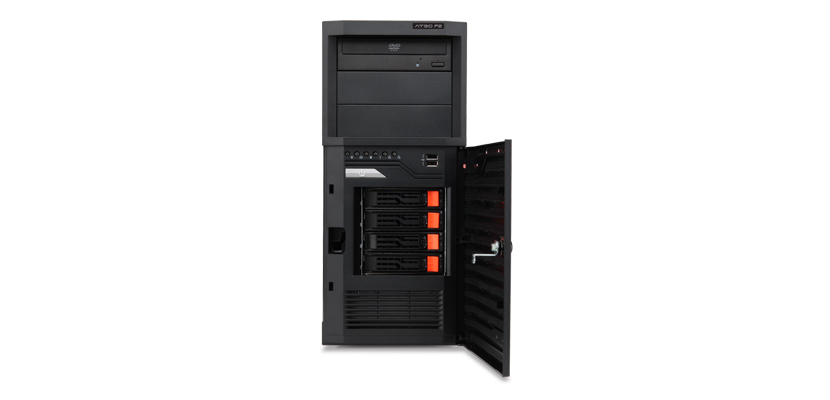

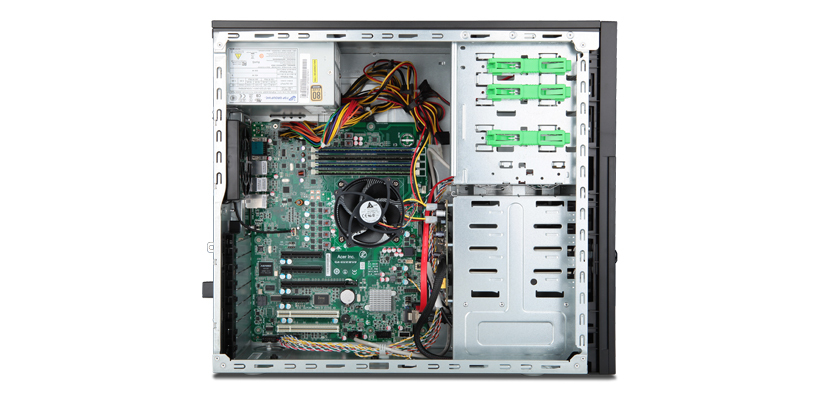

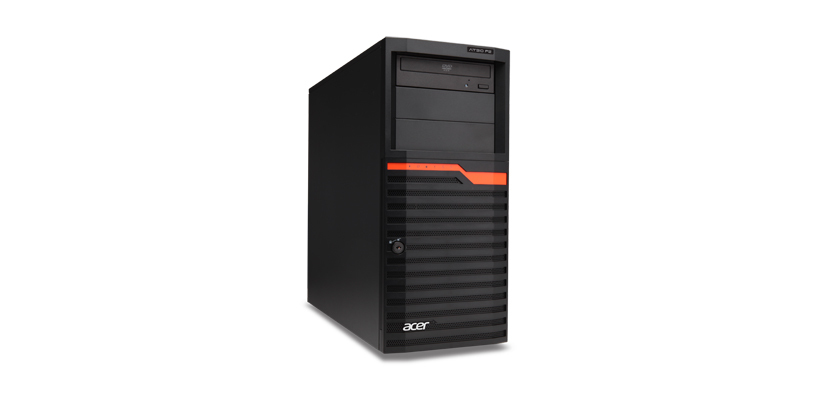

Acer AT ST.R7Z11.008 server

1 TB Tower Intel® Xeon® E3 Family E3-1220 3.1 GHz 4 GB DDR3-SDRAM 450 W

Model ST.R7Z11.008EAN 4712196065553

118 specifications

ProcessorIntel® Xeon® E3 Family
Memory4 GB
Storage1 TB
Energy classB
OSNo
Weight13.6 kg

See all specifications

Overview

Processor: Intel® Xeon® E3 Family
Memory: 4 GB
Storage: 1 TB
Energy class: B
OS: No
Weight: 13.6 kg

Brand: Acer
Category: Server
Model: ST.R7Z11.008
Part number: ST.R7Z11.008
EAN / UPC: 4712196065553
Also known as: Acer AT ST.R7Z11.008 server 1 TB Tower Intel® Xeon® E3 Family E3-1220 3.1 GHz 4 GB DDR3-SDRAM 450 W

Specifications

118 specifications in 16 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E3 Family
Processor model	E3-1220
Processor frequency	3.1 GHz
Processor boost frequency	3.4 GHz
Processor cores	4
Processor cache	8 MB
Motherboard chipset	Intel® C204
Memory channels supported by processor	Dual
Number of processors installed	1
Thermal Design Power (TDP)	80 W
Processor cache type	Smart Cache
System bus rate	5 GT/s
Bus type	DMI
CPU multiplier (bus/core ratio)	31
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	32 GB
Maximum number of PCI Express lanes	20
Maximum number of SMP processors	1
Memory bandwidth supported by processor (max)	21 GB/s
Memory clock speeds supported by processor	1066,1333 MHz
Memory types supported by processor	DDR3-SDRAM
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Xeon E3-1200
Processor socket	LGA 1155 (Socket H2)
Processor threads	4
Supported instruction sets	AVX
Tcase	69.1 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
ECC	Yes
Memory layout (slots x size)	1 x 4 GB
Memory slots	4
Maximum internal memory	16 GB

Storage

Specification	Value
Maximum storage capacity	8 TB
Total storage capacity	1 TB
Number of HDDs installed	2
HDD capacity	500 GB
HDD interface	Serial ATA II, Serial ATA III
HDD speed	7200 RPM
HDD size	3.5"
Number of HDDs supported	6
RAID support	Yes
RAID levels	0, 1, 5, 10
Hot-swap	Yes
Optical drive type	DVD-RW

Graphics

Specification	Value
Maximum graphics card memory	32 MB

Network

Specification	Value
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	3
USB 2.0 ports quantity	8
Serial ports quantity	1
VGA (D-Sub) ports quantity	1

Expansion slots

Specification	Value
PCI Express x1 slots	1
PCI Express x4 slots	2
PCI Express x16 slots	1
PCI Express slots version	2.0
PCI slots	2

Design

Specification	Value
Chassis type	Tower

Software

Specification	Value
Operating system installed	No
Compatible operating systems	Windows Server 2008 Windows Server 2008 R2 Red Hat Enterprise Linux 5/6 Novell SUSE Linux Enterprise Server 10/11
Bundled software	Acer Smart Setup, Acer Smart Manager

Processor special features

Specification	Value
CPU configuration (max)	1
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	52269

Power

Specification	Value
Number of power supply units	1
Power supply	450 W

Certificates

Specification	Value
Energy efficiency class	B
Certification	FCC (Class B) CE (Class B) BSMI (Class B) UL/cUL CB Nemko/GS

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Width	190 mm
Depth	485 mm
Height	420 mm
Weight	13.6 kg

Packaging content

Specification	Value
Cables included	AC
Keyboard included	No
Mouse included	Yes

Other features

Specification	Value
Graphics card	AST2150
Graphics card family	Aspeed
Graphics card memory type	GDDR3
iSCSI support	Yes
