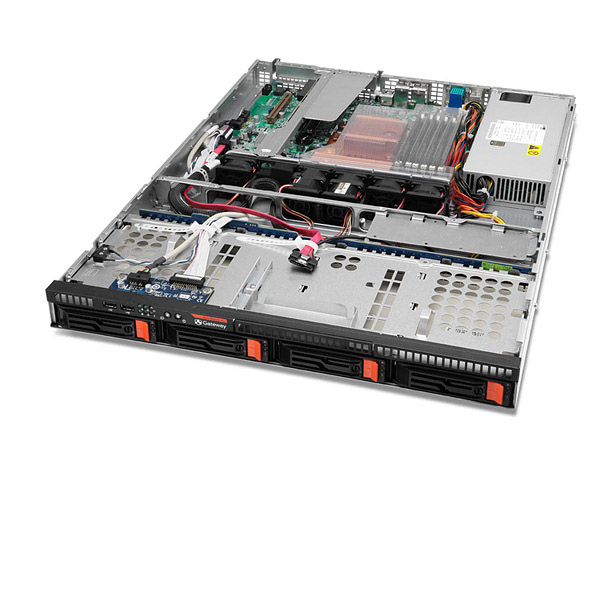

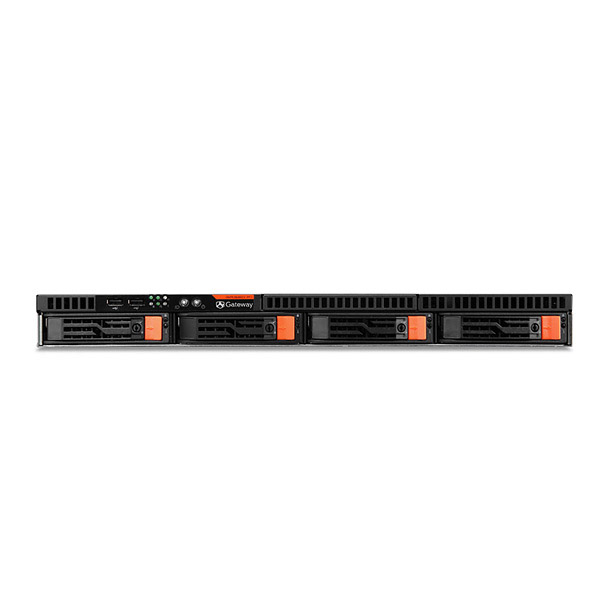

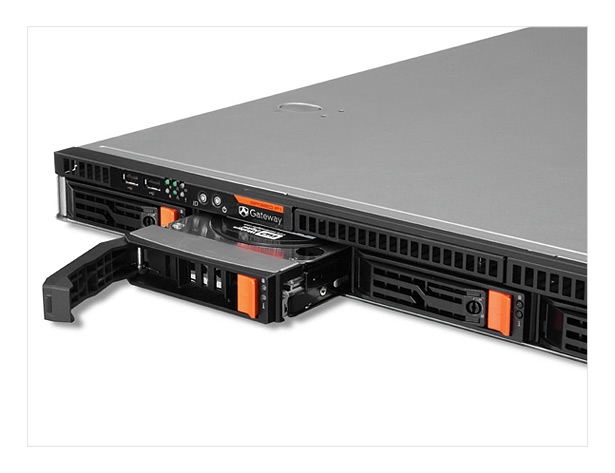

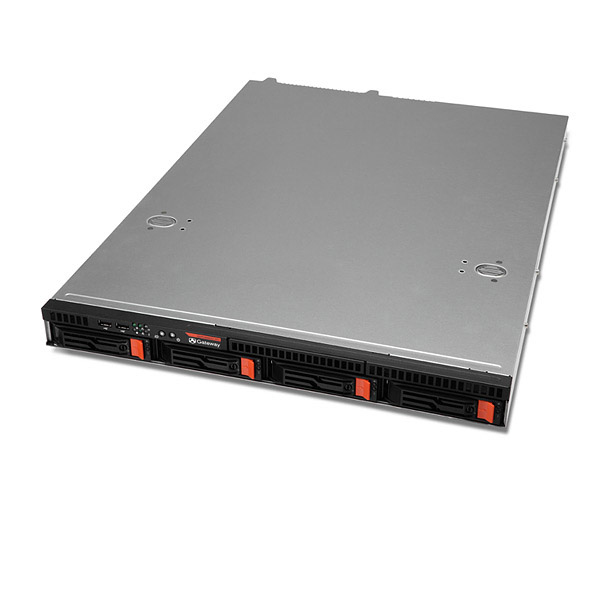

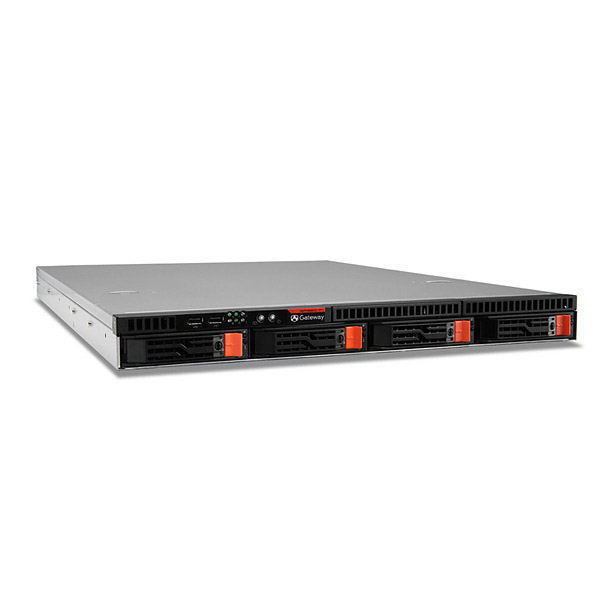

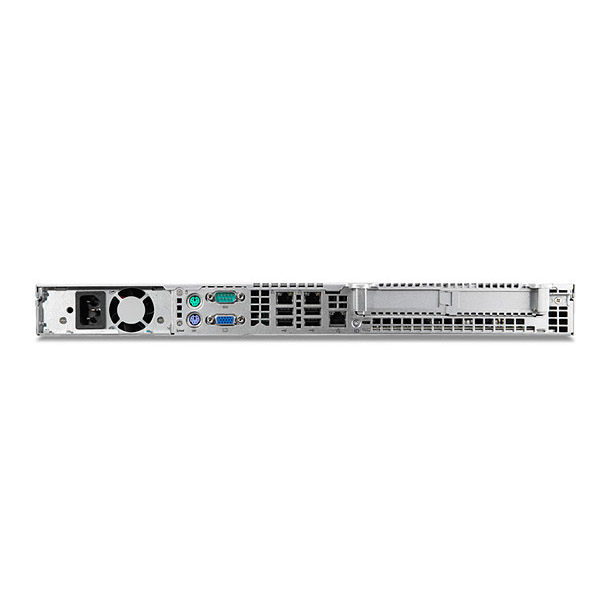

Acer GR320 F1

Model GR320 F1Part no. TK.R6J00.009

100 specifications

Overview

Brand: Acer
Category: Server
Model: GR320 F1
Part number: TK.R6J00.009
Also known as: Acer Gateway GR320 F1 server 500 GB Rack (1U) Intel® Pentium® G6950 2.8 GHz 2 GB DDR3-SDRAM 400 W

100 specifications in 12 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	G6950
Processor frequency	2.8 GHz
Processor cores	2
Processor cache	3 MB
Motherboard chipset	Intel® 3420
Memory channels supported by processor	Dual
Number of processors installed	1
Thermal Design Power (TDP)	73 W
Processor cache type	Smart Cache
System bus rate	2.5 GT/s
Bus type	DMI
CPU multiplier (bus/core ratio)	21
ECC supported by processor	No
Embedded options available	Yes
Execute Disable Bit	Yes
FSB Parity	No
Graphics & IMC lithography	45 nm
Idle States	Yes
Maximum internal memory supported by processor	16 GB
Maximum number of PCI Express lanes	16
Memory bandwidth supported by processor (max)	17 GB/s
Memory types supported by processor	DDR3 1066
Number of Processing Die Transistors	382 M
PCI Express configurations	1x16, 2x8
Physical Address Extension (PAE)	36 bit
Processing Die size	81 mm²
Processor codename	Clarkdale
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Pentium G6000 Series for Desktop
Processor socket	LGA 1156 (Socket H)
Processor threads	2
Tcase	72.6 °C
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Specification	Value
On-board graphics card	Yes
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	533 MHz
Maximum graphics card memory	32 MB

Specification	Value
Ethernet LAN	Yes
Networking features	Gigabit Ethernet

Specification	Value
PCI Express slots version	2.0

Specification	Value
Chassis type	Rack (1U)

Specification	Value
Operating system installed	No
Compatible operating systems	Windows Server 2008 Windows Server 2008 R2 Windows Server 2003 Red Hat Enterprise Linux 5.4 Novell SUSE Linux Enterprise Server 11

Specification	Value
CPU configuration (max)	1
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	43230

Specification	Value
Redundant power supply (RPS) support	No
Number of power supply units	1
Power supply	400 W
