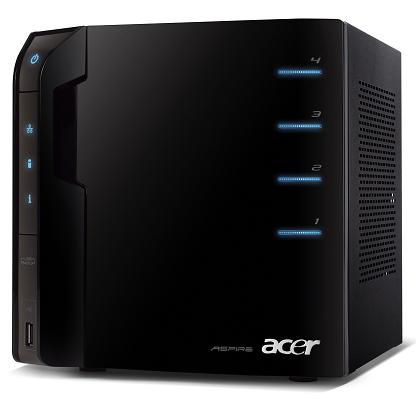

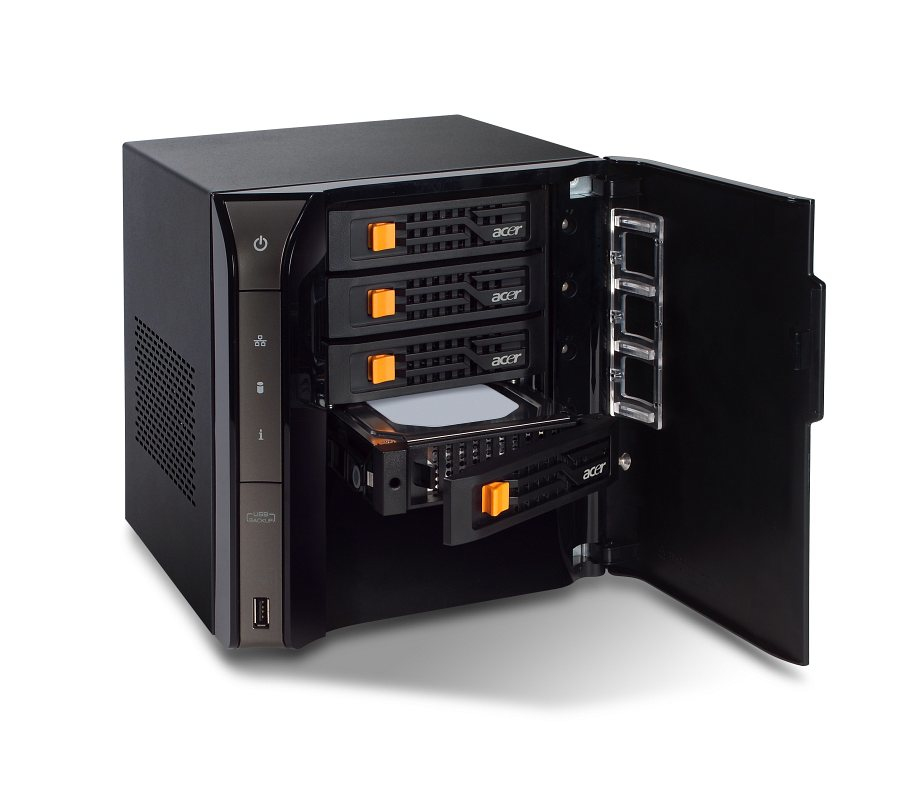

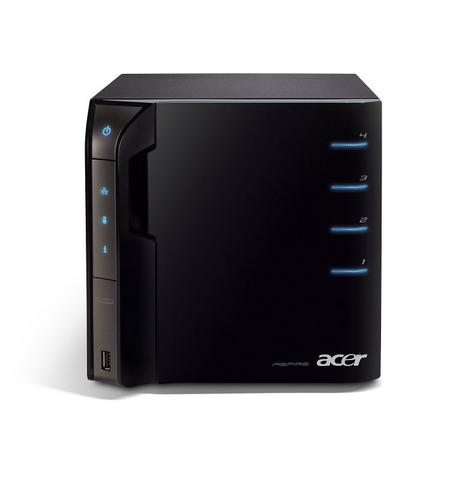

Acer Aspire Easy Store H340
Model Aspire Easy Store H340Part no. PG.T17EW.031
49 specifications
- ProcessorIntel Atom®
- Memory2 GB
- Storage2 TB
- ConnectivityUSB 2.0, eSATA
- OSWindows Home Server
- Weight5.1 kg
Overview
- Processor
- Intel Atom®
- Memory
- 2 GB
- Storage
- 2 TB
- Connectivity
- USB 2.0, eSATA
- OS
- Windows Home Server
- Weight
- 5.1 kg
- Brand
- Acer
- Category
- Server
- Model
- Aspire Easy Store H340
- Part numbers
- PG.T17EW.031, PG.T17EW.009
- Also known as
- Acer Aspire Easy Store H340 server 2 TB Tower Intel Atom® 1.6 GHz 2 GB DDR2-SDRAM 200 W Windows Home Server
Specifications
49 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel Atom® |
| Processor frequency | 1.6 GHz |
| Processor cores | 1 |
| Processor cache | 0.512 MB |
| Number of processors installed | 1 |
| Processor cache type | L2 |
| Processor front side bus | 533 MHz |
| Processor socket | BGA 437 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR2-SDRAM |
| Memory clock speed | 667 MHz |
| Memory layout (slots x size) | 1 x 2 GB |
| Memory slots | 2 |
| Maximum internal memory | 4 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 4 TB |
| Total storage capacity | 2 TB |
| Number of HDDs installed | 2 |
| HDD capacity | 1 TB |
| HDD interface | Serial ATA |
| HDD size | 3.5" |
| Number of HDDs supported | 4 |
| RAID support | No |
| Hot-swap | Yes |
| Internal drive bays | 4 x 3.5" |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | USB 2.0, eSATA |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 5 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Home Server |
| Compatible operating systems | Windows XP/Vista |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | No |
| Number of power supply units | 1 |
| Power requirements | 100 - 240V |
| Power supply | 200 W |
Certificates
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Certification | CE, FCC, CCC, VCCI |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 212 mm |
| Height | 180 mm |
| Weight | 5.1 kg |
Other features
| Specification | Value |
|---|---|
| Flash memory | 256 MB |
| Mac compatibility | No |
