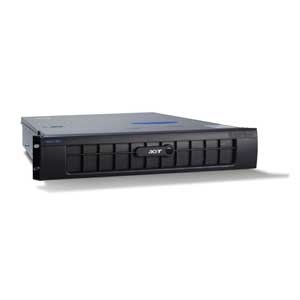

Acer Altos R720
Model Altos R720Part no. TT.R72D0.030EAN 4718235956080
77 specifications
- ProcessorIntel® Xeon® 5000 Sequence
- Memory2 GB
- Weight27.2 kg
- Processor manufacturerIntel
- RAID levels1, 5, 10, 50
- Networking featuresGigabit Ethernet
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Memory
- 2 GB
- Weight
- 27.2 kg
- Processor manufacturer
- Intel
- RAID levels
- 1, 5, 10, 50
- Networking features
- Gigabit Ethernet
- Brand
- Acer
- Category
- Server
- Model
- Altos R720
- Part numbers
- TT.R72D0.030, TT.R72D0.053, TT.R72D0.058, TT.R72D0.HS4, TT.R72D0.050, TT.R72D0.055 +16 more
- EAN / UPC
- 4718235956080, 4718235955878, 4718235955885, 4718235955861 +13 more
- Also known as
- Acer Altos R720 server Rack (2U) Intel® Xeon® 5000 Sequence 5110 1.6 GHz 2 GB DDR2-SDRAM
Specifications
77 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | 5110 |
| Processor frequency | 1.6 GHz |
| Processor cores | 2 |
| Processor cache | 4 MB |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 65 W |
| Processor cache type | L2 |
| Bus type | FSB |
| CPU multiplier (bus/core ratio) | 6 |
| ECC supported by processor | No |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | Yes |
| Idle States | Yes |
| Maximum number of SMP processors | 2 |
| Number of Processing Die Transistors | 291 M |
| Processing Die size | 143 mm² |
| Processor codename | Woodcrest |
| Processor front side bus | 1066 MHz |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon 5100 Series |
| Processor socket | LGA 771 (Socket J) |
| Processor threads | 2 |
| Tcase | 65 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR2-SDRAM |
| ECC | Yes |
| Memory layout (slots x size) | 2 x 1 GB |
| Maximum internal memory | 16 GB |
Storage
| Specification | Value |
|---|---|
| RAID levels | 1, 5, 10, 50 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 3 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 2 |
| VGA (D-Sub) ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2003 Enterprise x64 Edition, Windows Server 2003 Enterprise Edition, Windows Server 2003 Standard x64 Edition, Windows Server 2003 Standard Edition, Red Hat Enterprise Linux 4.0 (EM64T), Red Hat Enterprise Linux 4.0, SUSE Linux Enterprise Server 9 (EM64T), SUSE Linux Enterprise Server |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 27214 |
Certificates
| Specification | Value |
|---|---|
| Certification | UL/cUL, Nemko GS, CB, CCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 430 mm |
| Depth | 710 mm |
| Height | 87 mm |
| Weight | 27.2 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 430 x 710 x 87 mm |
| Storage drive controller | SATA/SAS |
