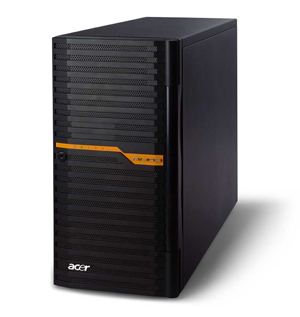

Acer Altos G540 M2

Model Altos G540 M2Part no. TT.G5BE0.106EAN 4718235957148

88 specifications

Overview

Brand: Acer
Category: Server
Model: Altos G540 M2
Part numbers: TT.G5BE0.106, TT.G5BE0.009, TT.G5BE0.006, TT.G5BE0.001, TT.G5BE0.109, TT.G5BE0.104 +1 more
EAN / UPC: 4718235957148, 4718235957285, 4718235957261, 4718235957254 +1 more
Also known as: Acer Altos G540 M2 server 0 GB Tower Intel® Xeon® 5000 Sequence L5506 2.13 GHz 3 GB DDR3-SDRAM

88 specifications in 10 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 5000 Sequence
Processor model	L5506
Processor frequency	2.13 GHz
Processor cores	4
Processor cache	4 MB
Motherboard chipset	Intel® 5520
Memory channels supported by processor	Triple
Number of processors installed	1
Thermal Design Power (TDP)	60 W
Processor cache type	Smart Cache
System bus rate	4.8 GT/s
Bus type	QPI
CPU multiplier (bus/core ratio)	16
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	144 GB
Memory bandwidth supported by processor (max)	19.2 GB/s
Memory clock speeds supported by processor	800 MHz
Memory types supported by processor	DDR3-SDRAM
Number of QPI links	2
Physical Address Extension (PAE)	40 bit
Physical Address Extension (PAE)	Yes
Processor code	SLBFH
Processor codename	Nehalem EP
Processor lithography	45 nm
Processor operating modes	64-bit
Processor package size	42.5 x 45 mm
Processor series	Intel Xeon 5500 Series
Processor socket	Socket B (LGA 1366)
Processor system type	DP
Processor threads	4
Stepping	D0
Tcase	70 °C
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Specification	Value
Networking features	Gigabit Ethernet

Specification	Value
Chassis type	Tower

Specification	Value
Compatible operating systems	Microsoft Windows Server 2008 Standard and Enterprise Edition (x86) Microsoft Windows Server 2008 Standard and Enterprise Edition (EM64T) Microsoft Windows Server 2003 Standard and Enterprise Edition (x86) Microsoft Windows Server 2003 Standard and Enterprise Edition (EM64T) Red Hat Enterprise Linux

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	40712

Specification	Value
Redundant power supply (RPS) support	Yes
