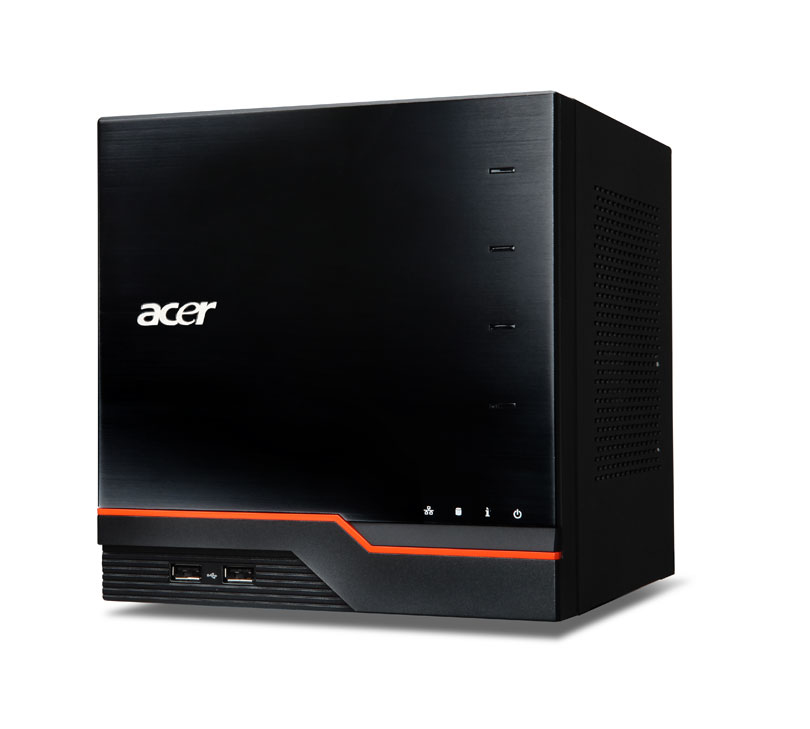

Acer AC AC100S server

2 TB Micro Tower Intel® Core™ i3 i3-2120 3.3 GHz 4 GB DDR3-SDRAM 200 W Windows Small Business Server 2011

Model AC100SPart no. ST.R7L11.00HEAN 4712196361099

113 specifications

ProcessorIntel® Core™ i3
Memory4 GB
Storage2 TB
Noise25.7 dB
Weight6.57 kg
Processor manufacturerIntel

See all specifications

Overview

Processor: Intel® Core™ i3
Memory: 4 GB
Storage: 2 TB
Noise: 25.7 dB
Weight: 6.57 kg
Processor manufacturer: Intel

Brand: Acer
Category: Server
Model: AC100S
Part numbers: ST.R7L11.00H, ST.R7M11.004
EAN / UPC: 4712196361099, 4712196361082
Also known as: Acer AC AC100S server 2 TB Micro Tower Intel® Core™ i3 i3-2120 3.3 GHz 4 GB DDR3-SDRAM 200 W Windows Small Business Server 2011

Specifications

113 specifications in 16 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	2nd gen Intel® Core™ i3
Processor model	i3-2120
Processor frequency	3.3 GHz
Processor cores	2
Processor cache	3 MB
Motherboard chipset	Intel® C206
Memory channels supported by processor	Dual
Number of processors installed	1
Thermal Design Power (TDP)	65 W
Processor cache type	Smart Cache
System bus rate	5 GT/s
Bus type	DMI
CPU multiplier (bus/core ratio)	33
ECC supported by processor	No
Embedded options available	Yes
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	32 GB
Maximum number of PCI Express lanes	16
Memory bandwidth supported by processor (max)	21 GB/s
Memory types supported by processor	DDR3 1066/1333
Processor codename	Sandy Bridge
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	37.5 x 37.5 mm
Processor series	Intel Core i3-2100 Desktop Series
Processor socket	LGA 1155 (Socket H2)
Processor threads	4
Supported instruction sets	AVX
Tcase	69.1 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
ECC	Yes
Memory slots	2x DIMM
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	2 TB
Number of HDDs installed	2
HDD capacity	1 TB
HDD interface	Serial ATA II
HDD size	3.5"
Number of HDDs supported	4
RAID support	Yes
RAID levels	1, 5
Hot-swap	Yes
Internal drive bays	4 x 3.5"
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 2000
Number of displays supported (on-board graphics)	2
On-board graphics card ID	0x102
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1100 MHz

Network

Specification	Value
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN	Yes
LAN controller	Intel® 82579LM

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	6
PS/2 ports quantity	0
Serial ports quantity	0
VGA (D-Sub) ports quantity	1

Expansion slots

Specification	Value
PCI Express x8 slots	1
PCI Express slots version	2.0

Design

Specification	Value
Chassis type	Micro Tower

Performance

Specification	Value
Noise level	25.7 dB

Software

Specification	Value
Operating system installed	Windows Small Business Server 2011
Compatible operating systems	Windows Server 2008 R2 Windows Server 2008 Windows Server 2003 R2 Red Hat Enterprise Linux 6 SUSE Linux Enterprise Server 11 Ubuntu Server 11.04

Processor special features

Specification	Value
CPU configuration (max)	1
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	53426

Power

Specification	Value
Number of power supply units	1
Power supply	200 W

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	30 - 80%
Storage relative humidity (H-H)	5 - 95%

Certificates

Specification	Value
Certification	FCC, CE, UL, CB

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Width	200 mm
Depth	205 mm
Height	200 mm
Weight	6.57 kg
