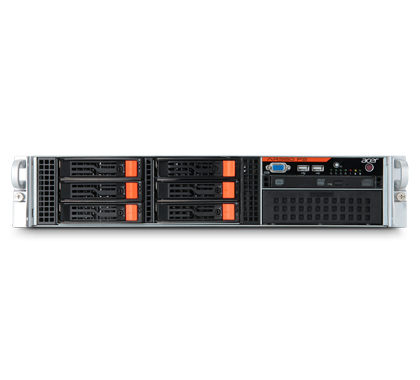

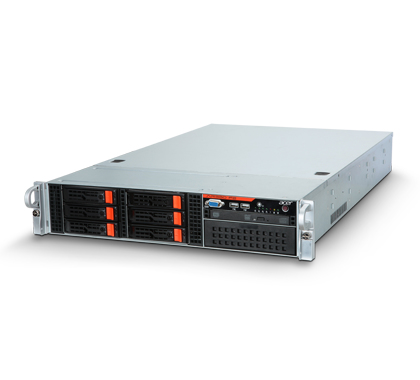

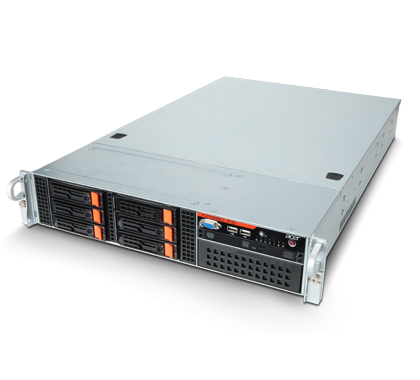

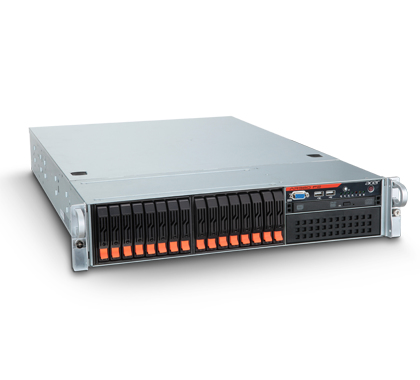

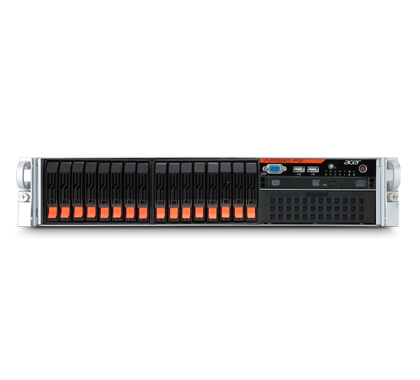

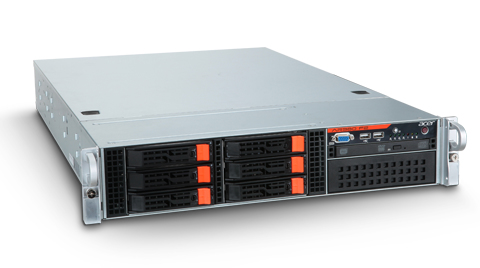

Acer 380 F2

Model 380 F2Part no. SR.R8YEG.003EAN 4712196907532

97 specifications

Overview

Brand: Acer
Category: Server
Model: 380 F2
Part numbers: SR.R8YEG.003, TT.AD120.001, TT.AD120.002, SR.R8YEE.006
EAN / UPC: 4712196907532, 750519216422, 7505192164224, 750519216415 +2 more
Also known as: Acer AR 380 F2 server 300 GB Rack (2U) Intel® Xeon® E5 Family E5-2620 2 GHz 8 GB DDR3-SDRAM

97 specifications in 8 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® E5 Family
Processor model	E5-2620
Processor frequency	2 GHz
Processor boost frequency	2.5 GHz
Processor cores	6
Processor cache	15 MB
Motherboard chipset	Intel® C606
Memory channels supported by processor	Quad
Number of processors installed	1
Thermal Design Power (TDP)	95 W
Processor cache type	Smart Cache
System bus rate	7.2 GT/s
Bus type	QPI
CPU multiplier (bus/core ratio)	25
ECC supported by processor	Yes
Embedded options available	Yes
Execute Disable Bit	Yes
FSB Parity	No
Graphics & IMC lithography	32 nm
Idle States	Yes
Maximum internal memory supported by processor	750 GB
Maximum number of PCI Express lanes	40
Maximum number of SMP processors	2
Memory bandwidth supported by processor (max)	42.6 GB/s
Memory clock speeds supported by processor	800,1066,1333 MHz
Memory types supported by processor	DDR3-SDRAM
Number of QPI links	2
PCI Express configurations	x4, x8, x16
Physical Address Extension (PAE)	46 bit
Processor codename	Sandy Bridge EP
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	52.5 x 45.0 mm
Processor series	Intel Xeon E5-2600
Processor socket	LGA 2011 (Socket R)
Processor threads	12
Scalability	2S
Stepping	C2
Supported instruction sets	AVX
Tcase	77.4 °C
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Specification	Value
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4

Specification	Value
Chassis type	Rack (2U)
Rack mounting	Yes

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	1.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	64594
