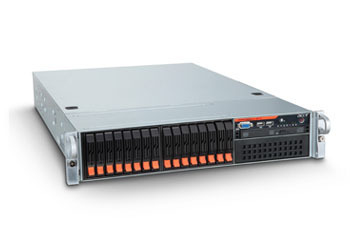

Acer 380 F1

Model 380 F1Part no. TK.R5300.093EAN 8844838969298

136 specifications

ProcessorIntel® Xeon® 5000 Sequence
Memory8 GB
Storage0 GB
Noise45.8 dB
Weight28.5 kg
Processor manufacturerIntel

See all specifications

Overview

Processor: Intel® Xeon® 5000 Sequence
Memory: 8 GB
Storage: 0 GB
Noise: 45.8 dB
Weight: 28.5 kg
Processor manufacturer: Intel

Brand: Acer
Category: Server
Model: 380 F1
Part numbers: TK.R5300.093, TK.R5300.078, TK.R5300.083, TK.R5300.091, TK.R5300.092, TK.R5300.081 +3 more
EAN / UPC: 8844838969298, 884483894659, 8844838946596, 884483894703 +14 more
Also known as: Acer Altos 380 F1 server 0 GB Rack (2U) Intel® Xeon® 5000 Sequence E5620 2.4 GHz 8 GB DDR3-SDRAM 720 W

Specifications

136 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 5000 Sequence
Processor model	E5620
Processor frequency	2.4 GHz
Processor boost frequency	2.66 GHz
Processor cores	4
Processor cache	12 MB
Motherboard chipset	Intel® 5520
Memory channels supported by processor	Triple
Number of processors installed	1
Thermal Design Power (TDP)	80 W
Processor cache type	Smart Cache
System bus rate	5.86 GT/s
Bus type	QPI
CPU multiplier (bus/core ratio)	18
Compatible processor series	Intel® Xeon®
ECC supported by processor	Yes
Embedded options available	Yes
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	288 GB
Maximum number of SMP processors	2
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory clock speeds supported by processor	800,1066 MHz
Memory types supported by processor	DDR3 800/1066
Number of QPI links	2
Physical Address Extension (PAE)	40 bit
Processor code	SLBV4
Processor codename	Westmere EP
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	42.5 X 45 mm
Processor series	Intel Xeon 5600 Series
Processor socket	Socket B (LGA 1366)
Processor threads	8
Stepping	B1
Supported instruction sets	SSE4.2
Tcase	77.6 °C
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3-SDRAM
ECC	Yes
Memory clock speed	1333 MHz
Memory layout (slots x size)	2 x 4 GB
Memory slots	18x DIMM
Maximum internal memory	192 GB

Storage

Specification	Value
Maximum storage capacity	9.6 TB
Total storage capacity	0 GB
Number of HDDs installed	0
HDD interface	Serial ATA, Serial Attached SCSI (SAS)
Number of HDDs supported	16
RAID support	Yes
RAID levels	0, 1, 5, 10
Hot-swap	Yes
Optical drive type	DVD-RW

Graphics

Specification	Value
Maximum graphics card memory	16 MB

Network

Specification	Value
Network ready	Yes
Wi-Fi	No
Bluetooth	No
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN	Yes
LAN controller	Intel® 82576EB
Networking features	Gigabit Ethernet

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	5
USB 2.0 ports quantity	4
DisplayPorts quantity	0
FireWire 800	No
Firewire (IEEE 1394) ports	0
Mini DisplayPorts quantity	0
PS/2 ports quantity	2
Parallel ports quantity	0
Serial ports quantity	1
VGA (D-Sub) ports quantity	1

Expansion slots

Specification	Value
PCI Express x1 slots	0
PCI Express x4 slots	0
PCI Express x8 slots	6
PCI Express x16 slots	1
AGP x4 slots	0
AGP x8 slots	0
PCI Express slots version	2.0
PCI slots	0
PCI-X slots	0

Design

Specification	Value
Chassis type	Rack (2U)

Performance

Specification	Value
Performance management	BMC / KVM o IP
Noise level	45.8 dB

Software

Specification	Value
Compatible operating systems	Windows Server 2008, Windows Server 2008 R2, Windows Server 2003, Red Hat Enterprise Linux 5.4, SuSE Linux Enterprise Server 11, VMware ESXi 4, VMware ESX 4

Processor special features

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	1.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	47925

Power

Specification	Value
Redundant power supply (RPS) support	Yes
Power supply type	AC
Number of power supply units	2
Power requirements	100 - 240 VAC, 50/60 Hz
Power supply	720 W

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 35 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 95%
Relative humidity	8 - 90%

Certificates

Specification	Value
Electromagnetic compatibility	FCC (A), CE (A), BSMI
Safety	UL/cUL, CB, Nemko/GS

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold

Weight & dimensions

Specification	Value
Width	438.4 mm
Depth	705 mm
Height	88.1 mm
Weight	28.5 kg

Packaging content

Specification	Value
Keyboard included	No
Mouse included	No

Other features

Specification	Value
Disk array controller	SAS
Mac compatibility	No
Ventilation fan(s)	4
