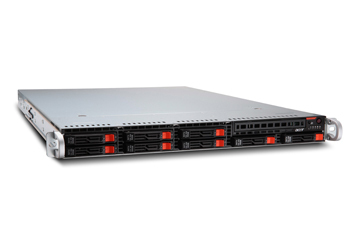

Acer Altos 360F1-TM server
600 GB Rack (1U) Intel® Xeon® 5000 Sequence E5620 2.4 GHz 4 GB DDR3-SDRAM 700 W
Model 360F1-TMPart no. TK.R5100.106EAN 4717276868741
118 specifications
- ProcessorIntel® Xeon® 5000 Sequence
- Memory4 GB
- Storage600 GB
- Weight18.5 kg
- Processor manufacturerIntel
- Maximum graphics card memory16 MB
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Memory
- 4 GB
- Storage
- 600 GB
- Weight
- 18.5 kg
- Processor manufacturer
- Intel
- Maximum graphics card memory
- 16 MB
- Brand
- Acer
- Category
- Server
- Model
- 360F1-TM
- Part number
- TK.R5100.106
- EAN / UPC
- 4717276868741
- Also known as
- Acer Altos 360F1-TM server 600 GB Rack (1U) Intel® Xeon® 5000 Sequence E5620 2.4 GHz 4 GB DDR3-SDRAM 700 W
Specifications
118 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5620 |
| Processor frequency | 2.4 GHz |
| Processor boost frequency | 2.66 GHz |
| Processor cores | 4 |
| Processor cache | 12 MB |
| Motherboard chipset | Intel® 5520 |
| Memory channels supported by processor | Triple |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | Smart Cache |
| System bus rate | 5.86 GT/s |
| Bus type | QPI |
| CPU multiplier (bus/core ratio) | 18 |
| Compatible processor series | Intel® Xeon® |
| ECC supported by processor | Yes |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 288 GB |
| Maximum number of SMP processors | 2 |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory types supported by processor | DDR3 800/1066 |
| Number of QPI links | 2 |
| Physical Address Extension (PAE) | 40 bit |
| Processor code | SLBV4 |
| Processor codename | Westmere EP |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor package size | 42.5 X 45 mm |
| Processor series | Intel Xeon 5600 Series |
| Processor socket | Socket B (LGA 1366) |
| Processor threads | 8 |
| Stepping | B1 |
| Supported instruction sets | SSE4.2 |
| Tcase | 77.6 °C |
| Thermal Monitoring Technologies | No |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 18x DIMM |
| Maximum internal memory | 192 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 600 GB |
| Number of HDDs installed | 2 |
| HDD capacity | 300 GB |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| HDD speed | 10000 RPM |
| HDD size | 2.5" |
| Number of HDDs supported | 8 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Optical drive type | DVD-RW |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 16 MB |
Network
| Specification | Value |
|---|---|
| Network ready | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet LAN | Yes |
| LAN controller | Intel® 82576EB |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| USB 2.0 ports quantity | 2 |
| PS/2 ports quantity | 2 |
| Parallel ports quantity | 0 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 0 |
| PCI Express x4 slots | 0 |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express slots version | 2.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2008 Windows Server 2008 R2 Red Hat Enterprise Linux 5.4 Windows Server 2003 SUSE Linux Enterprise Server 11 VMware ESXi 4 VMware ESX 4 |
| Bundled software | Acer Smart Setup Acer Smart Manager |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | 1.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 47925 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Power supply | 700 W |
Certificates
| Specification | Value |
|---|---|
| Electromagnetic compatibility | FCC A, CE, BSMI A |
| Safety | UL/cUL, CB |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 438.4 mm |
| Depth | 675.5 mm |
| Height | 43.6 mm |
| Weight | 18.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Keyboard included | No |
| Mouse included | No |
Other features
| Specification | Value |
|---|---|
| Disk array controller | SAS |
| Mac compatibility | No |
