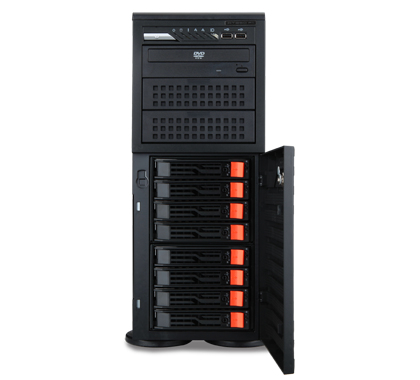

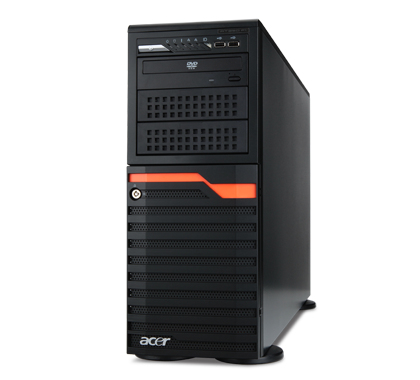

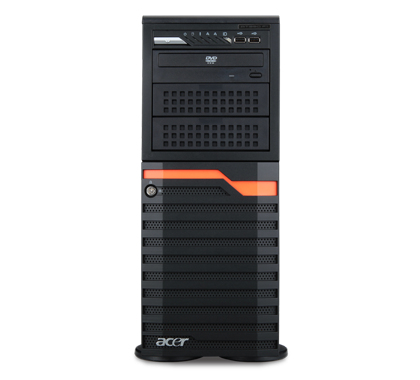

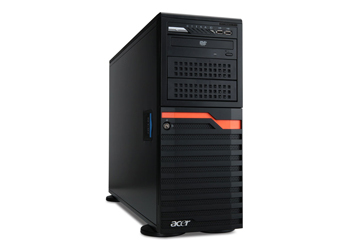

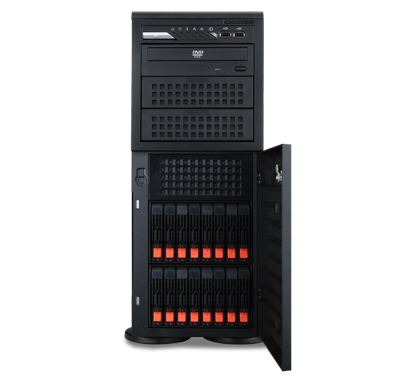

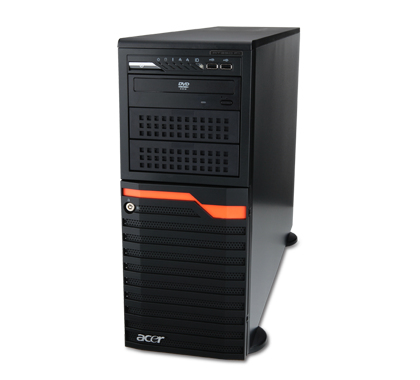

Acer AT 350F1-TM server
0 GB Intel® Xeon® 5000 Sequence E5606 2.13 GHz 4 GB DDR3-SDRAM 720 W
Model 350F1-TMPart no. TT.R5900.107EAN 4717276741297
99 specifications
- ProcessorIntel® Xeon® 5000 Sequence
- Memory4 GB
- Storage0 GB
- OSNo
- Processor manufacturerIntel
- Maximum graphics card memory16 MB
Overview
- Processor
- Intel® Xeon® 5000 Sequence
- Memory
- 4 GB
- Storage
- 0 GB
- OS
- No
- Processor manufacturer
- Intel
- Maximum graphics card memory
- 16 MB
- Brand
- Acer
- Category
- Server
- Model
- 350F1-TM
- Part number
- TT.R5900.107
- EAN / UPC
- 4717276741297
- Also known as
- Acer AT 350F1-TM server 0 GB Intel® Xeon® 5000 Sequence E5606 2.13 GHz 4 GB DDR3-SDRAM 720 W
Specifications
99 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® 5000 Sequence |
| Processor model | E5606 |
| Processor frequency | 2.13 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Motherboard chipset | Intel® 5520 |
| Memory channels supported by processor | Triple |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | Smart Cache |
| System bus rate | 4.8 GT/s |
| Bus type | QPI |
| CPU multiplier (bus/core ratio) | 16 |
| Compatible processor series | Intel® Xeon® |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 288 GB |
| Maximum number of SMP processors | 2 |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Memory clock speeds supported by processor | 800,1066 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Number of QPI links | 2 |
| Physical Address Extension (PAE) | 40 bit |
| Processor code | SLC2N |
| Processor codename | Westmere EP |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor package size | 42.5 X 45 mm |
| Processor series | Intel Xeon 5600 Series |
| Processor socket | Socket B (LGA 1366) |
| Processor threads | 4 |
| Stepping | B1 |
| Supported instruction sets | SSE4.2 |
| Thermal Monitoring Technologies | No |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| Memory clock speed | 1333 MHz |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 18x DIMM |
| Maximum internal memory | 192 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| HDD size | 3.5" |
| Number of HDDs supported | 4 |
| Number of SSDs installed | 0 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Optical drive type | DVD-ROM |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 16 MB |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 6 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 4 |
| PCI Express x16 slots | 2 |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Windows Server 2008, Windows Server 2008 R2, Windows Server 2003, Red Hat Enterprise Linux 5.4, SuSE Linux Enterprise Server 11 |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 2 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 52583 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| Power supply | 720 W |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Keyboard included | No |
| Mouse included | Yes |
