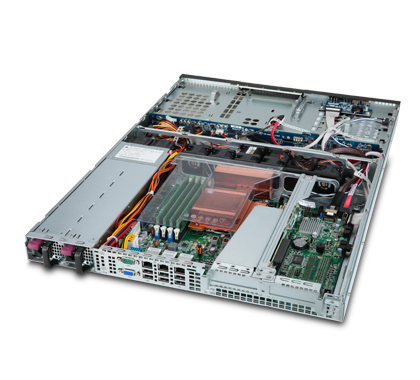

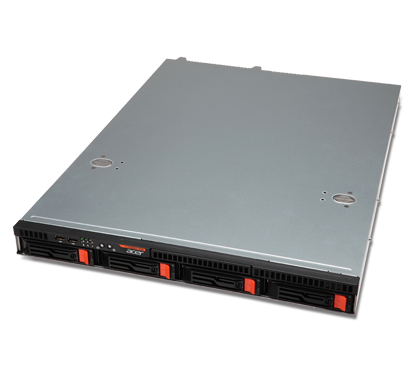

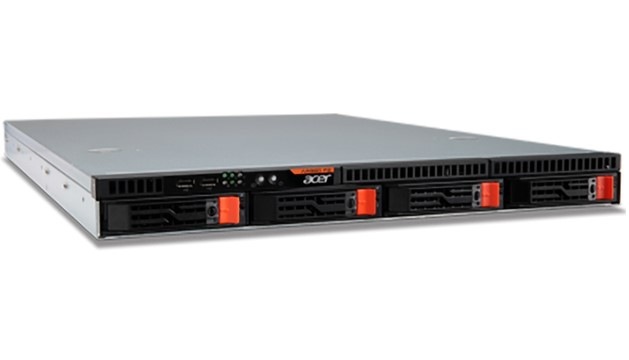

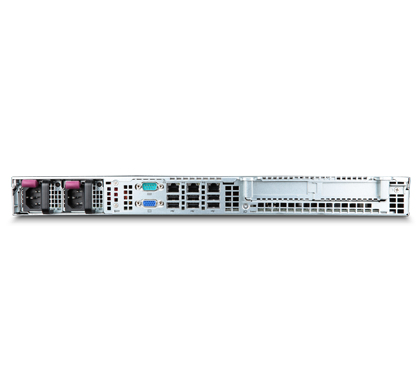

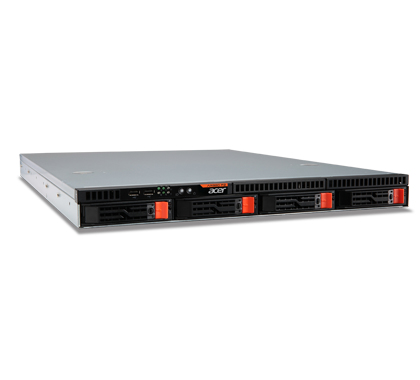

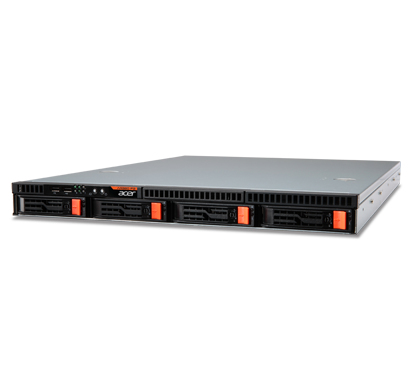

Acer AR 320F2 server
0 GB Rack Intel® Xeon® E3 V2 Family E3-1220V2 3.1 GHz 4 GB DDR3-SDRAM 400 W
Model 320F2Part no. SR.R8EEE.007EAN 4712196892692
111 specifications
- ProcessorIntel® Xeon® E3 V2 Family
- Memory4 GB
- Storage0 GB
- OSNo
- Weight10.3 kg
- Processor manufacturerIntel
Overview
- Processor
- Intel® Xeon® E3 V2 Family
- Memory
- 4 GB
- Storage
- 0 GB
- OS
- No
- Weight
- 10.3 kg
- Processor manufacturer
- Intel
- Brand
- Acer
- Category
- Server
- Model
- 320F2
- Part numbers
- SR.R8EEE.007, SR.R8EEE.007-SP.344WW.007
- EAN / UPC
- 4712196892692
- Also known as
- Acer AR 320F2 server 0 GB Rack Intel® Xeon® E3 V2 Family E3-1220V2 3.1 GHz 4 GB DDR3-SDRAM 400 W
Specifications
111 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E3 V2 Family |
| Processor model | E3-1220V2 |
| Processor frequency | 3.1 GHz |
| Processor boost frequency | 3.5 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Memory channels supported by processor | Dual |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 69 W |
| Processor cache type | Smart Cache |
| System bus rate | 5 GT/s |
| Bus type | DMI |
| CPU multiplier (bus/core ratio) | 31 |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 32 GB |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Memory clock speeds supported by processor | 1333,1600 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| PCI Express configurations | 1x16+1x4, 1x8+3x4, 2x8+1x4 |
| Processor code | SR0PH |
| Processor codename | Ivy Bridge |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon E3-1200 v2 |
| Processor socket | LGA 1155 (Socket H2) |
| Processor threads | 4 |
| Stepping | E1 |
| Supported instruction sets | AVX, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Memory clock speed | 1600 MHz |
| Memory layout (slots x size) | 1 x 4 GB |
| Memory slots | 4x DIMM |
| Maximum internal memory | 16 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 12 TB |
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| Number of HDDs supported | 4 |
| Supported HDD sizes | 3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Hot-swap | Yes |
| Optical drive type | DVD±RW |
| Supported storage drive interfaces | SAS, Serial ATA |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Not available |
| Maximum graphics card memory | 32 MB |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| LAN controller | Intel® 82574L |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 8 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express slots version | 3.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Windows Server 2012 Windows Server 2008 R2 (includes Hyper) Windows Server 2008 (includes Hyper) Red Hat Enterprise Linux 6.3 Red Hat Enterprise Linux 5 SUSE Linux Enterprise Server 11 SUSE Linux Enterprise Server 10 |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 65734 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 400 W |
| Number of main power supplies | 2 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 444 mm |
| Depth | 638 mm |
| Height | 43.6 mm |
| Weight | 10.3 kg |
Other features
| Specification | Value |
|---|---|
| Graphics card | AST2150A2 |
| Graphics card family | Aspeed |
| Graphics card memory type | GDDR2 |
What people say
Reviews & ratings
Acer AR 320F2 server
No reviews yet
Be the first to tell others how Acer AR 320F2 server works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Acer AR 320F2 server
All server comparisons- Acer AR 320F2 server vsAcer 360 F2Compare specs
- Acer AR 320F2 server vsAcer 585 F1Compare specs
- Acer AR 320F2 server vsAcer Altos 380F2 serverCompare specs
- Acer AR 320F2 server vsAcer AT 110F2-TM serverCompare specs
- Acer AR 320F2 server vsNEC Express5800 GT110d serverCompare specs

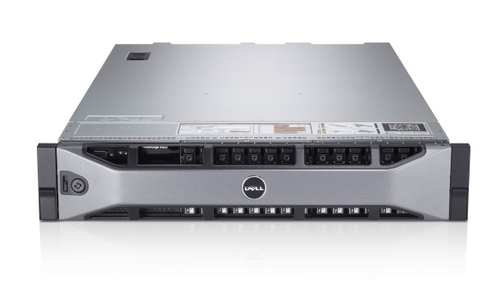

- Acer AR 320F2 server vsDell PowerEdge R820 serverCompare specs

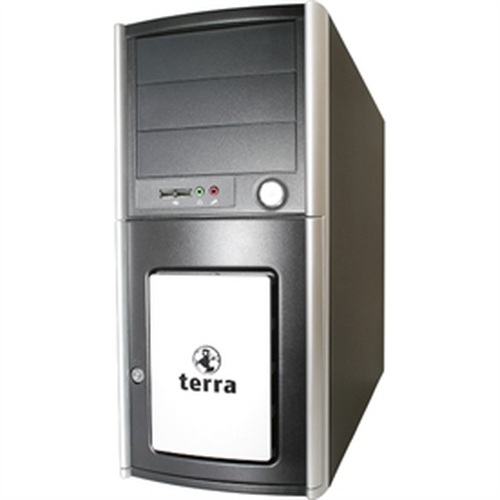

- Acer AR 320F2 server vsTERRA SERVER 4030 G1 SASCompare specs

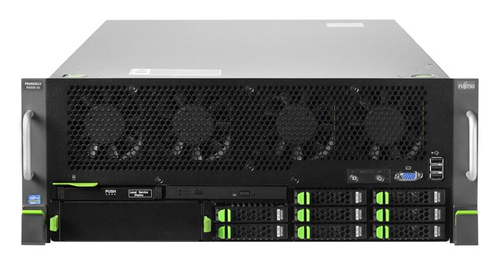

- Acer AR 320F2 server vsFujitsu PRIMERGY RX600S6 serverCompare specs
