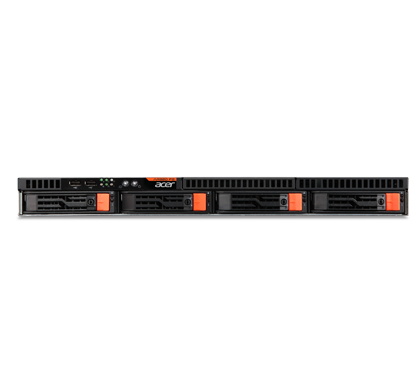

Acer 320 F2
Model 320 F2Part no. SR.R80EE.00JEAN 4712196900106
90 specifications
- ProcessorIntel® Xeon® E3 Family
- Memory4 GB
- OSNo
- Processor manufacturerIntel
- HDD interfaceSerial ATA II, Serial ATA III
- Cabling technology10/100/1000Base-T(X)
Overview
- Processor
- Intel® Xeon® E3 Family
- Memory
- 4 GB
- OS
- No
- Processor manufacturer
- Intel
- HDD interface
- Serial ATA II, Serial ATA III
- Cabling technology
- 10/100/1000Base-T(X)
- Brand
- Acer
- Category
- Server
- Model
- 320 F2
- Part numbers
- SR.R80EE.00J, TT.AD117.001, TT.AD117.002
- EAN / UPC
- 4712196900106, 750519216439, 7505192164392, 750519216446 +1 more
- Also known as
- Acer AR 320 F2 server Rack (1U) Intel® Xeon® E3 Family E3-1220 3.1 GHz 4 GB DDR3-SDRAM
Specifications
90 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® E3 Family |
| Processor model | E3-1220 |
| Processor frequency | 3.1 GHz |
| Processor boost frequency | 3.4 GHz |
| Processor cores | 4 |
| Processor cache | 8 MB |
| Motherboard chipset | Intel® C204 |
| Memory channels supported by processor | Dual |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 80 W |
| Processor cache type | Smart Cache |
| System bus rate | 5 GT/s |
| Bus type | DMI |
| CPU multiplier (bus/core ratio) | 31 |
| Compatible processor series | Intel® Xeon® |
| ECC supported by processor | Yes |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| FSB Parity | No |
| Idle States | Yes |
| Maximum internal memory supported by processor | 32 GB |
| Maximum number of PCI Express lanes | 20 |
| Maximum number of SMP processors | 1 |
| Memory bandwidth supported by processor (max) | 21 GB/s |
| Memory clock speeds supported by processor | 1066,1333 MHz |
| Memory types supported by processor | DDR3-SDRAM |
| Processor codename | Sandy Bridge |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor series | Intel Xeon E3-1200 |
| Processor socket | LGA 1155 (Socket H2) |
| Processor threads | 4 |
| Supported instruction sets | AVX |
| Tcase | 69.1 °C |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Internal memory type | DDR3-SDRAM |
| Memory slots | 4 |
Storage
| Specification | Value |
|---|---|
| HDD interface | Serial ATA II, Serial ATA III |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Internal drive bays | 4 |
| Optical drive type | DVD Super Multi |
Network
| Specification | Value |
|---|---|
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| USB 2.0 ports quantity | 8 |
| Number of SATA II connectors | 4 |
| Number of SATA III connectors | 2 |
| PS/2 ports quantity | 0 |
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 2.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (1U) |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | Yes |
| Intel Flex Memory Access | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 52269 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies supported | 2 |
