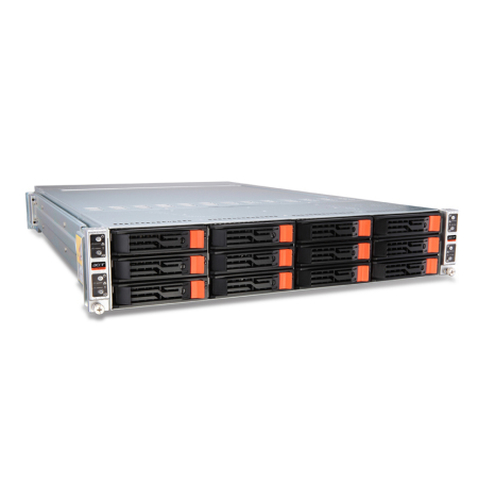

Acer 2000h-AW175h F1
Model 2000h-AW175h F1Part no. TG.R6F00.133EAN 8844838952054
84 specifications
- ProcessorAMD Opteron
- Memory16 GB
- Storage0 GB
- Noise52 dB
- Processor manufacturerAMD
- Maximum storage capacity12 TB
Overview
- Processor
- AMD Opteron
- Memory
- 16 GB
- Storage
- 0 GB
- Noise
- 52 dB
- Processor manufacturer
- AMD
- Maximum storage capacity
- 12 TB
- Brand
- Acer
- Category
- Server
- Model
- 2000h-AW175h F1
- Part numbers
- TG.R6F00.133, TG.R6F00.131, TG.R6F00.132
- EAN / UPC
- 8844838952054, 884483895182, 8844838951828, 884483895199 +2 more
- Also known as
- Acer AW 2000h-AW175h F1 server 0 GB Rack (2U) AMD Opteron 6128 2 GHz 16 GB DDR3-SDRAM 1400 W
Specifications
84 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Opteron |
| Processor model | 6128 |
| Processor frequency | 2 GHz |
| Processor cores | 8 |
| Processor cache | 12 MB |
| Motherboard chipset | AMD SR5650 |
| Number of processors installed | 2 |
| Processor cache type | L3 |
| System bus rate | 6.4 GT/s |
| Compatible processor series | Intel® Xeon® |
| Maximum number of SMP processors | 4 |
| Intelligent Platform Management Interface (IPMI) support | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR3-SDRAM |
| ECC | Yes |
| Memory clock speed | 1333 MHz |
| Memory layout (slots x size) | 4 x 4 GB |
| Memory slots | 32 |
| Maximum internal memory | 512 GB |
Storage
| Specification | Value |
|---|---|
| Maximum storage capacity | 12 TB |
| Total storage capacity | 0 GB |
| Number of HDDs installed | 0 |
| HDD interface | Serial ATA |
| HDD size | 3.5" |
| Number of HDDs supported | 6 |
| Number of SSDs installed | 0 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Network ready | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | Yes |
| LAN controller | Intel® 82576EB |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 6 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| DisplayPorts quantity | 0 |
| Dual Link DVI | No |
| FireWire 800 | No |
| Firewire (IEEE 1394) ports | 0 |
| Integrated SAS ports | 0 |
| Mini DisplayPorts quantity | 0 |
| PS/2 ports quantity | 0 |
| Parallel ports quantity | 0 |
| S/PDIF in port | No |
| S/PDIF out port | No |
| Serial ports quantity | 2 |
| VGA (D-Sub) ports quantity | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 0 |
| PCI Express x4 slots | 0 |
| PCI Express x8 slots | 0 |
| PCI Express x16 slots | 2 |
| AGP x4 slots | 0 |
| AGP x8 slots | 0 |
| PCI Express slots version | 2.0 |
| PCI slots | 0 |
| PCI-X slots | 0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Rack mounting | Yes |
Performance
| Specification | Value |
|---|---|
| Noise level | 52 dB |
| Trusted Platform Module (TPM) | Yes |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Server 2008, Windows Server 2008 R2, Windows Server 2003, Red Hat Enterprise Linux 5.4, SUSE Linux Enterprise Server 11, VMware ESXi 4, VMware ESX 4 |
Power
| Specification | Value |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| Power requirements | 100 - 240 VAC |
| Power supply | 1400 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Certificates
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Electromagnetic compatibility | FCC (A), CE (A) |
| Safety | UL/cUL, CB |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Gold |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 438 mm |
| Depth | 724 mm |
| Height | 88 mm |
Other features
| Specification | Value |
|---|---|
| Fibre Channel | Yes |
| Mac compatibility | No |
| iSCSI support | Yes |
