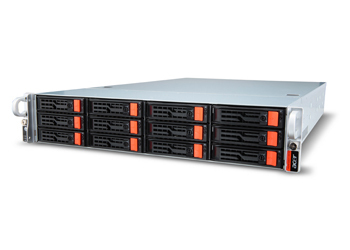

Acer Altos 180F1-TM server

600 GB Rack (2U) Intel® Xeon® 5000 Sequence E5606 2.13 GHz 4 GB DDR3-SDRAM 720 W

Model 180F1-TMPart no. TK.R5500.051

116 specifications

ProcessorIntel® Xeon® 5000 Sequence
Memory4 GB
Storage600 GB
Weight27.5 kg
Processor manufacturerIntel
Maximum graphics card memory16 MB

See all specifications

Overview

Processor: Intel® Xeon® 5000 Sequence
Memory: 4 GB
Storage: 600 GB
Weight: 27.5 kg
Processor manufacturer: Intel
Maximum graphics card memory: 16 MB

Brand: Acer
Category: Server
Model: 180F1-TM
Part number: TK.R5500.051
Also known as: Acer Altos 180F1-TM server 600 GB Rack (2U) Intel® Xeon® 5000 Sequence E5606 2.13 GHz 4 GB DDR3-SDRAM 720 W

Specifications

116 specifications in 16 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 5000 Sequence
Processor model	E5606
Processor frequency	2.13 GHz
Processor cores	4
Processor cache	8 MB
Motherboard chipset	Intel® 5520
Memory channels supported by processor	Triple
Number of processors installed	1
Thermal Design Power (TDP)	80 W
Processor cache type	Smart Cache
System bus rate	4.8 GT/s
Bus type	QPI
CPU multiplier (bus/core ratio)	16
Compatible processor series	Intel® Xeon®
ECC supported by processor	Yes
Embedded options available	No
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	288 GB
Maximum number of SMP processors	2
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory clock speeds supported by processor	800,1066 MHz
Memory types supported by processor	DDR3-SDRAM
Number of QPI links	2
Physical Address Extension (PAE)	40 bit
Processor code	SLC2N
Processor codename	Westmere EP
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	42.5 X 45 mm
Processor series	Intel Xeon 5600 Series
Processor socket	Socket B (LGA 1366)
Processor threads	4
Stepping	B1
Supported instruction sets	SSE4.2
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 4 GB
Memory slots	12x DIMM
Maximum internal memory	192 GB

Storage

Specification	Value
Total storage capacity	600 GB
Number of HDDs installed	2
HDD capacity	300 GB
HDD interface	Serial ATA, Serial ATA II, Serial Attached SCSI (SAS)
HDD speed	15000 RPM
HDD size	3.5"
Number of HDDs supported	16
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics

Specification	Value
Maximum graphics card memory	16 MB

Network

Specification	Value
Network ready	Yes
Wi-Fi	No
Bluetooth	No
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN	Yes
Networking features	Gigabit Ethernet

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	3
PS/2 ports quantity	2
Parallel ports quantity	0
Serial ports quantity	1
VGA (D-Sub) ports quantity	1

Expansion slots

Specification	Value
PCI Express x1 slots	0
PCI Express x4 slots	5
PCI Express x8 slots	1
PCI Express x16 slots	0
PCI Express slots version	2.0

Design

Specification	Value
Chassis type	Rack (2U)

Performance

Specification	Value
Performance management	BMC

Software

Specification	Value
Compatible operating systems	Windows Server 2008 Windows Server 2008 R2 Novel SUSE Linux Enterprise Server 11 Windows Server 2003 VMware ESXi 4 VMware ESX 4
Bundled software	Acer Smart Setup Acer Smart Manager

Processor special features

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	52583

Power

Specification	Value
Redundant power supply (RPS) support	Yes
Number of power supply units	1
Power supply	720 W

Certificates

Specification	Value
Electromagnetic compatibility	FCC A, CE, BSMI A
Safety	UL/cUL, CB

Weight & dimensions

Specification	Value
Width	438.4 mm
Depth	705 mm
Height	88.1 mm
Weight	27.5 kg

Packaging content

Specification	Value
Cables included	AC
Keyboard included	No
Mouse included	No

Other features

Specification	Value
Disk array controller	SAS
Mac compatibility	No
