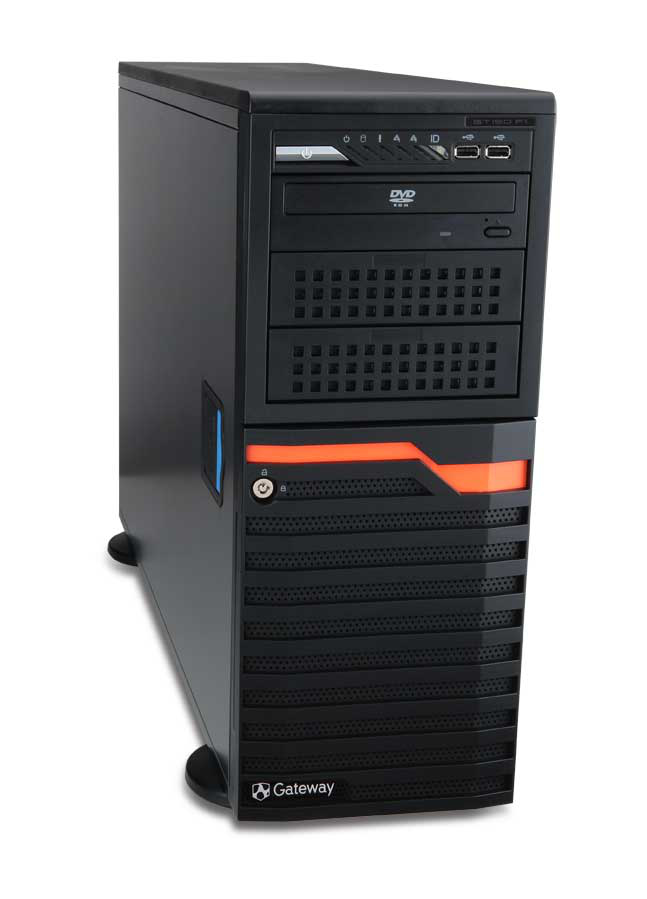

Acer 150 F1

Model 150 F1Part no. TT.R6L00.075EAN 8844838968376

93 specifications

Overview

Brand: Acer
Category: Server
Model: 150 F1
Part numbers: TT.R6L00.075, TT.R6L00.083, TT.R6L00.073, TT.R6L00.074
EAN / UPC: 8844838968376, 884483894369, 8844838943694, 884483896820 +2 more
Also known as: Acer AT 150 F1 server Tower (4U) Intel® Xeon® 5000 Sequence E5620 2.4 GHz 8 GB DDR3-SDRAM 560 W

93 specifications in 10 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Xeon® 5000 Sequence
Processor model	E5620
Processor frequency	2.4 GHz
Processor boost frequency	2.66 GHz
Processor cores	4
Processor cache	12 MB
Motherboard chipset	Intel® 5520
Memory channels supported by processor	Triple
Number of processors installed	2
Thermal Design Power (TDP)	80 W
Processor cache type	Smart Cache
System bus rate	5.86 GT/s
Bus type	QPI
CPU multiplier (bus/core ratio)	18
ECC supported by processor	Yes
Embedded options available	Yes
Execute Disable Bit	Yes
FSB Parity	No
Idle States	Yes
Maximum internal memory supported by processor	288 GB
Memory bandwidth supported by processor (max)	25.6 GB/s
Memory clock speeds supported by processor	800,1066 MHz
Memory types supported by processor	DDR3 800/1066
Number of QPI links	2
Physical Address Extension (PAE)	40 bit
Processor code	SLBV4
Processor codename	Westmere EP
Processor lithography	32 nm
Processor operating modes	64-bit
Processor package size	42.5 X 45 mm
Processor series	Intel Xeon 5600 Series
Processor socket	Socket B (LGA 1366)
Processor threads	8
Stepping	B1
Supported instruction sets	SSE4.2
Tcase	77.6 °C
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Specification	Value
HDD interface	Serial ATA, Serial Attached SCSI (SAS)
RAID support	Yes
RAID levels	0, 1, 5, 10

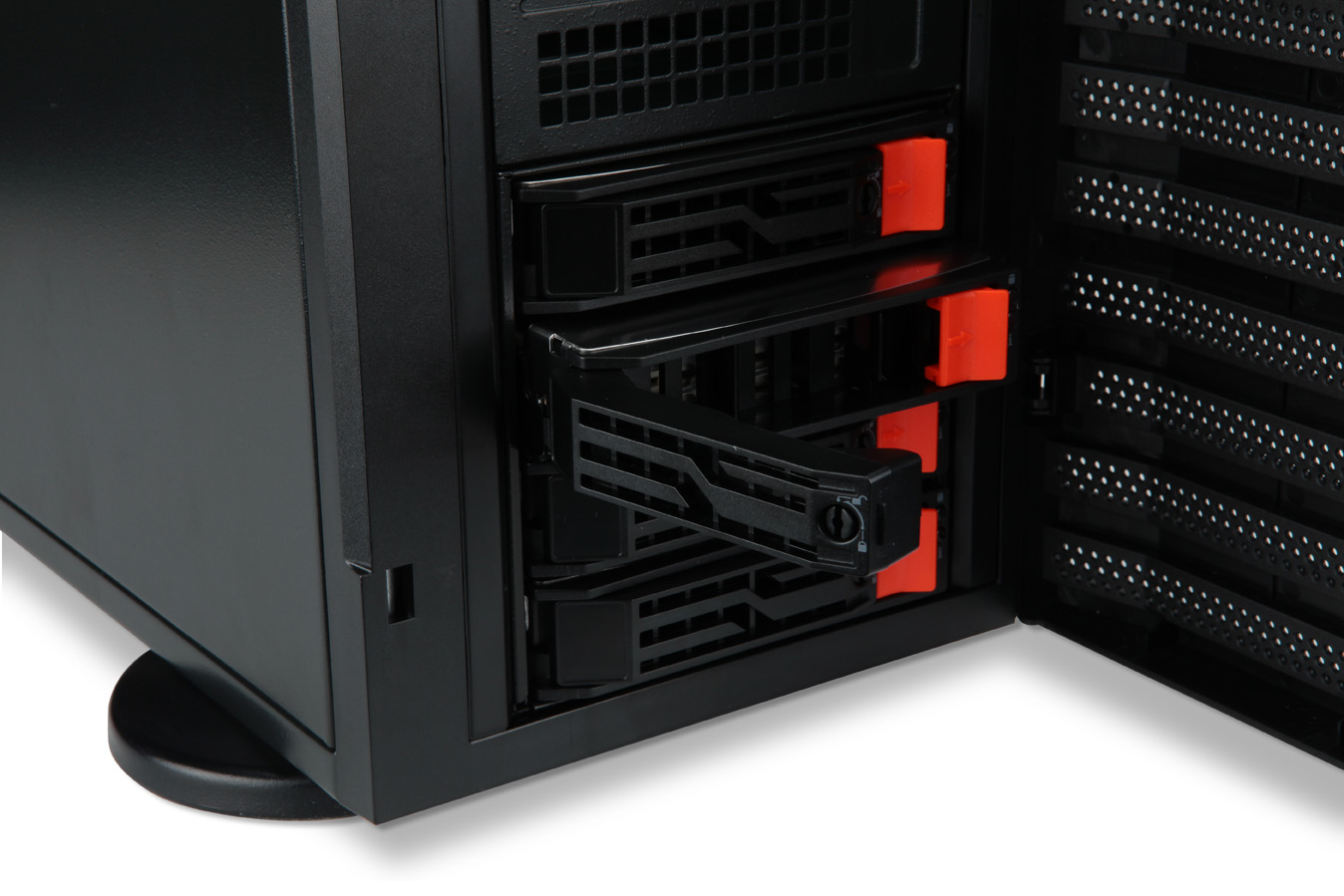

Hot-swap	Yes
Optical drive type	DVD-RW

Specification	Value
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN	Yes

Specification	Value

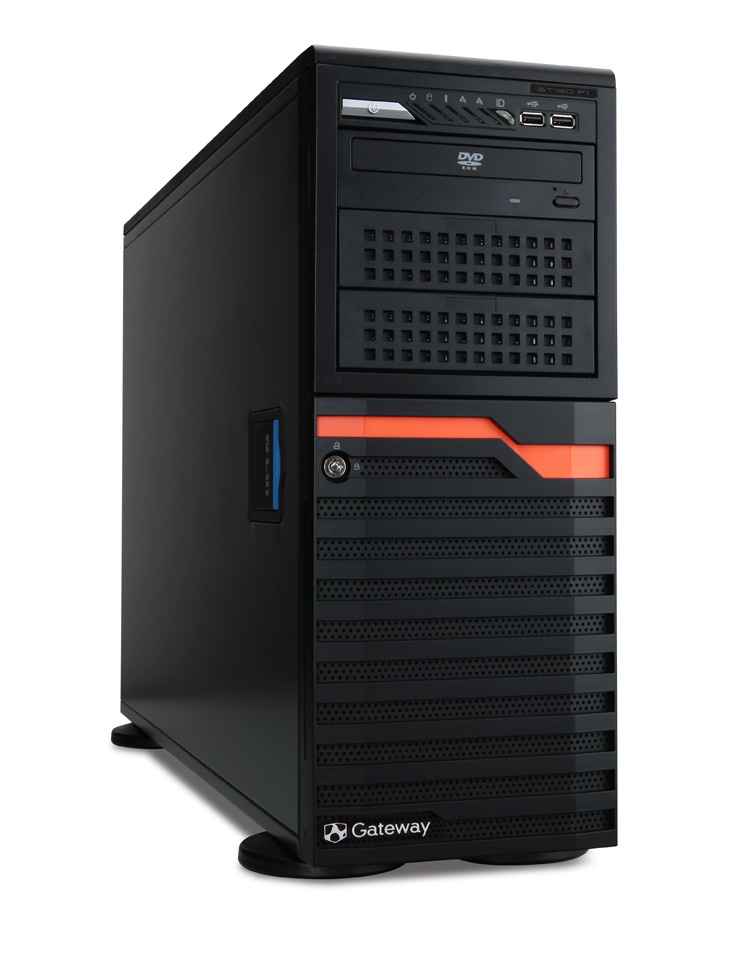

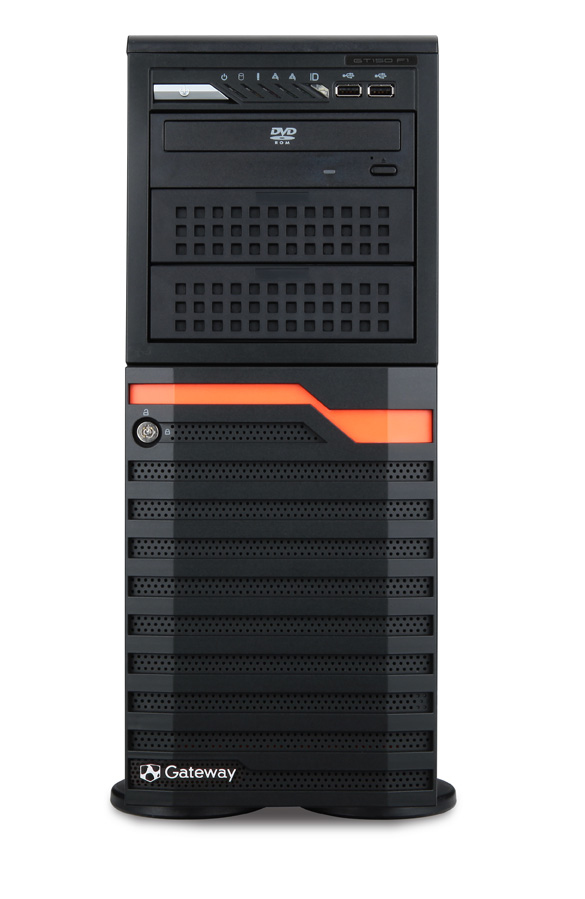

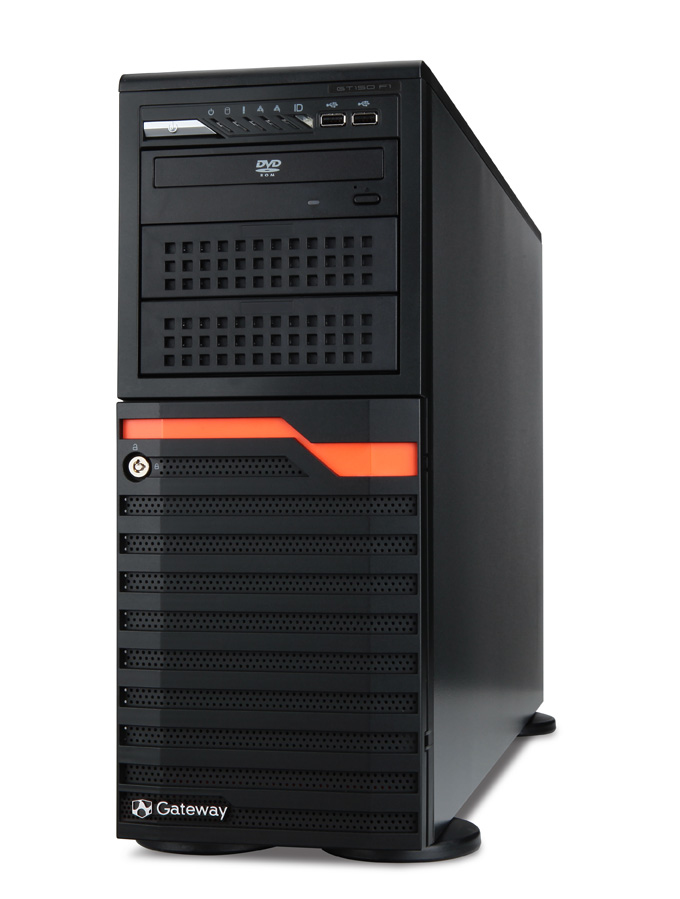

Chassis type	Tower (4U)

Specification	Value
Operating system installed	No
Compatible operating systems	Windows Server 2008 Windows Server 2008 R2 Windows Server 2003 Red Hat Enterprise Linux 5.4 SUSE Linux Enterprise Server 11 VMware ESXi 4 VMware ESX 4

Specification	Value
CPU configuration (max)	2
Enhanced Intel SpeedStep Technology	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	Yes
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	1.0
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	47925

Specification	Value
Redundant power supply (RPS) support	No
Number of power supply units	1
Power supply	560 W
