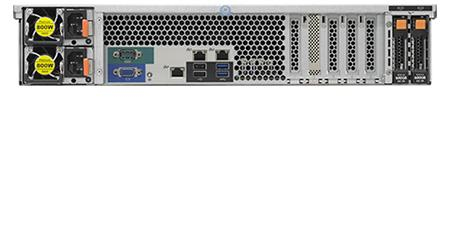

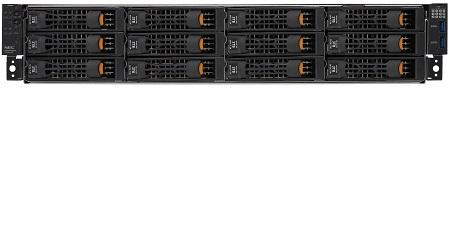

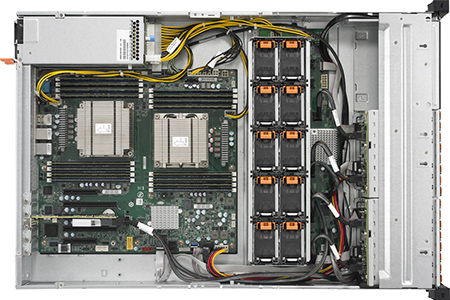

NEC Express5800/R120g-2E Intel® C612 Rack (2U) Black

NEC Express5800/R120g-2E Intel® C612 Rack (2U) Black

Model Express5800/R120g-2EPart no. N8100-2470F

36 specifications
  • ColourBlack
  • Built-in processorNo
  • Number of DIMM slots16
  • Number of storage drives supported12
  • Ethernet LANYes
  • USB 2.0 ports quantity2
See all specifications

Overview

Colour
Black
Built-in processor
No
Number of DIMM slots
16
Number of storage drives supported
12
Ethernet LAN
Yes
USB 2.0 ports quantity
2
Brand
NEC
Model
Express5800/R120g-2E
Part number
N8100-2470F
Also known as
NEC Express5800/R120g-2E Intel® C612 Rack (2U) Black

Specifications

36 specifications in 12 groups

Processor

Built-in processorNo
Motherboard chipsetIntel® C612
Number of processors supported2
Compatible processor seriesIntel® Xeon®

Memory

Number of DIMM slots16
Supported memory typesDDR4-SDRAM
Maximum internal memory1 TB
ECCYes

Storage

Number of storage drives supported12
Storage drive sizes supported3.5"

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s

Ports & interfaces

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports2
VGA (D-Sub) ports quantity1

Expansion slots

PCI Express x4 (Gen 2.x) slots1
PCI Express x8 (Gen 3.x) slots1
PCI Express x16 (Gen 3.x) slots2

Features

Compatible operating systemsMicrosoft Windows Server 2008 R2 Standard / Enterprise Microsoft Windows Server 2012 Standard / Datacenter Microsoft Windows Server 2012 R2 Standard / Datacenter Red Hat Enterprise Linux 6 2 Red Hat Enterprise Linux 7 2 VMware ESXi 5.5 VMware ESXi 6.0 VMware ESXi 6.5 3

Technical details

Compliance certificatesRoHS

Design

Chassis typeRack (2U)
Product colourBlack

Power

Power supply800 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)20 - 80%
Operating temperature (T-T)5 - 40 °C
SafetyFCC, UL, CB, CE, BSMI, UL(Mexico), CCC, RCM, RoHS, WEEE
Storage relative humidity (H-H)20 - 80%
Storage temperature (T-T)-10 - 55 °C

Weight & dimensions

Depth683.8 mm
Height87.2 mm
Width448 mm
