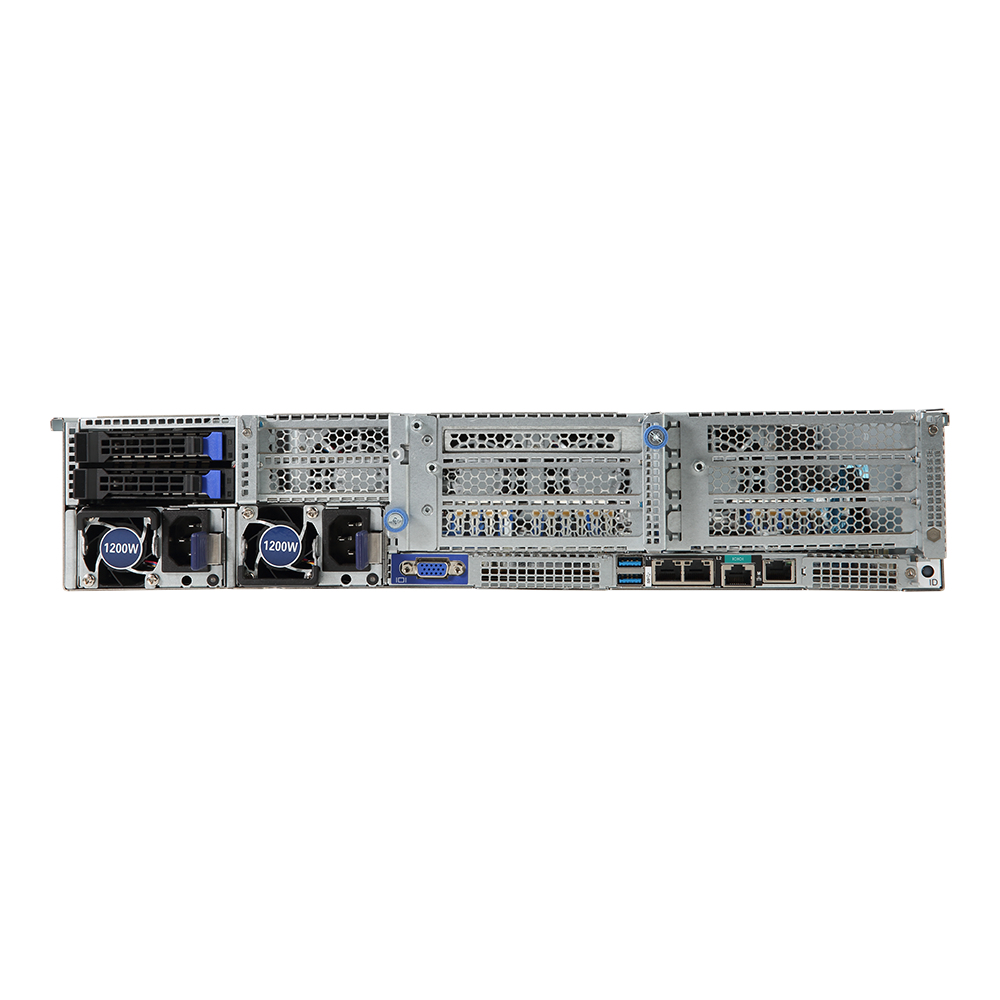

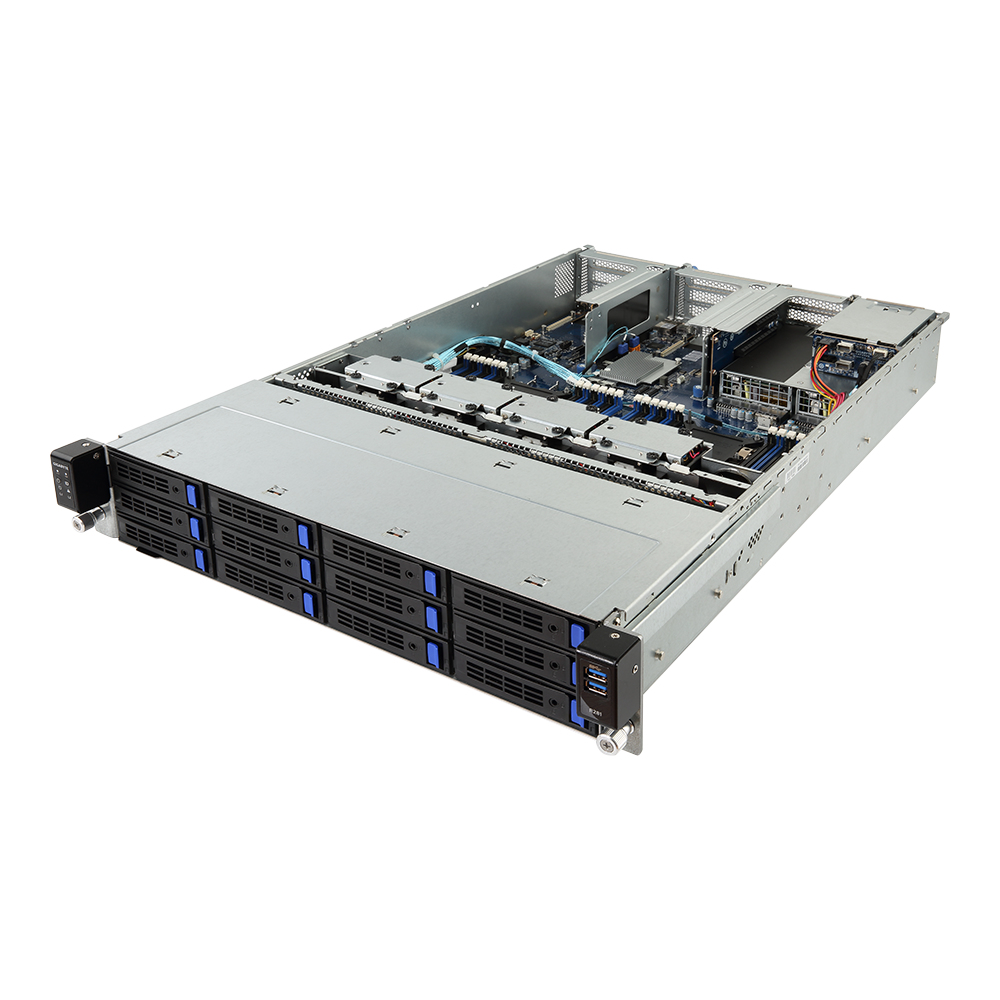

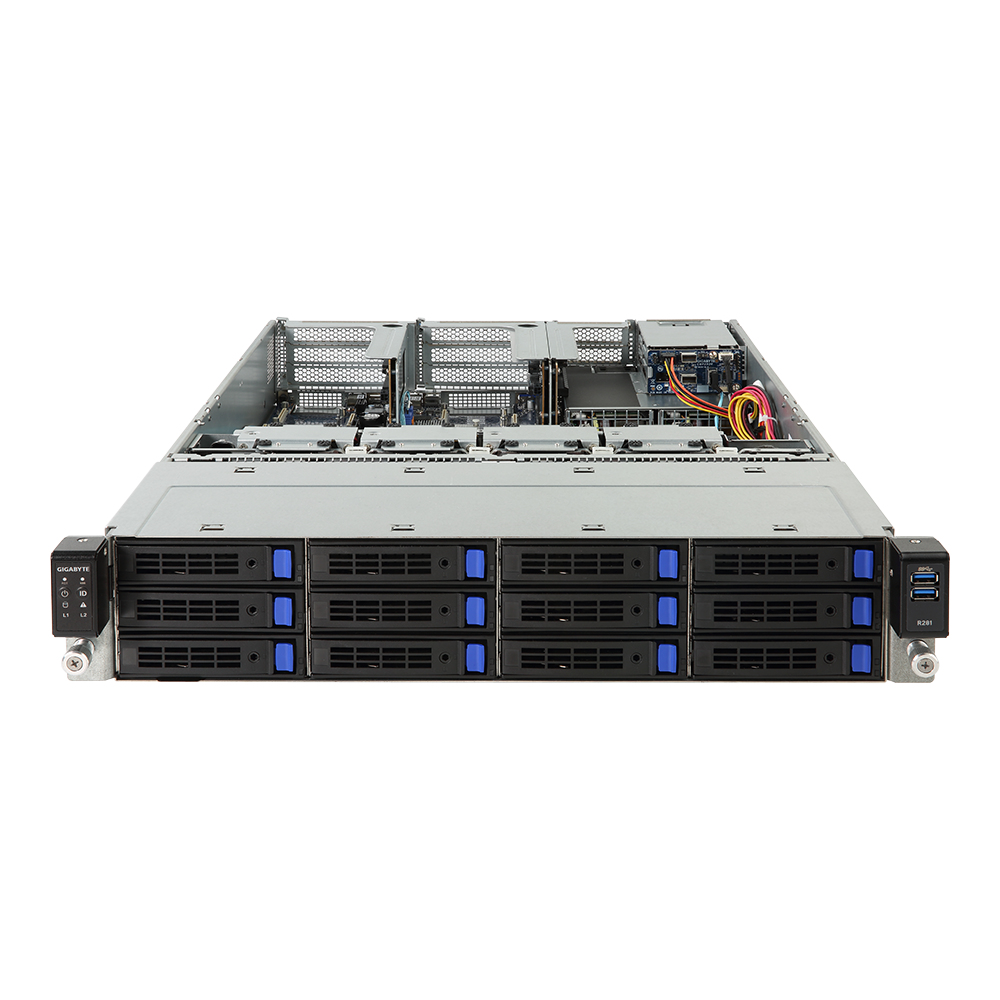

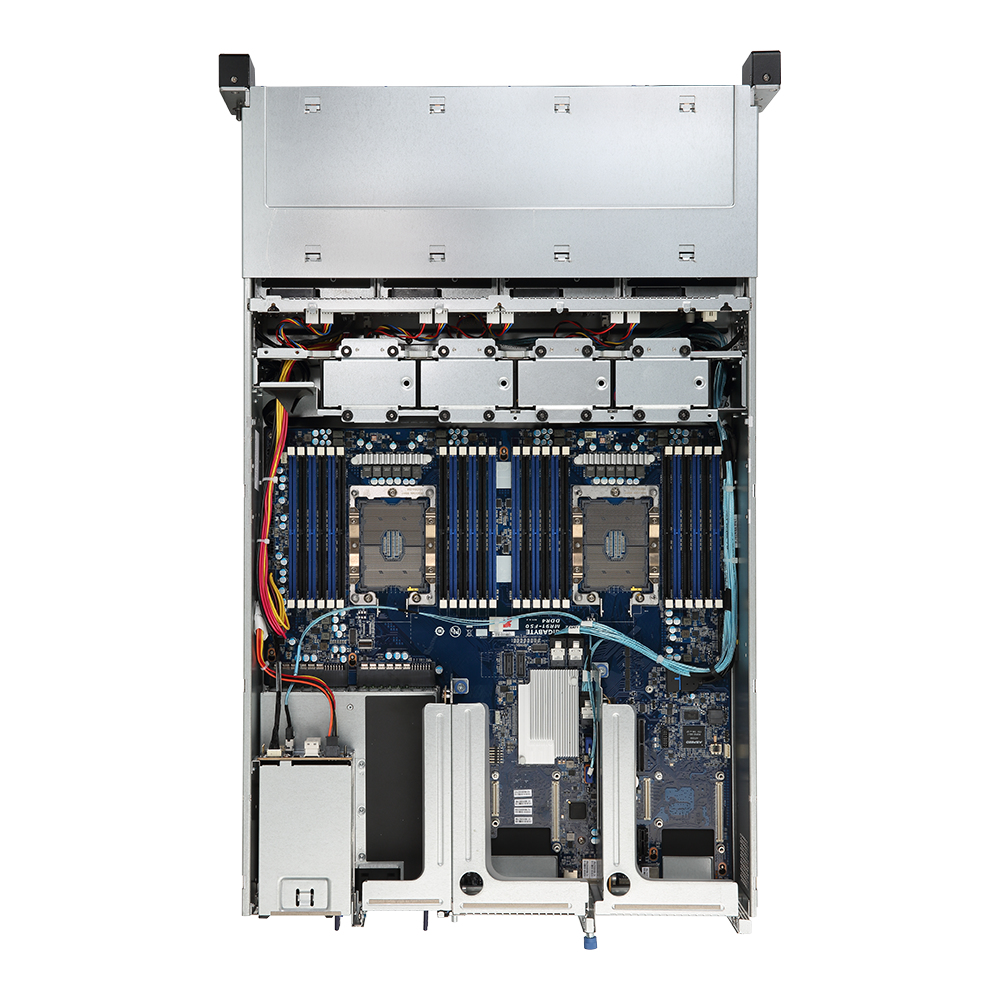

R281-3C0 Intel® C621 LGA 3647 (Socket P) Rack (2U) Black, Grey
Model R281-3C0Part no. 6NR2813C0MR-00EAN 4719331162924
67 specifications
- ProcessorIntel
- Weight20 kg
- ColourBlack, Grey
- Built-in processorNo
- Number of DIMM slots24
- Number of storage drives supported14
Overview
- Processor
- Intel
- Weight
- 20 kg
- Colour
- Black, Grey
- Built-in processor
- No
- Number of DIMM slots
- 24
- Number of storage drives supported
- 14
- Brand
- GIGABYTE
- Category
- Server Barebone
- Model
- R281-3C0
- Part numbers
- 6NR2813C0MR-00, R281-3C0
- EAN / UPC
- 4719331162924
- Also known as
- GIGABYTE R281-3C0 Intel® C621 LGA 3647 (Socket P) Rack (2U) Black, Grey
Specifications
67 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Motherboard chipset | Intel® C621 |
| Processor socket | LGA 3647 (Socket P) |
| Processor family | Intel |
| Number of processors supported | 2 |
| Compatible processor series | Intel® Xeon® |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 24 |
| Supported memory types | DDR4-SDRAM |
| Supported DIMM module capacities | 64GB |
| Supported RDIMM clock speeds | 2133,2400,2666 MHz |
| Memory voltage | 1.2 V |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 14 |
| Hot-swap HDD bays | Yes |
| Number of 2.5" bays | 2 |
| Number of 3.5" bays | 12 |
| Storage drive sizes supported | 2.5,3.5" |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial Attached SCSI (SAS), Serial ATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Number of discrete graphics cards | 0 |
| On-board graphics card model | Aspeed AST2500 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Intel® I350-AM2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
Features
| Specification | Value |
|---|---|
| Optical drive type | No |
| PC health monitoring | Fan, Temperature, Voltage |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84714100 |
Processor special features
| Specification | Value |
|---|---|
| Intelligent Platform Management Interface (IPMI) support | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black, Grey |
| LED indicators | Yes |
| Reset button | Yes |
| Rack rails | Yes |
| Fan diameter | 8 cm |
| Heat sink | 2 |
| Heat sink included | Yes |
| Number of fans | 4 fan(s) |
Power
| Specification | Value |
|---|---|
| Power supply | 1200 W |
| Redundant power supply (RPS) support | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 12-7 A |
| 80 PLUS certification | 80 PLUS Platinum |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 8 - 80% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 95% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 730 mm |
| Height | 87.5 mm |
| Weight | 20 kg |
| Width | 438 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 982 mm |
| Package depth | 588 mm |
| Package height | 268 mm |
