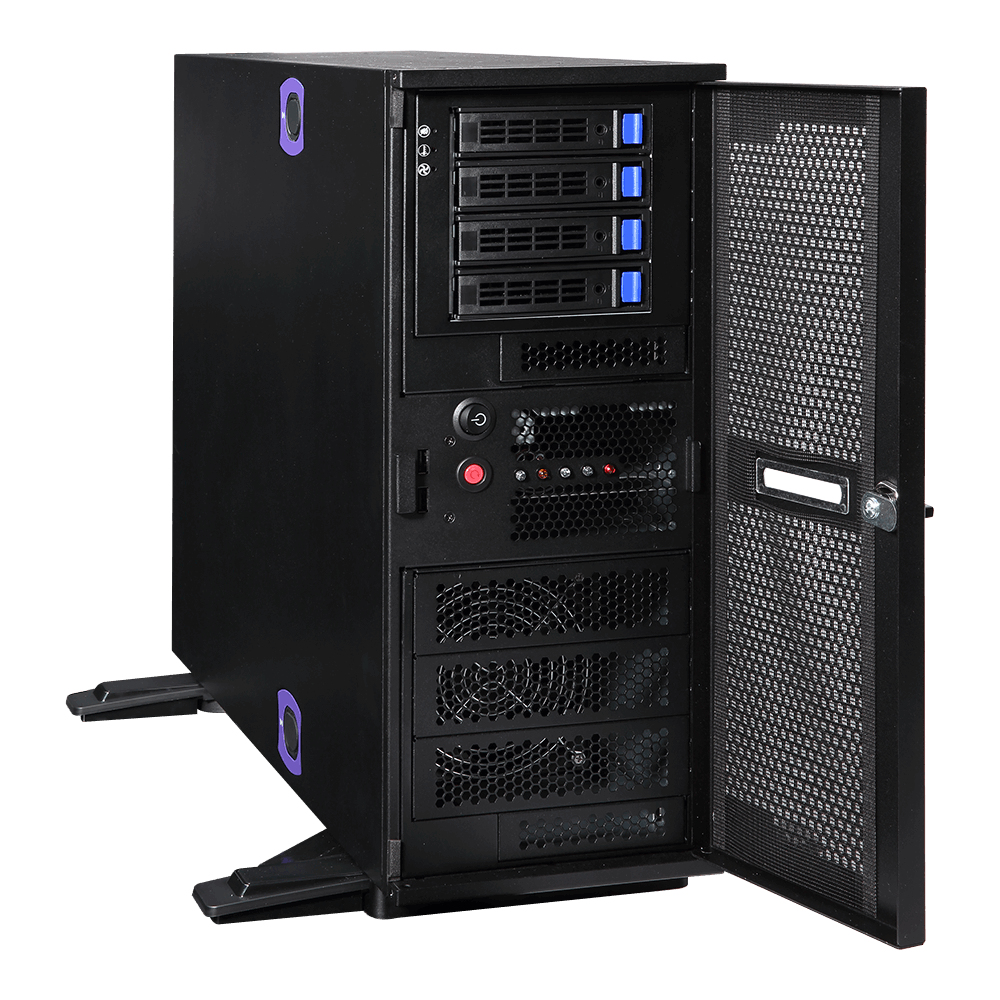

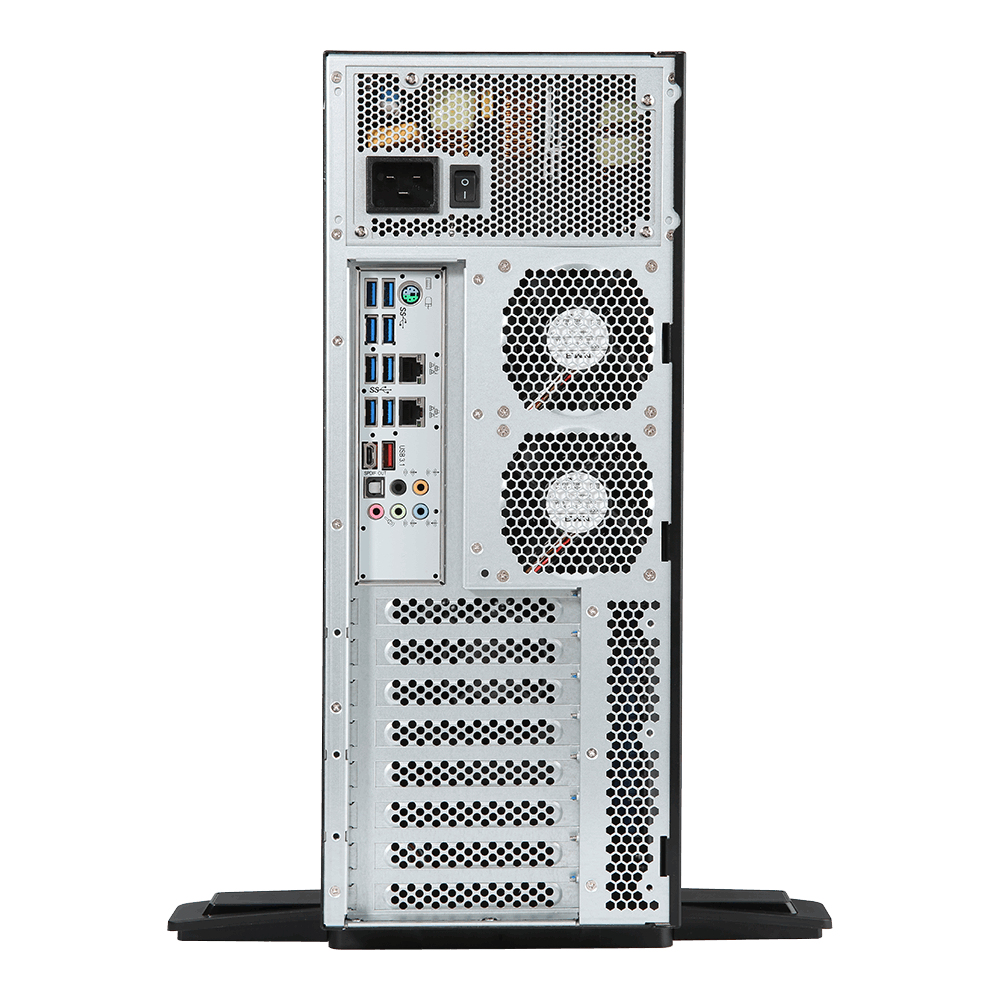

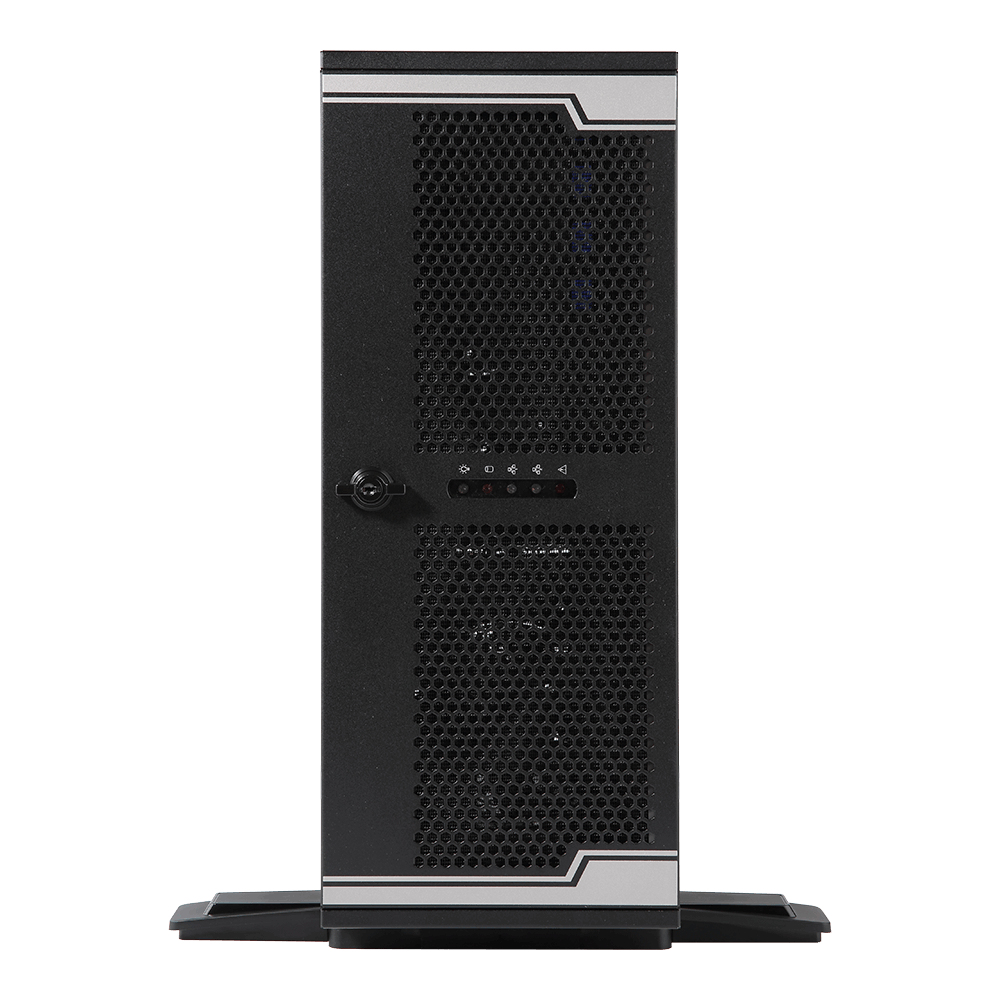

W281-G40 server barebone Intel® C422 LGA 2066 (Socket R4) Tower Black
Model W281-G40
67 specifications
- ProcessorIntel® Xeon®
- Weight21.5 kg
- ColourBlack
- Built-in processorNo
- Number of DIMM slots8
- Number of storage drives supported5
Overview
- Processor
- Intel® Xeon®
- Weight
- 21.5 kg
- Colour
- Black
- Built-in processor
- No
- Number of DIMM slots
- 8
- Number of storage drives supported
- 5
- Brand
- GIGABYTE
- Category
- Server Barebone
- Model
- W281-G40
- Part number
- W281-G40
- Also known as
- GIGABYTE W281-G40 server barebone Intel® C422 LGA 2066 (Socket R4) Tower Black
Specifications
67 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Motherboard chipset | Intel® C422 |
| Processor socket | LGA 2066 (Socket R4) |
| Processor family | Intel® Xeon® |
| Number of processors supported | 1 |
| Compatible processor series | Intel Xeon W |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 8 |
| Supported memory types | DDR4-SDRAM |
| Maximum internal memory | 128 GB |
| Supported RDIMM clock speeds | 1866,2133,2400,2666 MHz |
| Memory voltage | 1.2 V |
| Memory channels | Quad-channel |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 5 |
| Hot-swap HDD bays | No |
| Number of 2.5" bays | 1 |
| Number of 3.5" bays | 4 |
| Storage drive sizes supported | 2.5,3.5" |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA III |
| RAID levels | 0, 1, 5, 10 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Intel I210 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 10 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Internal USB 2.0 ports quantity | 2 |
| Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 1 |
| S/PDIF out port | Yes |
| Number of SATA III connectors | 10 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 7 |
| Number of M.2 (M) slots | 1 |
Features
| Specification | Value |
|---|---|
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC1150 |
| Trusted Platform Module (TPM) | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Black |
| LED indicators | Yes |
| On/off switch | Yes |
| Reset button | Yes |
| Number of fans | 4 fan(s) |
Power
| Specification | Value |
|---|---|
| Power supply | 1200 W |
| Number of main power supplies | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 8 - 16 A |
| DC output current (+5 V) | 30 A |
| DC output current (+12 V) | 100 A |
| 80 PLUS certification | 80 PLUS Gold |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 8 - 80% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 95% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 595 mm |
| Height | 178 mm |
| Weight | 21.5 kg |
| Width | 438 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 918 mm |
| Package depth | 630 mm |
| Package height | 373 mm |
| Package weight | 30 kg |
