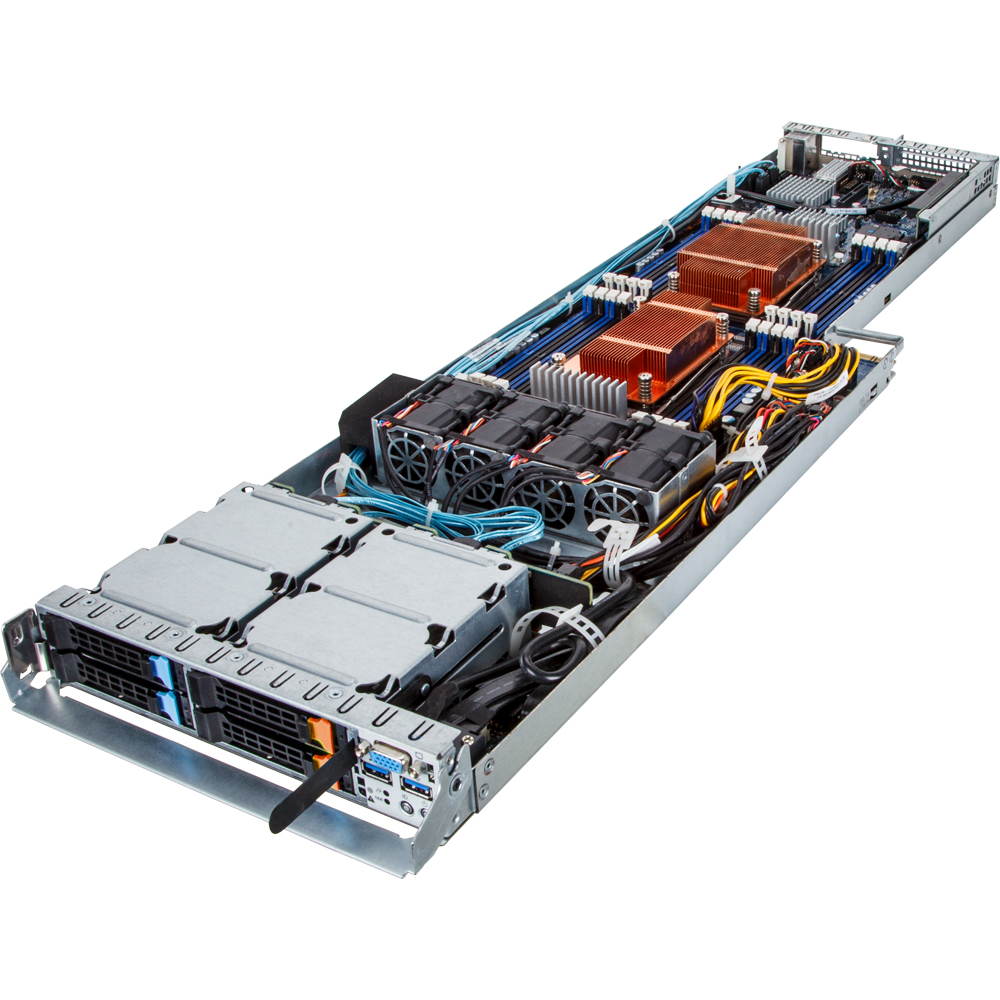

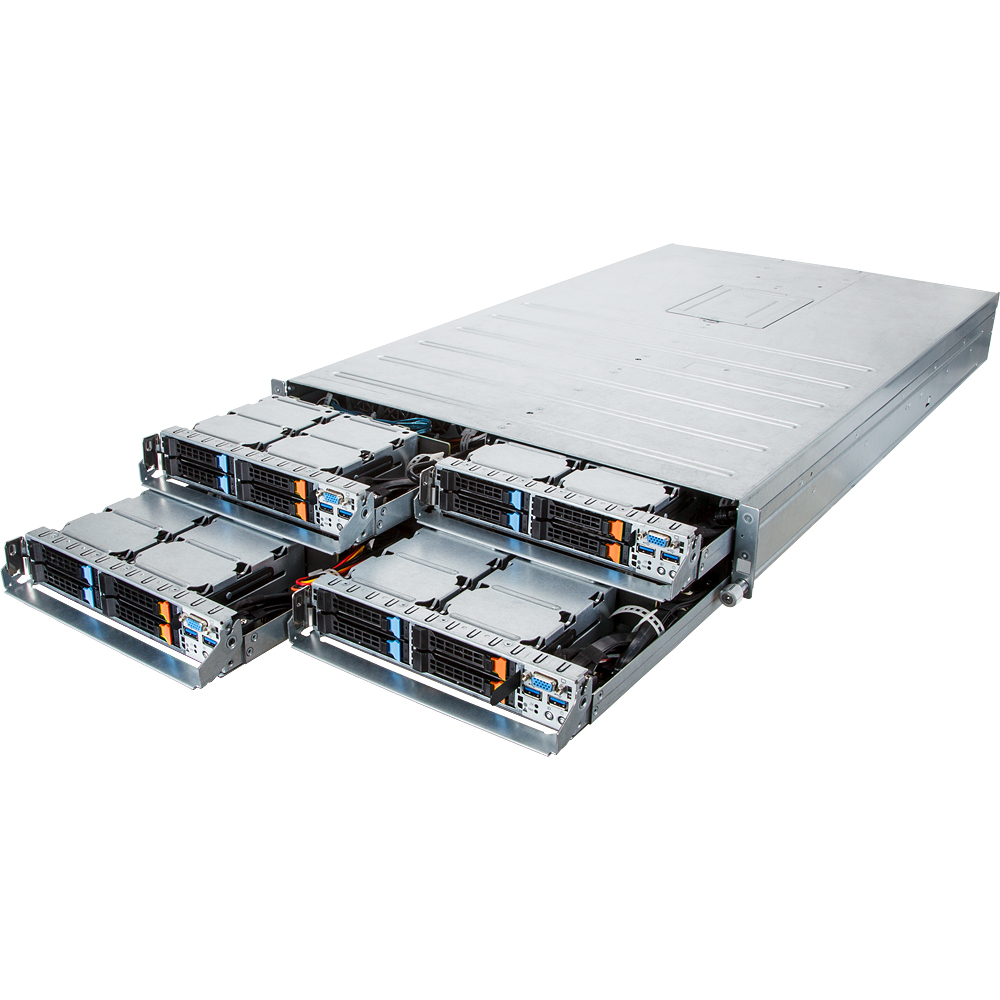

H27N-H70 Intel® C612 LGA 2011-v3 Rack (2U) Black, Grey
Model H27N-H70Part no. 6NH27NH70MR-00EAN 4719331252069
69 specifications
- Weight38 kg
- ColourBlack, Grey
- Built-in processorNo
- Number of DIMM slots64
- Number of storage drives supported16
- Number of discrete graphics cards0
Overview
- Weight
- 38 kg
- Colour
- Black, Grey
- Built-in processor
- No
- Number of DIMM slots
- 64
- Number of storage drives supported
- 16
- Number of discrete graphics cards
- 0
- Brand
- GIGABYTE
- Category
- Server Barebone
- Model
- H27N-H70
- Part number
- 6NH27NH70MR-00
- EAN / UPC
- 4719331252069
- Also known as
- GIGABYTE H27N-H70 Intel® C612 LGA 2011-v3 Rack (2U) Black, Grey
Specifications
69 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Motherboard chipset | Intel® C612 |
| Processor socket | LGA 2011-v3 |
| Number of processors supported | 8 |
| System bus type | Front-Side Bus (FSB) |
| Compatible processor series | Intel® Xeon® |
| Intel Xeon series | E5-2600 |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 64 |
| Supported memory types | DDR4-SDRAM |
| Supported RDIMM clock speeds | 1600,1866,2133,2400 MHz |
| Memory voltage | 1.2 V |
| ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 16 |
| Hot-swap HDD bays | Yes |
| Number of 3.5" bays | 16 |
| Storage drive sizes supported | 2.5" |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | Serial ATA |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Number of discrete graphics cards | 0 |
| On-board graphics card model | Aspeed AST2400 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Intel® I350-AM2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 16 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 12 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 0 |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | Yes |
| Microphone in | Yes |
| Number of SATA III connectors | 6 |
| Number of SAS ports | 0 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 0 |
Features
| Specification | Value |
|---|---|
| PC health monitoring | Fan, Temperature, Voltage |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84714100 |
Processor special features
| Specification | Value |
|---|---|
| Intelligent Platform Management Interface (IPMI) support | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (2U) |
| Product colour | Black, Grey |
| LED indicators | Yes |
| Fan diameter | 4 cm |
| Number of fans | 16 fan(s) |
Power
| Specification | Value |
|---|---|
| Power supply | 1600 W |
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies installed | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 12/9.48 A |
| 80 PLUS certification | 80 PLUS Platinum |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 8 - 80% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 95% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 780 mm |
| Height | 309 mm |
| Weight | 38 kg |
| Width | 447 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1133 mm |
| Package depth | 724 mm |
| Package height | 261 mm |
