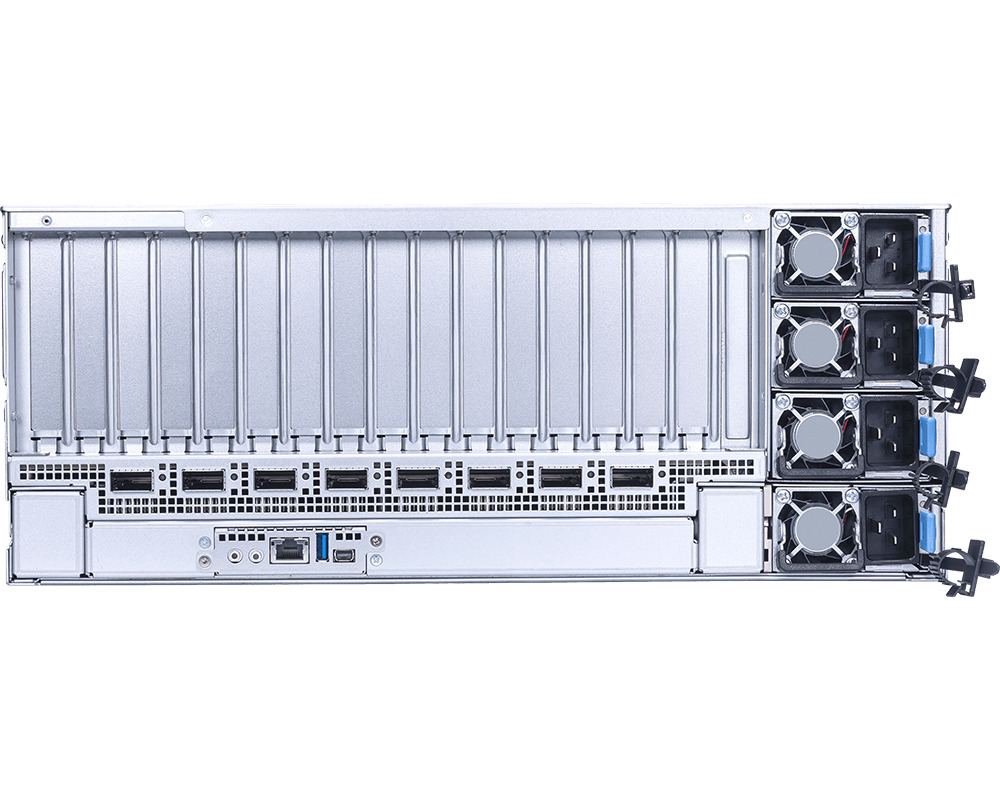

CG481-S6053 server barebone AMD SoC Socket SP5 Rack (4U)
Model CG481-S6053EAN 4711377412001
52 specifications
- ProcessorAMD EPYC
- Built-in processorYes
- Number of DIMM slots24
- Number of storage drives supported10
- On-board graphics card modelAspeed AST2600
- USB 2.0 ports quantity1
Overview
- Processor
- AMD EPYC
- Built-in processor
- Yes
- Number of DIMM slots
- 24
- Number of storage drives supported
- 10
- On-board graphics card model
- Aspeed AST2600
- USB 2.0 ports quantity
- 1
- Brand
- MSI
- Category
- Server Barebone
- Model
- CG481-S6053
- Part number
- CG481-S6053
- EAN / UPC
- 4711377412001
- Also known as
- MSI CG481-S6053 server barebone AMD SoC Socket SP5 Rack (4U)
Specifications
52 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Motherboard chipset | AMD SoC |
| Processor socket | Socket SP5 |
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Processor generation | AMD EPYC™ 9005 Series |
| Number of processors supported | 2 |
| Compatible processor series | AMD EPYC 9005 |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 24 |
| Supported memory types | DDR5-SDRAM |
| Maximum internal memory | 6 TB |
| Maximum RDIMM memory | 6 TB |
| Supported RDIMM clock speeds | 6400 MHz |
| Memory channels | Dodeca-channel |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 10 |
| Hot-swap HDD bays | Yes |
| Number of 2.5" bays | 8 |
| Storage drive sizes supported | 2.5" |
| Supported storage drive types | SSD |
| Supported storage drive interfaces | M.2, PCI Express 3.0, PCI Express 5.0 |
| RAID levels | 0, 1 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2600 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 400 Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| LAN controller | NVIDIA ConnectX-7 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 5.0 |
| Number of M.2 (M) slots | 2 |
Features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (4U) |
| LED indicators | Unit Identification (UID) |
| On/off switch | Yes |
| Cooling type | Active |
| Number of fans | 10 fan(s) |
Power
| Specification | Value |
|---|---|
| Power supply | 3200 W |
| Number of main power supplies | 4 |
| Redundant power supply (RPS) support | Yes |
| 80 PLUS certification | 80 PLUS Titanium |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 8 - 85% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 8 - 90% |
| Storage temperature (T-T) | -30 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 800 mm |
| Height | 175 mm |
| Width | 438.5 mm |
Other features
| Specification | Value |
|---|---|
| Memory slots | 24x DIMM |
| Number of processors installed | 2 |
| On-board graphics card | Yes |
