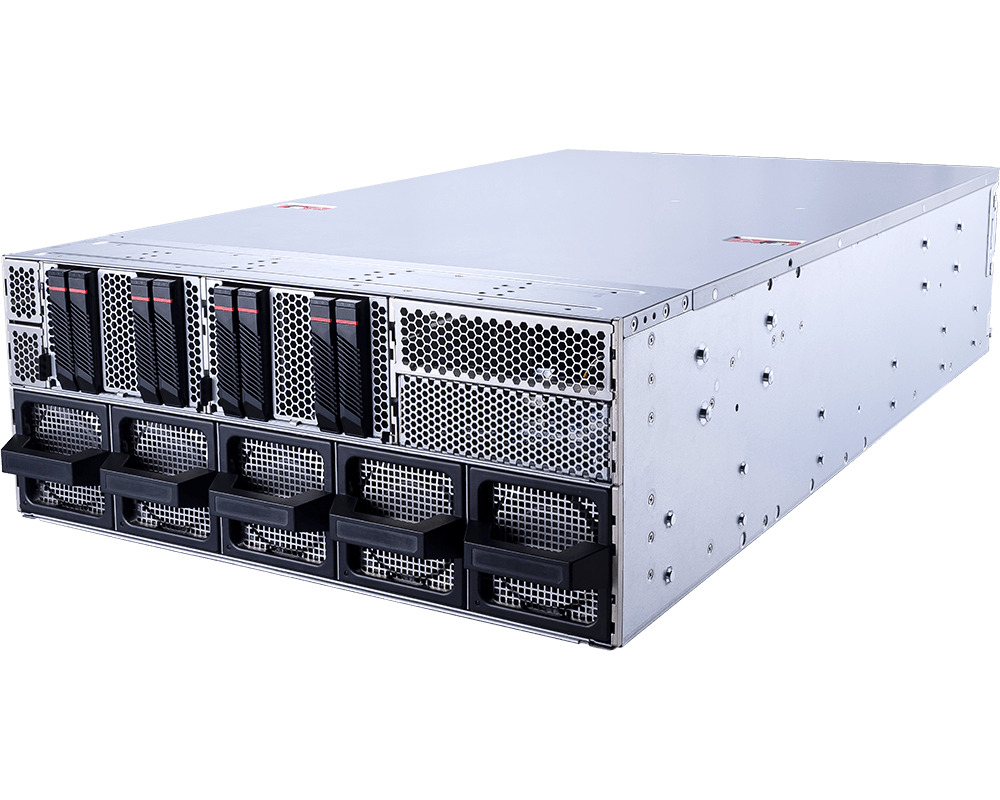

CG480-S6053 server barebone AMD SoC Socket SP5 Rack (4U)
MSI

CG480-S6053 server barebone AMD SoC Socket SP5 Rack (4U)

Model CG480-S6053EAN 4711377392624

44 specifications
  • ProcessorAMD EPYC
  • Built-in processorNo
  • Number of DIMM slots24
  • Number of storage drives supported10
  • On-board graphics card modelAspeed AST2600
  • Ethernet LANYes
See all specifications

Overview

Processor
AMD EPYC
Built-in processor
No
Number of DIMM slots
24
Number of storage drives supported
10
On-board graphics card model
Aspeed AST2600
Ethernet LAN
Yes
Brand
MSI
Model
CG480-S6053
Part number
CG480-S6053
EAN / UPC
4711377392624
Also known as
MSI CG480-S6053 server barebone AMD SoC Socket SP5 Rack (4U)

Specifications

44 specifications in 12 groups

Processor

Built-in processorNo
Motherboard chipsetAMD SoC
Processor socketSocket SP5
Processor manufacturerAMD
Processor familyAMD EPYC
Number of processors supported2
Compatible processor seriesAMD EPYC 9005

Memory

Number of DIMM slots24
Supported memory typesDDR5-SDRAM
Maximum RDIMM memory6 TB
Supported RDIMM clock speeds6400 MHz
Memory channelsDodeca-channel

Storage

Number of storage drives supported10
Hot-swap HDD baysYes
Number of 2.5" bays8
Storage drive sizes supported2.5,M.2,U.2
Supported storage drive typesSSD
Supported storage drive interfacesM.2, PCI Express 3.0, PCI Express 5.0
RAID levels0, 1

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface type10 Gigabit Ethernet, Gigabit Ethernet
Ethernet LAN data rates1000,10000 Mbit/s
LAN controllerIntel X710-AT2

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Ethernet LAN (RJ-45) ports3

Expansion slots

PCI Express slots version3.0, 5.0
Number of M.2 (M) slots2

Features

Trusted Platform Module (TPM)Yes

Design

Chassis typeRack (4U)
LED indicatorsUnit Identification (UID)
On/off switchYes
Cooling typeActive

Power

Power supply3200 W
Number of main power supplies4
Redundant power supply (RPS) supportYes
80 PLUS certification80 PLUS Titanium

Operational conditions

Operating relative humidity (H-H)8 - 85%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)8 - 90%
Storage temperature (T-T)-30 - 60 °C

Weight & dimensions

Depth800 mm
Height175 mm
Width438.5 mm
