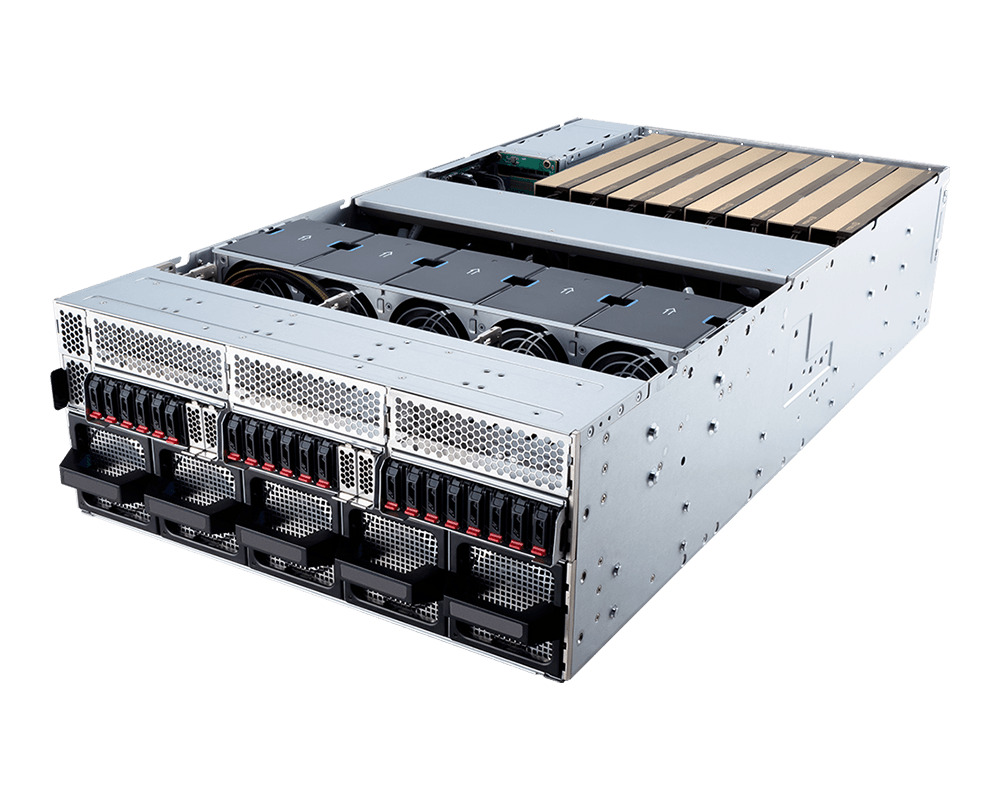

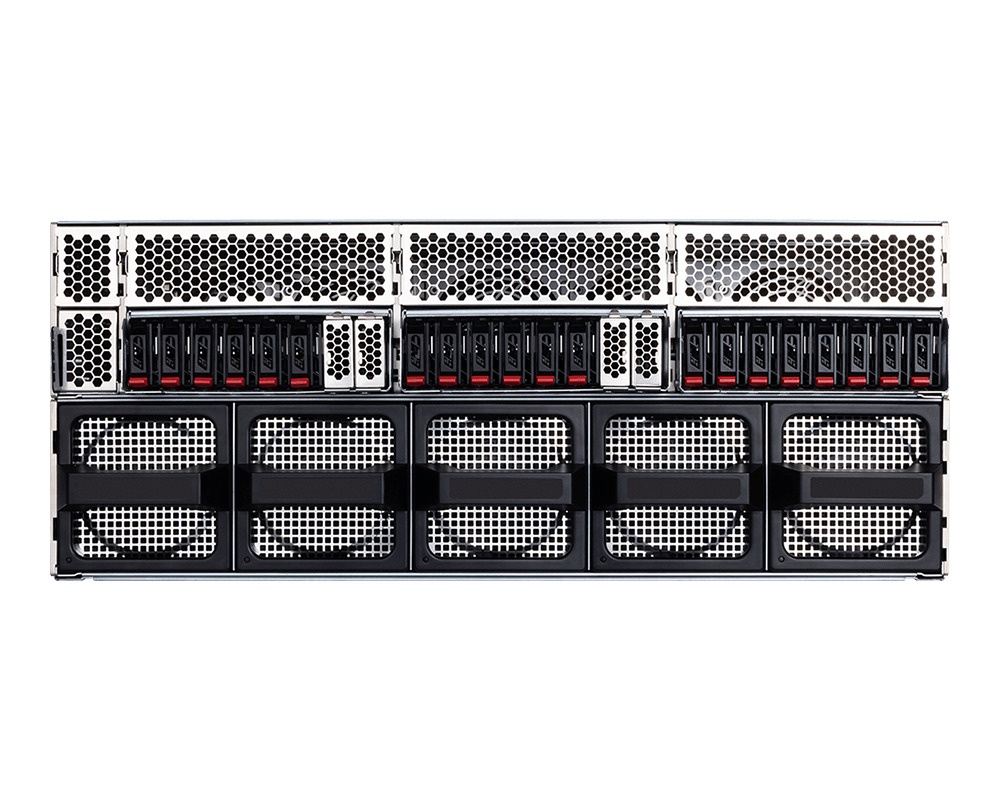

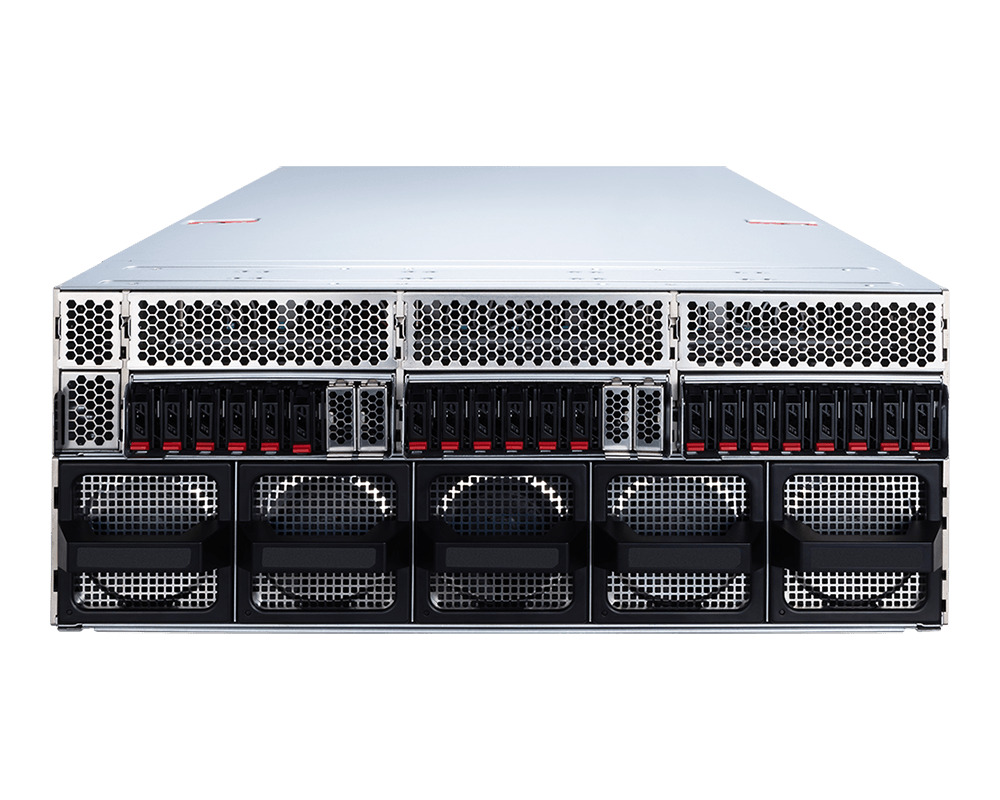

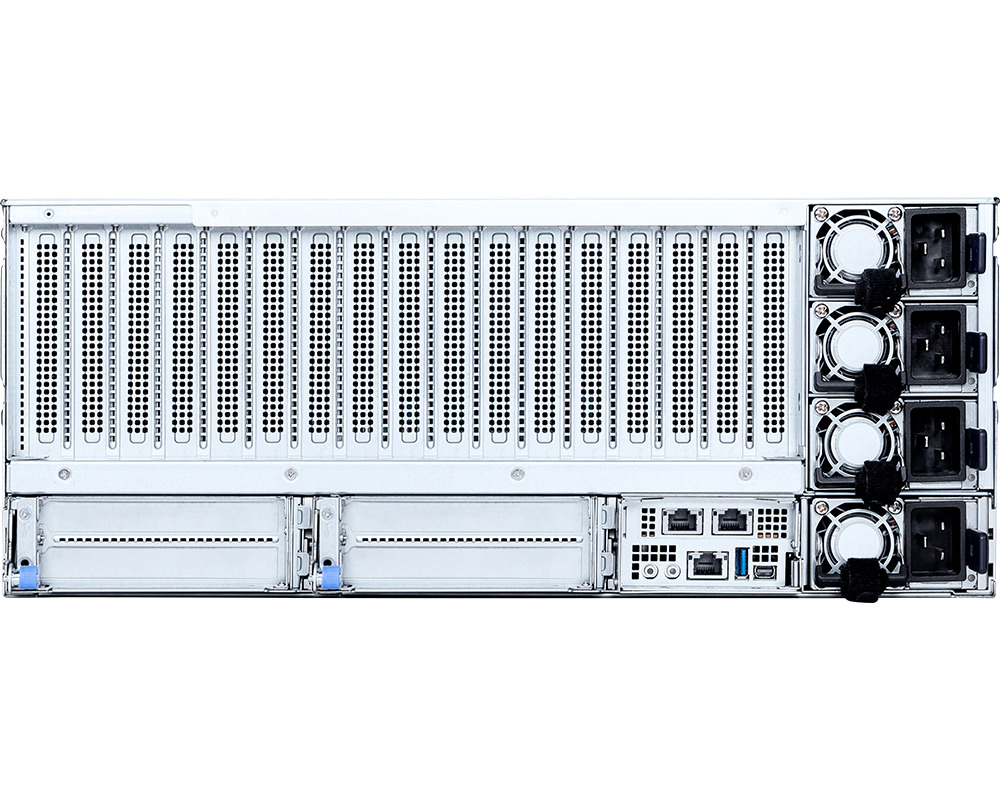

CG480-S5063 server barebone Intel C741 LGA 4710 Rack (4U)
MSI

CG480-S5063 server barebone Intel C741 LGA 4710 Rack (4U)

Model CG480-S5063EAN 4711377345132

46 specifications
  • ProcessorIntel
  • Built-in processorNo
  • Number of DIMM slots32
  • Hot-swap HDD baysYes
  • On-board graphics card modelAspeed AST2600
  • USB 2.0 ports quantity1
See all specifications

Overview

Processor
Intel
Built-in processor
No
Number of DIMM slots
32
Hot-swap HDD bays
Yes
On-board graphics card model
Aspeed AST2600
USB 2.0 ports quantity
1
Brand
MSI
Model
CG480-S5063
Part number
CG480-S5063
EAN / UPC
4711377345132
Also known as
MSI CG480-S5063 server barebone Intel C741 LGA 4710 Rack (4U)

Specifications

46 specifications in 13 groups

Processor

Built-in processorNo
Motherboard chipsetIntel C741
Processor socketLGA 4710
Processor manufacturerIntel
Processor familyIntel
Processor generationIntel Xeon 6
Number of processors supported2
Compatible processor seriesIntel® Xeon®

Memory

Number of DIMM slots32
Supported memory typesDDR5-SDRAM
Supported RDIMM clock speeds5200,6400 MHz
Memory channelsOcta-channel

Storage

Hot-swap HDD baysYes
Storage drive sizes supportedE1.S,M.2
Supported storage drive typesSSD
Supported storage drive interfacesPCI Express 5.0
RAID levels0, 1, 5, 10

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface type10 Gigabit Ethernet, Gigabit Ethernet
Ethernet LAN data rates1000,10000 Mbit/s
LAN controllerIntel X710-AT2

Ports & interfaces

USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Ethernet LAN (RJ-45) ports2

Expansion slots

PCI Express slots version5.0
Number of M.2 (M) slots2

Features

Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0

Design

Chassis typeRack (4U)
LED indicatorsUnit Identification (UID)
On/off switchYes
Cooling typeActive
Fan diameter8 cm
Number of fans10 fan(s)

Power

Power supply3200 W
Number of main power supplies4
Redundant power supply (RPS) supportYes
80 PLUS certification80 PLUS Titanium

Operational conditions

Operating temperature (T-T)0 - 35 °C
Storage relative humidity (H-H)5 - 85%
Storage temperature (T-T)-20 - 70 °C

Weight & dimensions

Depth800 mm
Height175 mm
Width438.5 mm

Other features

Number of processors installed2
