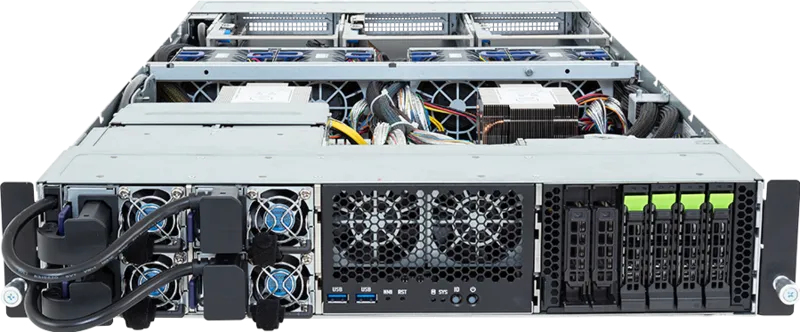

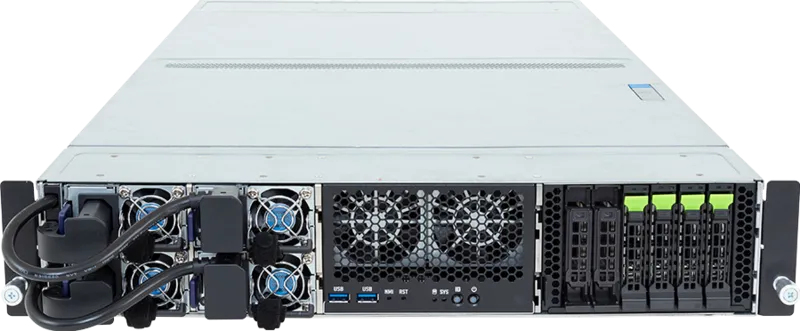

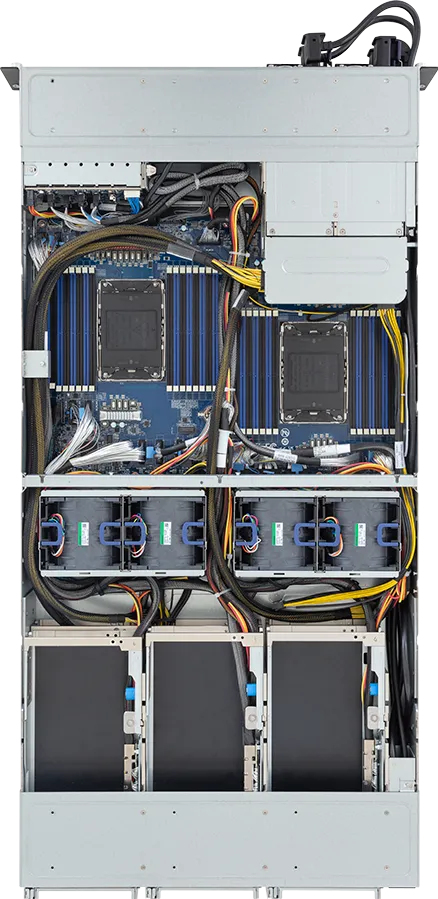

GIGABYTE XV24-SX0-AAJ1 LGA 4710 Rack (2U) Black, Steel
GIGABYTE

XV24-SX0-AAJ1 LGA 4710 Rack (2U) Black, Steel

Model XV24-SX0-AAJ1Part no. 6NXV24SX0DR000AAJ1EAN 4719331863067

48 specifications
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots32
  • Number of storage drives supported6
  • On-board graphics card modelAspeed AST2600
  • Ethernet LANYes
See all specifications

Overview

Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
32
Number of storage drives supported
6
On-board graphics card model
Aspeed AST2600
Ethernet LAN
Yes
Brand
GIGABYTE
Model
XV24-SX0-AAJ1
Part number
6NXV24SX0DR000AAJ1
EAN / UPC
4719331863067
Also known as
GIGABYTE XV24-SX0-AAJ1 LGA 4710 Rack (2U) Black, Steel

Specifications

48 specifications in 13 groups

Processor

Built-in processorNo
Processor socketLGA 4710
Number of processors supported2
Compatible processor seriesIntel® Xeon®

Memory

Number of DIMM slots32
Supported memory typesGDDR5
Memory channelsOcta-channel

Storage

Number of storage drives supported6
Hot-swap HDD baysYes
Number of 2.5" bays4
Storage drive sizes supported2.5,M.2

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface type10 Gigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® X550-AT2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports2

Expansion slots

Number of M.2 (M) slots2

Features

Trusted Platform Module (TPM)Yes
Backplanes supportYes

Design

Chassis typeRack (2U)
Product colourBlack, Steel
LED indicatorsHDD, LAN, Power, System
On/off switchYes
Reset buttonYes
Cooling typeActive
Fan diameter8 cm
Number of fans4 fan(s)

Power

Power supply2000 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current13 - 10 A
80 PLUS certification80 PLUS Titanium

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)5 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth900 mm
Height87 mm
Width438 mm

Packaging data

Packaging content1 x XV24-SX0-AAJ1 2 x CPU heatsinks 1 x Mini-DP to D-Sub cable 2 x GPU power cables (16-pin, 620mm) 2 x GPU power cables (16-pin, 750mm) 4 x Carriers 1 x 3-Section Rail kit
Package width1178 mm
Package depth730 mm
Package height387 mm
