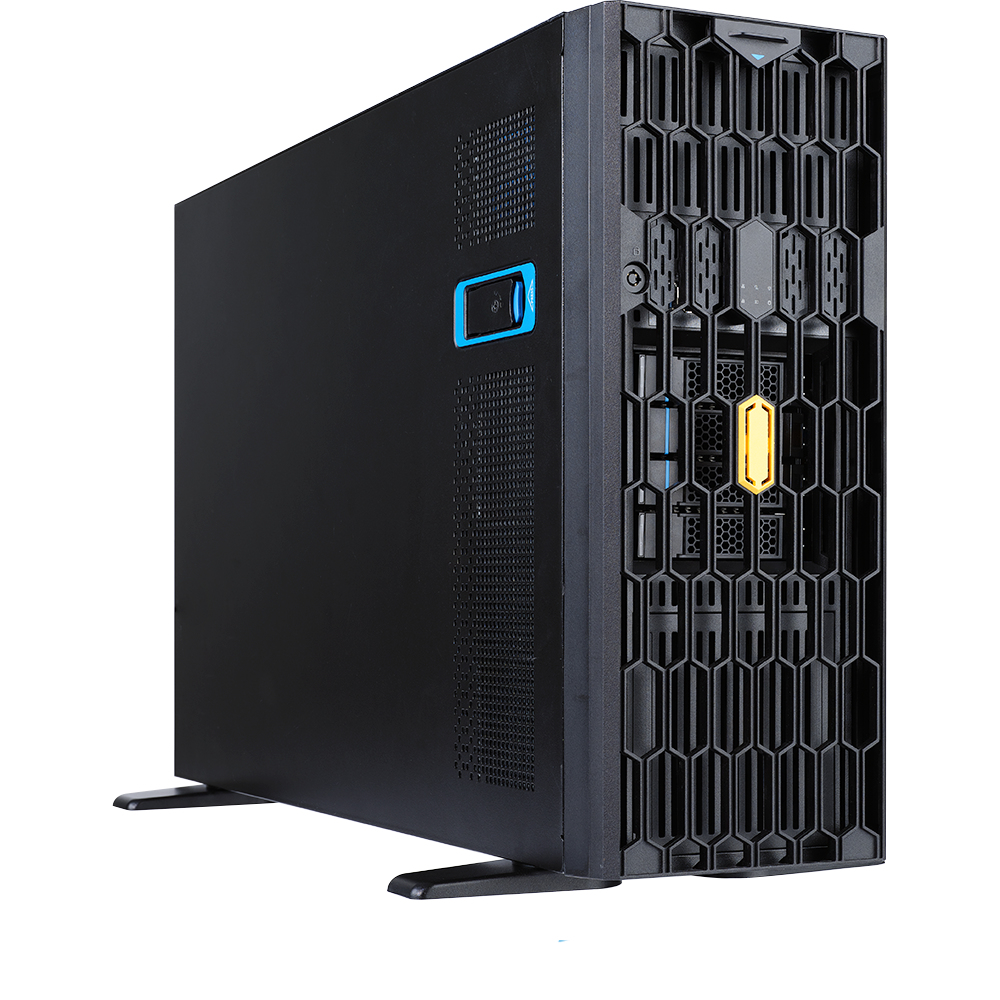

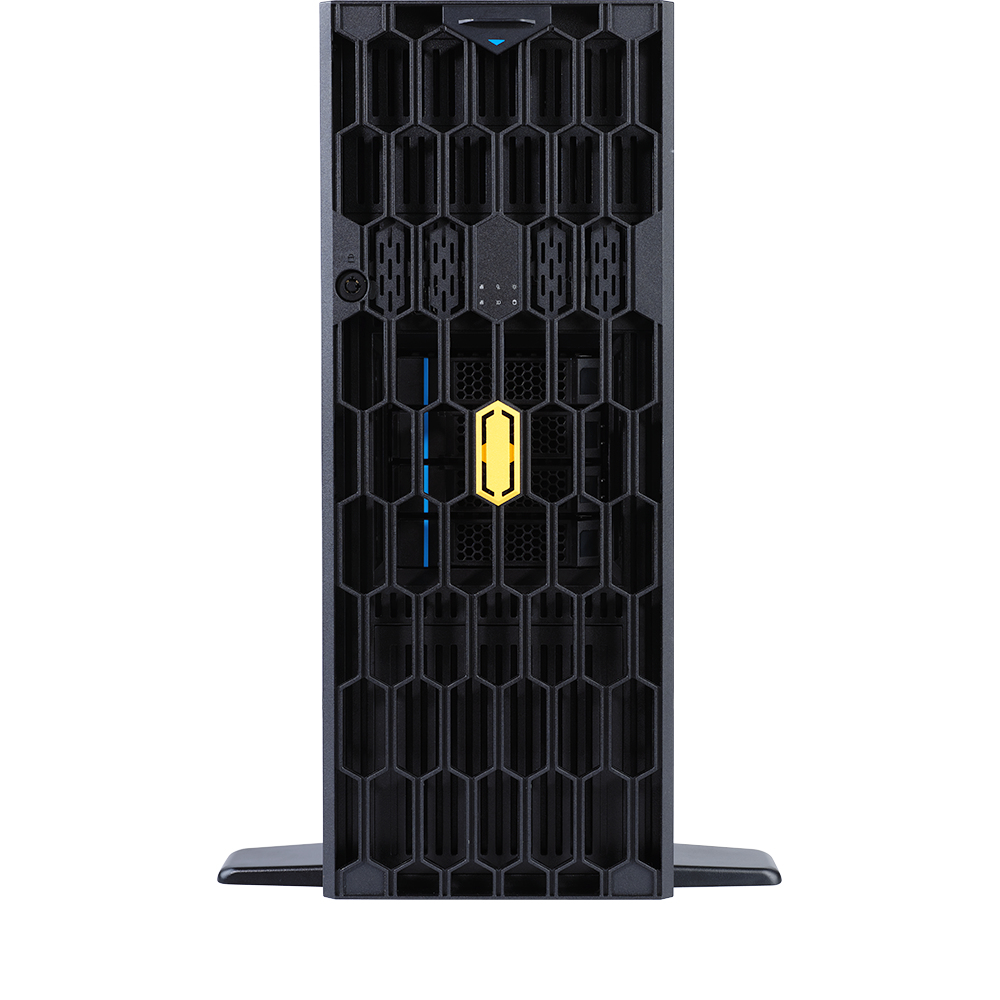

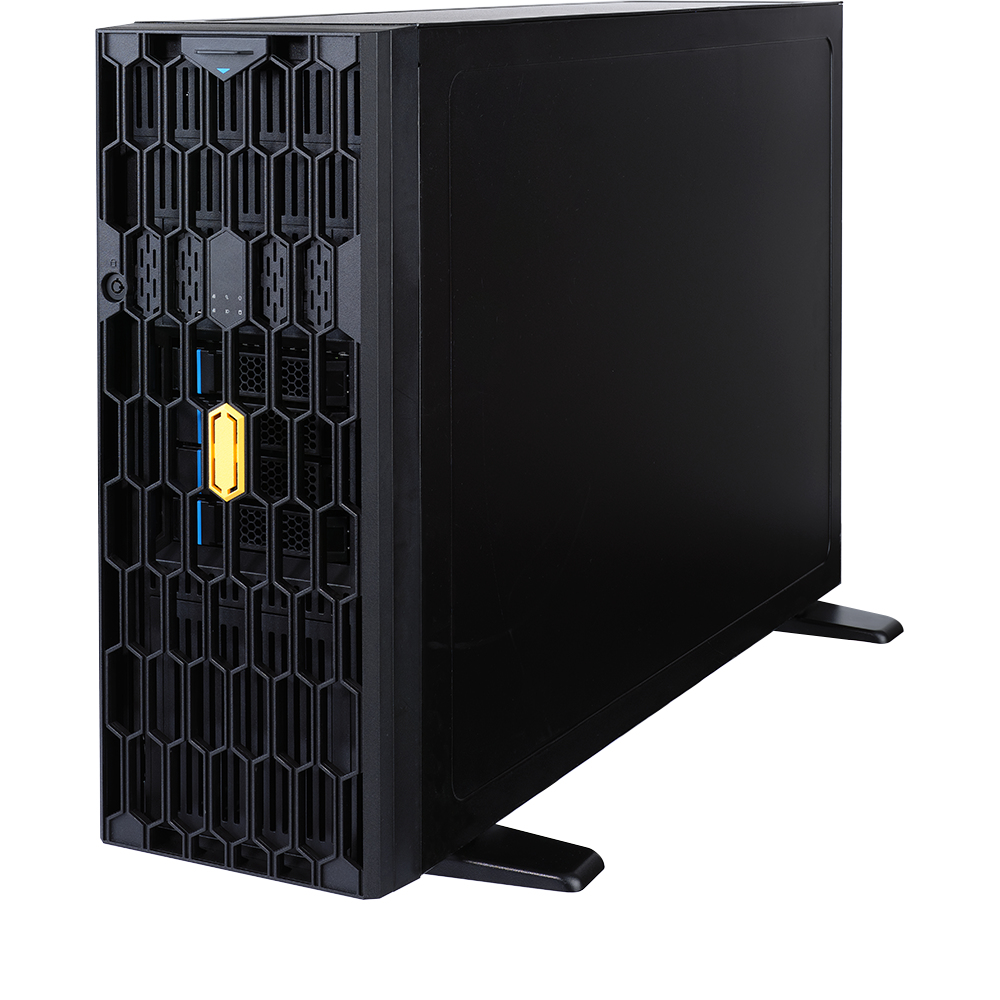

W771-Z00 AMD WRX80 Socket sWRX8 Tower Black
Model W771-Z00Part no. 6BW771Z00MR-00EAN 4719331601157
51 specifications
- Weight22 kg
- ColourBlack
- Motherboard chipsetAMD WRX80
- Number of DIMM slots8
- Number of storage drives supported4
- On-board graphics card modelAspeed AST2600
Overview
- Weight
- 22 kg
- Colour
- Black
- Motherboard chipset
- AMD WRX80
- Number of DIMM slots
- 8
- Number of storage drives supported
- 4
- On-board graphics card model
- Aspeed AST2600
- Brand
- GIGABYTE
- Category
- Server Barebone
- Model
- W771-Z00
- Part number
- 6BW771Z00MR-00
- EAN / UPC
- 4719331601157
- Also known as
- GIGABYTE W771-Z00 AMD WRX80 Socket sWRX8 Tower Black
Specifications
51 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Motherboard chipset | AMD WRX80 |
| Processor socket | Socket sWRX8 |
| Number of processors supported | 1 |
| Compatible processor series | AMD Ryzen™ Threadripper™ |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 8 |
| Supported memory types | DDR4-SDRAM |
| Supported DIMM module capacities | 128GB |
| Supported RDIMM clock speeds | 2133,2400,2666,2933,3200 MHz |
| Memory channels | Octa-channel |
| ECC | Yes |
| Non-ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 4 |
| Hot-swap HDD bays | Yes |
| Number of 3.5" bays | 4 |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2600 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| LAN controller | Intel I210, Intel® X550-AT2 |

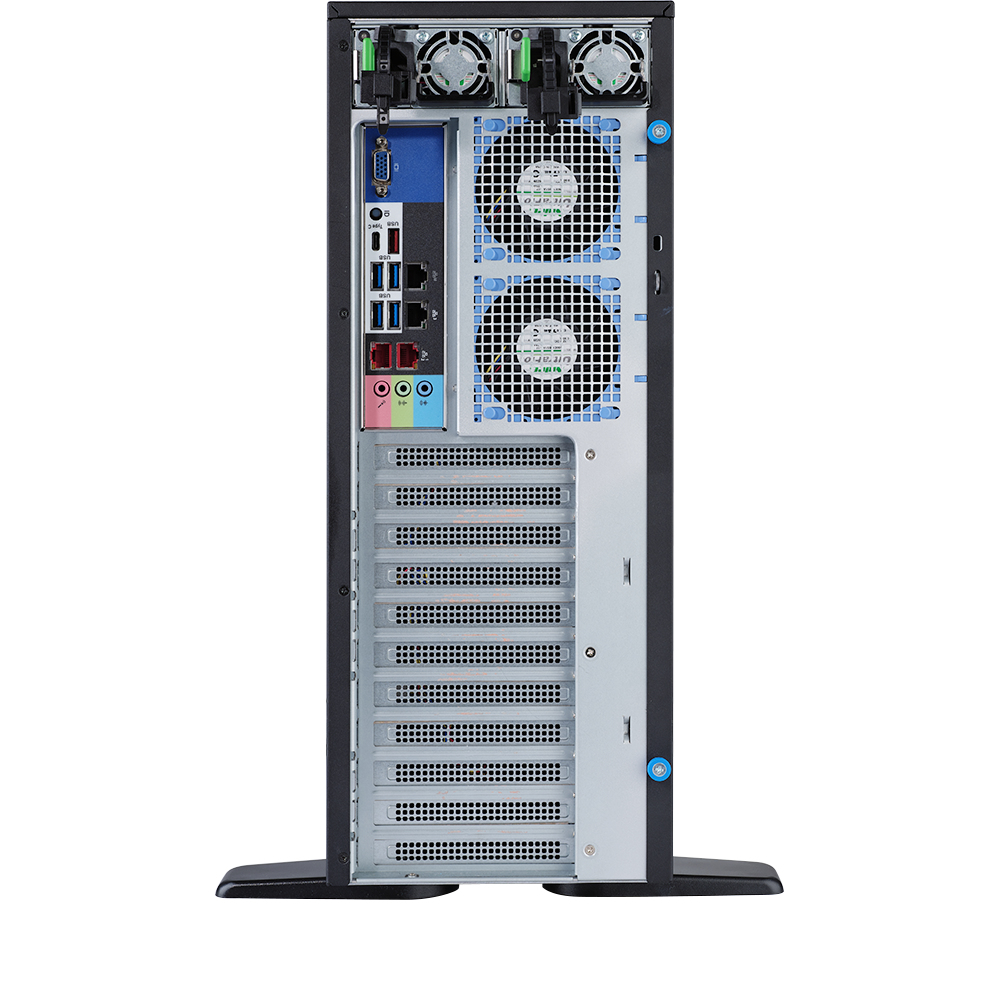

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 3 |
| VGA (D-Sub) ports quantity | 1 |

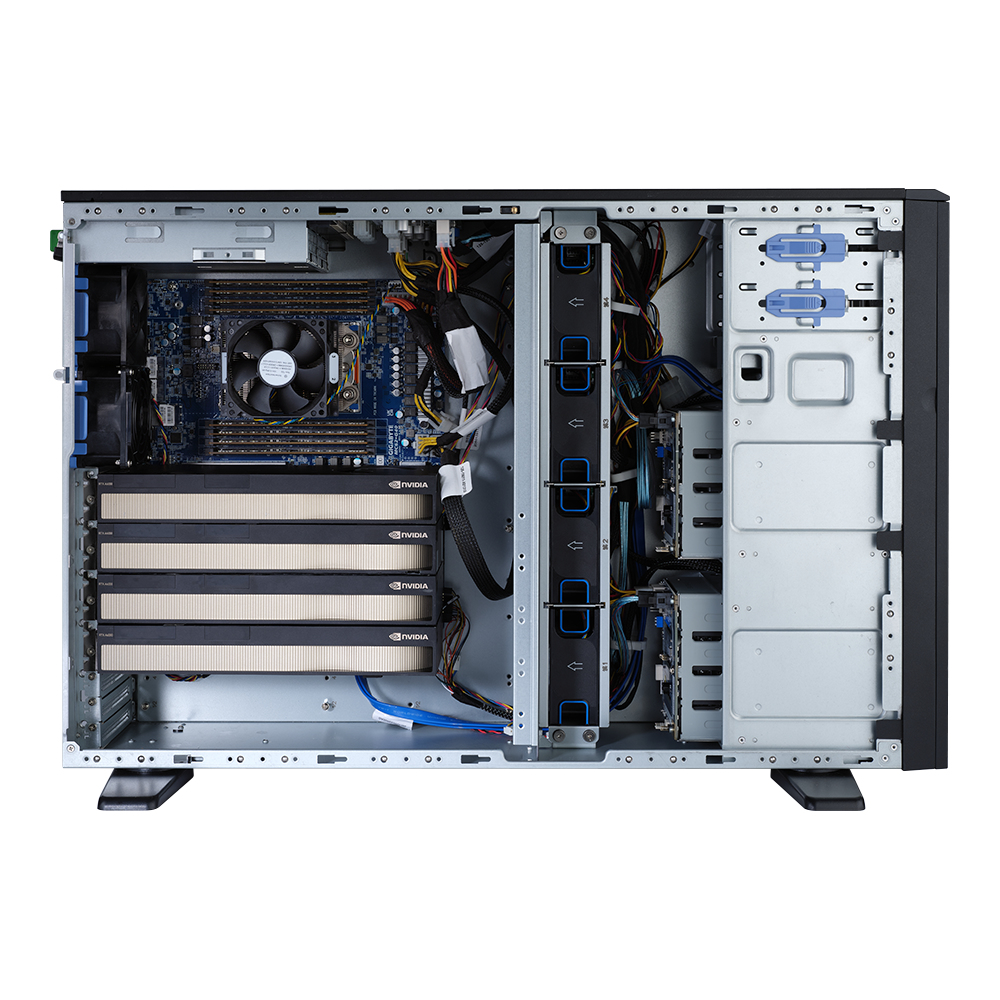

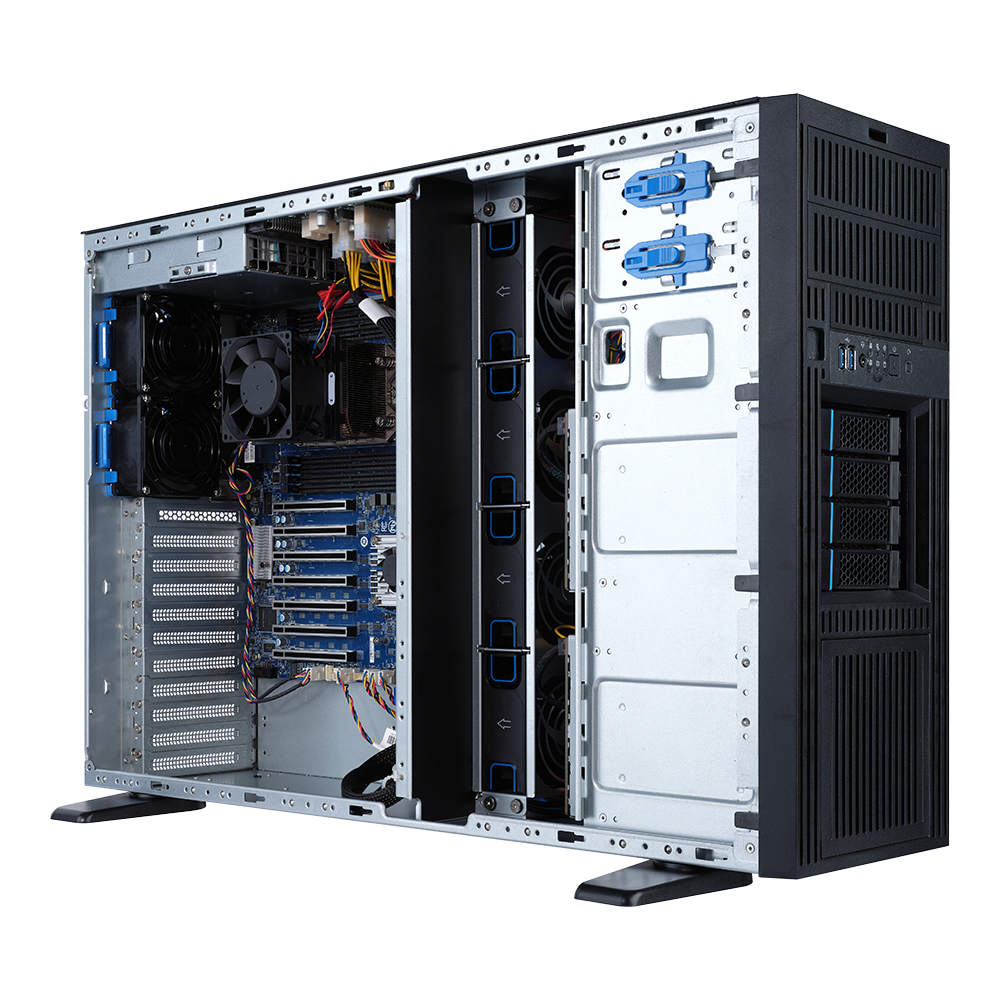

Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 7 |
| Number of M.2 (M) slots | 2 |
Features
| Specification | Value |
|---|---|
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC4080 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84714100 |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Product colour | Black |
| LED indicators | Yes |
| On/off switch | Yes |
| Reset button | Yes |
| Fan diameter | 8 cm |
| Number of fans | 6 fan(s) |
Power
| Specification | Value |
|---|---|
| Power supply | 2000 W |
| Number of main power supplies | 2 |
| 80 PLUS certification | 80 PLUS Platinum |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 8 - 80% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 95% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 438 mm |
| Height | 175 mm |
| Weight | 22 kg |
| Width | 680 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1078 mm |
| Package depth | 588 mm |
| Package height | 388 mm |
| Package weight | 24 kg |
