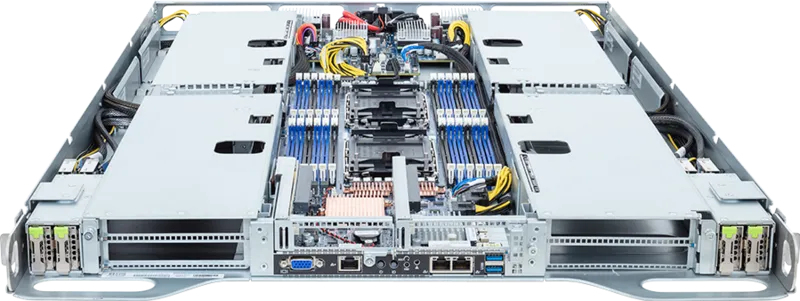

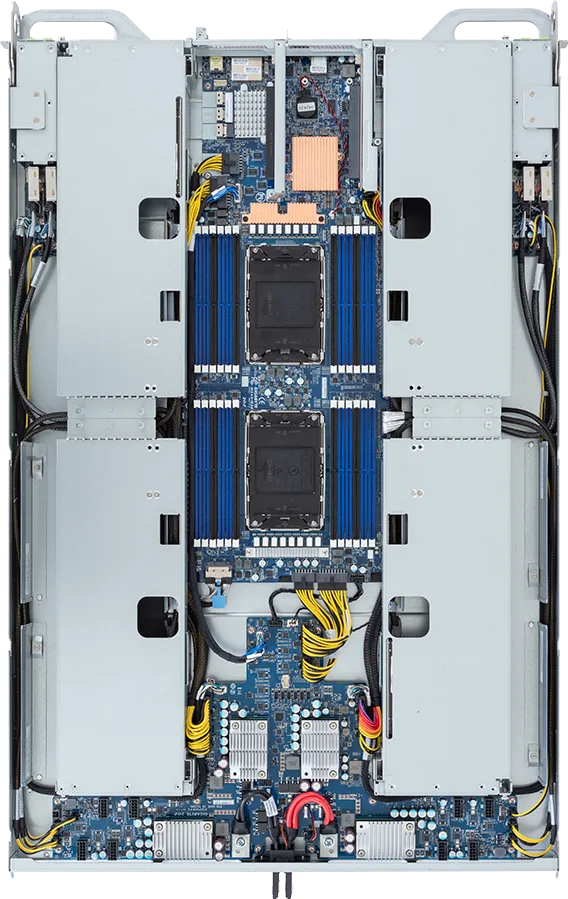

TO15-S40-IA01 Rack (10U) Black, Steel
Model TO15-S40-IA01Part no. 6NTO15S40DR000IA01EAN 4719331856694
39 specifications
- Weight24.8 kg
- ColourBlack, Steel
- Built-in processorNo
- Number of DIMM slots24
- Number of storage drives supported6
- On-board graphics card modelAspeed AST2600
Overview
- Weight
- 24.8 kg
- Colour
- Black, Steel
- Built-in processor
- No
- Number of DIMM slots
- 24
- Number of storage drives supported
- 6
- On-board graphics card model
- Aspeed AST2600
- Brand
- GIGABYTE
- Category
- Server Barebone
- Model
- TO15-S40-IA01
- Part number
- 6NTO15S40DR000IA01
- EAN / UPC
- 4719331856694
- Also known as
- GIGABYTE TO15-S40-IA01 Rack (10U) Black, Steel
Specifications
39 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Compatible processor series | Intel® Xeon® |
Memory
| Specification | Value |
|---|---|
| Number of DIMM slots | 24 |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Octa-channel |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 6 |
| Hot-swap HDD bays | Yes |
| Storage drive sizes supported | E1.S |
| Supported storage drive types | HDD & SSD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Aspeed AST2600 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| LAN controller | Intel X710-AT2 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| Number of M.2 (M) slots | 2 |
Features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Backplanes support | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Rack (10U) |
| Product colour | Black, Steel |
| LED indicators | HDD, LAN, Status |
| On/off switch | Yes |
| Reset button | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 8 - 80% |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 95% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 805.7 mm |
| Height | 45 mm |
| Weight | 24.8 kg |
| Width | 537 mm |
Packaging data
| Specification | Value |
|---|---|
| Packaging content | 1 x TO15-S40-IA01 2 x CPU heatsinks 4 x GPU power cables (16-pin, 550mm) 6 x Carriers |
| Package width | 1100 mm |
| Package depth | 715 mm |
| Package height | 249 mm |
| Package weight | 29.8 kg |
