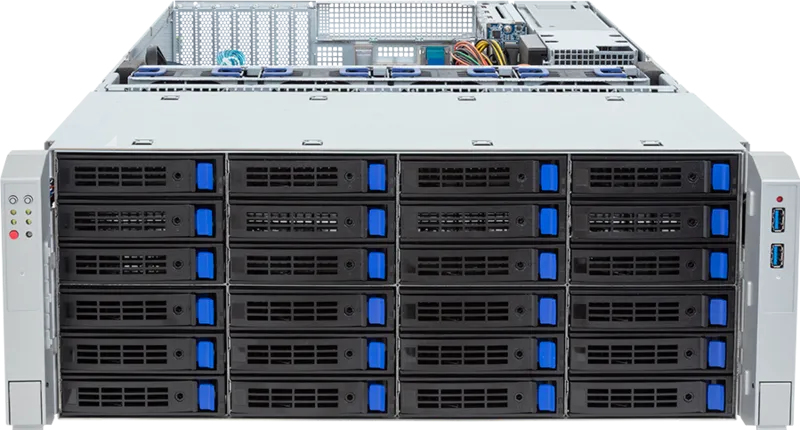

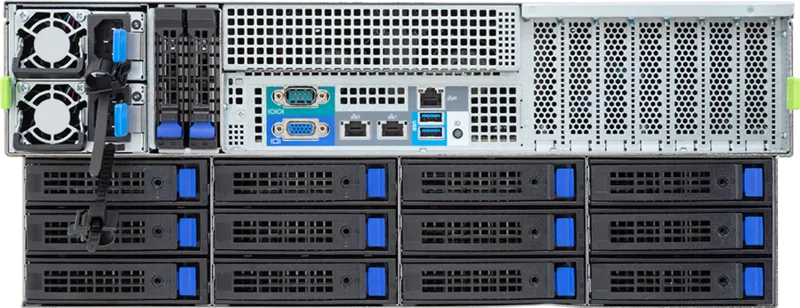

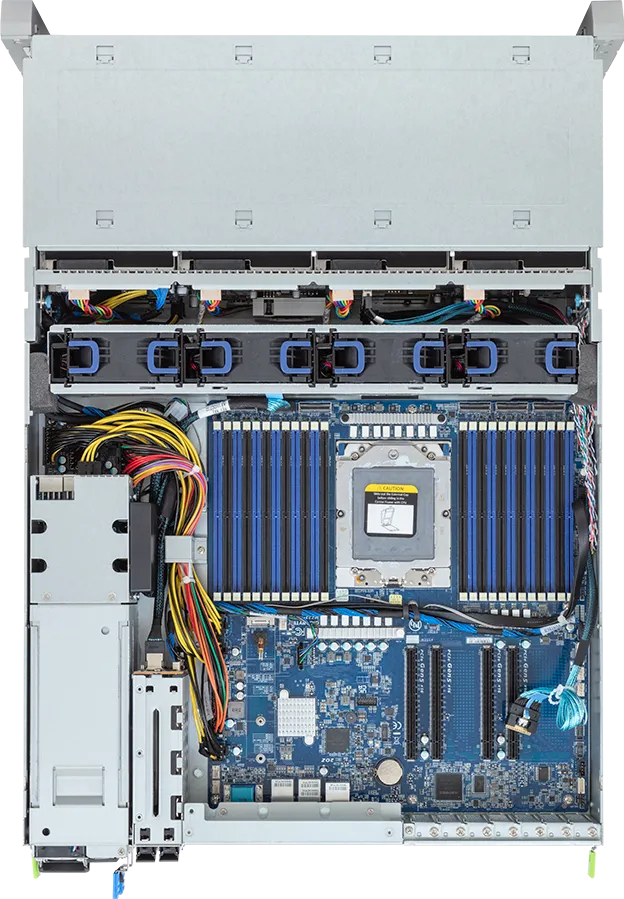

GIGABYTE S453-Z30-AAV1 LGA 6096 Rack (4U) Black, Steel
GIGABYTE

S453-Z30-AAV1 LGA 6096 Rack (4U) Black, Steel

Model S453-Z30-AAV1Part no. 6NS453Z30MR000AAV1EAN 4719331855130

52 specifications
  • Weight43.9 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots24
  • Number of storage drives supported39
  • On-board graphics card modelAspeed AST2600
See all specifications

Overview

Weight
43.9 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
24
Number of storage drives supported
39
On-board graphics card model
Aspeed AST2600
Brand
GIGABYTE
Model
S453-Z30-AAV1
Part number
6NS453Z30MR000AAV1
EAN / UPC
4719331855130
Also known as
GIGABYTE S453-Z30-AAV1 LGA 6096 Rack (4U) Black, Steel

Specifications

52 specifications in 13 groups

Processor

Built-in processorNo
Processor socketLGA 6096
Number of processors supported1
Compatible processor seriesAMD EPYC 9004

Memory

Number of DIMM slots24
Supported memory typesDDR5-SDRAM
Memory channelsDodeca-channel

Storage

Number of storage drives supported39
Hot-swap HDD baysYes
Storage drive sizes supported2.5,M.2,3.5
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA, Serial Attached SCSI (SAS)

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports2
Mini DisplayPorts quantity1
VGA (D-Sub) ports quantity1

Expansion slots

Number of M.2 (M) slots1

Features

Trusted Platform Module (TPM)Yes
Backplanes supportYes

Design

Chassis typeRack (4U)
Product colourBlack, Steel
LED indicatorsHDD, LAN, Status
On/off switchYes
Reset buttonYes
Cooling typeActive
Fan diameter8 cm
Number of fans8 fan(s)

Power

Power supply1600 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
AC input voltage110 - 240 V
AC input frequency50/60 Hz
Input current12 - 10 A
80 PLUS certification80 PLUS Titanium

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth625 mm
Height174.3 mm
Weight43.9 kg
Width448.5 mm

Packaging data

Packaging content1 x S453-Z30-AAV1 1 x CPU heatsink 1 x 3-Section Rail kit
Package width860 mm
Package depth630 mm
Package height290 mm
Package weight48 kg
