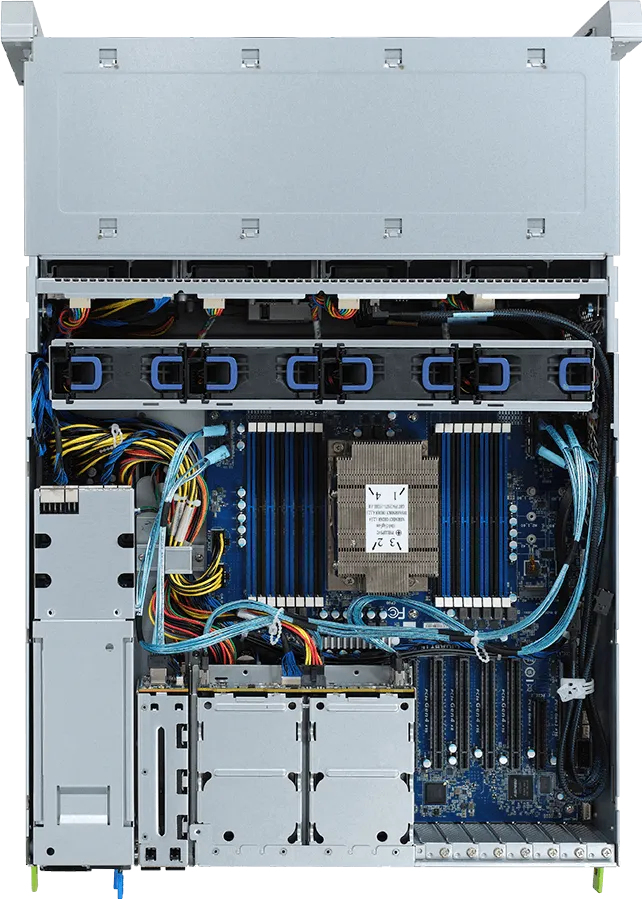

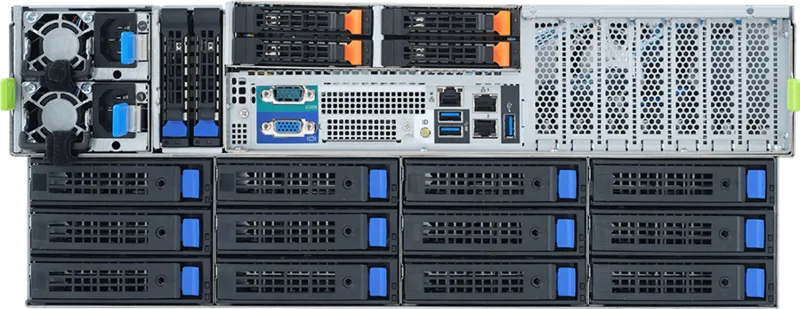

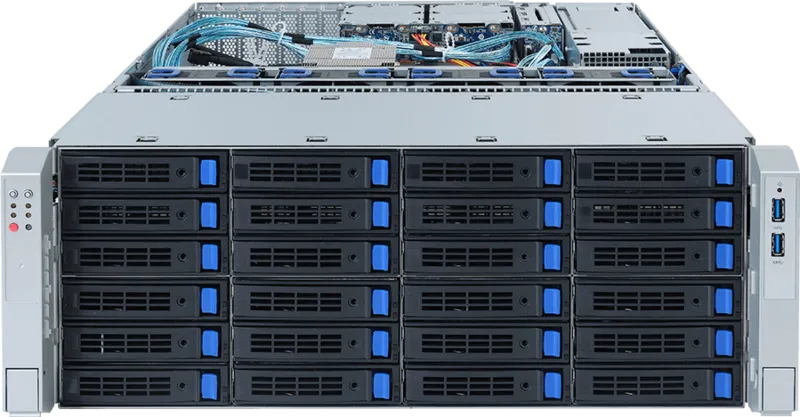

GIGABYTE S452-Z30 LGA 4094 Rack (4U) Black, Steel
GIGABYTE

S452-Z30 LGA 4094 Rack (4U) Black, Steel

Model S452-Z30Part no. 6NS452Z30MR-00EAN 4719331600280

53 specifications
  • Weight30 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots16
  • Number of storage drives supported44
  • On-board graphics card modelAspeed AST2500
See all specifications

Overview

Weight
30 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
16
Number of storage drives supported
44
On-board graphics card model
Aspeed AST2500
Brand
GIGABYTE
Model
S452-Z30
Part number
6NS452Z30MR-00
EAN / UPC
4719331600280
Also known as
GIGABYTE S452-Z30 LGA 4094 Rack (4U) Black, Steel

Specifications

53 specifications in 13 groups

Processor

Built-in processorNo
Processor socketLGA 4094
Number of processors supported1
Compatible processor seriesAMD EPYC 7003, AMD EPYC 7002

Memory

Number of DIMM slots16
Supported memory typesDDR4-SDRAM
Memory channelsOcta-channel

Storage

Number of storage drives supported44
Hot-swap HDD baysYes
Storage drive sizes supported2.5,M.2,3.5
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA, Serial Attached SCSI (SAS)

Graphics

On-board graphics card modelAspeed AST2500

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity5
Ethernet LAN (RJ-45) ports2
Mini DisplayPorts quantity1
VGA (D-Sub) ports quantity1

Expansion slots

Number of M.2 (M) slots2

Features

Trusted Platform Module (TPM)Yes
Backplanes supportYes

Design

Chassis typeRack (4U)
Product colourBlack, Steel
LED indicatorsHDD, LAN, Status
On/off switchYes
Reset buttonYes
Cooling typeActive
Fan diameter8 cm
Number of fans8 fan(s)

Power

Power supply1200 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
AC input voltage110 - 240 V
AC input frequency47 - 63 Hz
Input current12.47 - 7.08 A
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth625 mm
Height177 mm
Weight30 kg
Width482.6 mm

Packaging data

Packaging content1 x S452-Z30 1 x CPU heatsink 1 x 3-Section Rail kit
Package width843 mm
Package depth610 mm
Package height290 mm
Package weight48.4 kg
