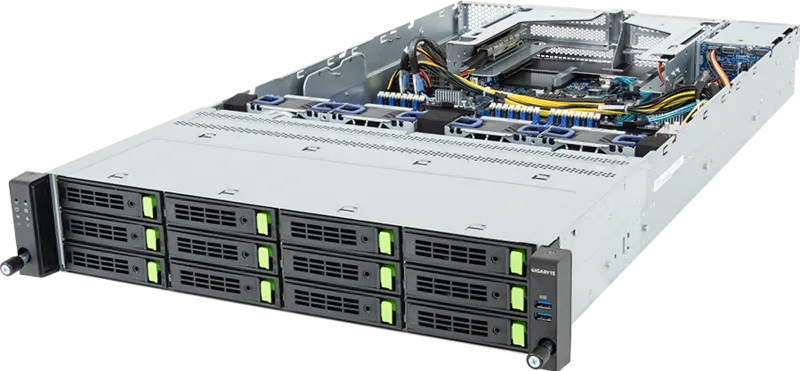

GIGABYTE R284-S93-AAL1 LGA 4710 Rack (2U) Black, Steel
GIGABYTE

R284-S93-AAL1 LGA 4710 Rack (2U) Black, Steel

Model R284-S93-AAL1Part no. 6NR284S93DR000AAL1

53 specifications
  • Weight21.2 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots32
  • Number of storage drives supported16
  • On-board graphics card modelAspeed AST2600
See all specifications

Overview

Weight
21.2 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
32
Number of storage drives supported
16
On-board graphics card model
Aspeed AST2600
Brand
GIGABYTE
Model
R284-S93-AAL1
Part number
6NR284S93DR000AAL1
Also known as
GIGABYTE R284-S93-AAL1 LGA 4710 Rack (2U) Black, Steel

Specifications

53 specifications in 13 groups

Processor

Built-in processorNo
Processor socketLGA 4710
Number of processors supported2
Compatible processor seriesIntel® Xeon®

Memory

Number of DIMM slots32
Supported memory typesGDDR5
Memory channelsOcta-channel

Storage

Number of storage drives supported16
Hot-swap HDD baysYes
Number of 2.5" bays14
Storage drive sizes supported2.5,3.5"
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA, PCI Express 4.0

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports2
Mini DisplayPorts quantity1

Expansion slots

PCI Express slots version4.0
Number of M.2 (M) slots2

Features

Trusted Platform Module (TPM)Yes

Design

Chassis typeRack (2U)
Product colourBlack, Steel
LED indicatorsHDD, LAN, Status
On/off switchYes
Reset buttonYes
Cooling typeActive
Number of fans5 fan(s)

Power

Power supply2700 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
Number of redundant power supplies supported1
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current12 - 16 A
80 PLUS certification80 PLUS Titanium

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth815 mm
Height87.5 mm
Weight21.2 kg
Width438 mm

Packaging data

Packaging content1 x R284-S93-AAL1 2 x CPU heatsinks 1 x Mini-DP to D-Sub cable 2 x GPU power cables (16-pin, 280mm) 4 x Carriers 1 x 2-Section Rail kit
Package width1082 mm
Package depth685 mm
Package height314 mm
Package weight29.4 kg
