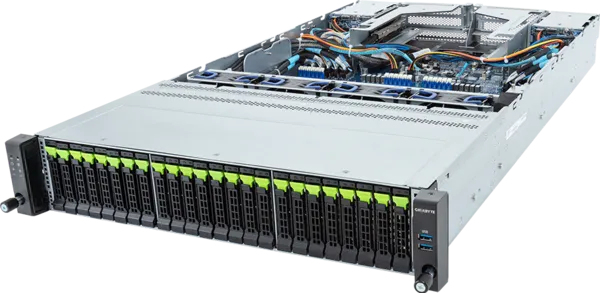

R283-Z96-AAJ1 LGA 6096 Rack (2U) Black, Steel
GIGABYTE

R283-Z96-AAJ1 LGA 6096 Rack (2U) Black, Steel

Model R283-Z96-AAJ1Part no. 6NR283Z96DR000ADJ1

51 specifications
  • Weight29.5 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots24
  • Number of storage drives supported31
  • On-board graphics card modelAspeed AST2600
See all specifications

Overview

Weight
29.5 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
24
Number of storage drives supported
31
On-board graphics card model
Aspeed AST2600
Brand
GIGABYTE
Model
R283-Z96-AAJ1
Part number
6NR283Z96DR000ADJ1
Also known as
GIGABYTE R283-Z96-AAJ1 LGA 6096 Rack (2U) Black, Steel

Specifications

51 specifications in 13 groups

Processor

Built-in processorNo
Processor socketLGA 6096
Number of processors supported2
Compatible processor seriesAMD EPYC 9004, AMD EPYC 9005

Memory

Number of DIMM slots24
Supported memory typesDDR5-SDRAM
Memory channelsDodeca-channel

Storage

Number of storage drives supported31
Hot-swap HDD baysYes
Storage drive sizes supported2.5,M.2
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA, Serial Attached SCSI (SAS)

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports2
Mini DisplayPorts quantity1

Expansion slots

PCI Express slots version4.0
Number of M.2 (M) slots3

Features

Trusted Platform Module (TPM)Yes
Backplanes supportYes

Design

Chassis typeRack (2U)
Product colourBlack, Steel
LED indicatorsHDD, LAN, Status
On/off switchYes
Reset buttonYes
Cooling typeActive

Power

Power supply2000 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
AC input voltage110 - 240 V
AC input frequency50/60 Hz
Input current12 - 10 A
80 PLUS certification80 PLUS Titanium

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth815 mm
Height87.5 mm
Weight29.5 kg
Width438 mm

Packaging data

Packaging content1 x R283-Z96-AAJ1 2 x CPU heatsinks 1 x Mini-DP to D-Sub cable 1 x 2-Section Rail kit
Package width1082 mm
Package depth685 mm
Package height314 mm
Package weight38 kg
