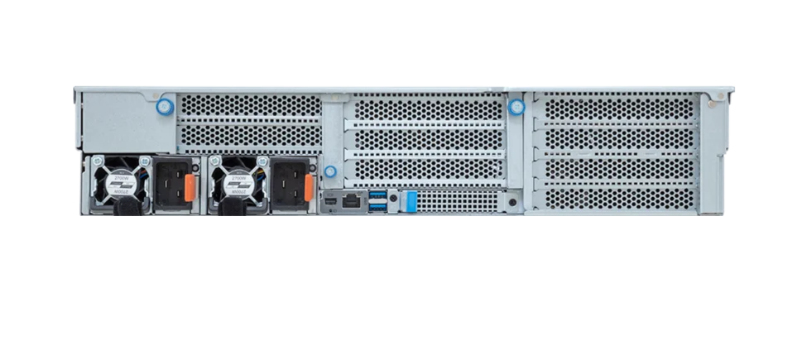

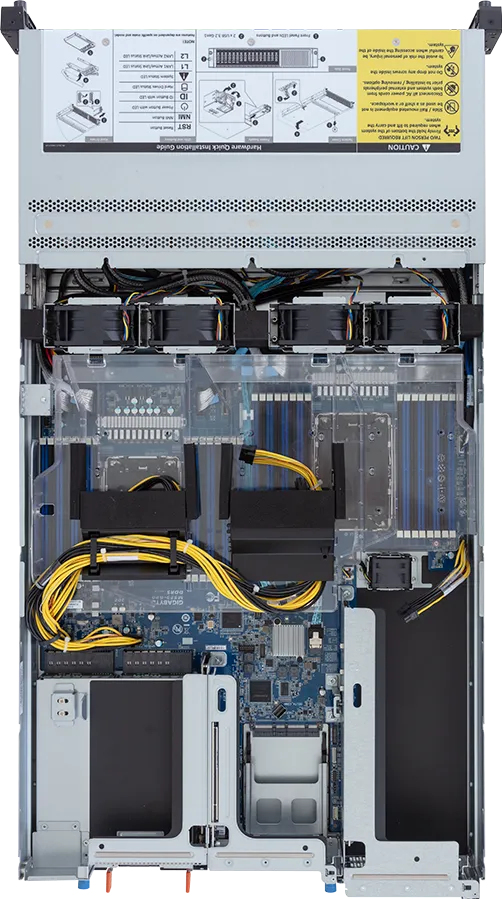

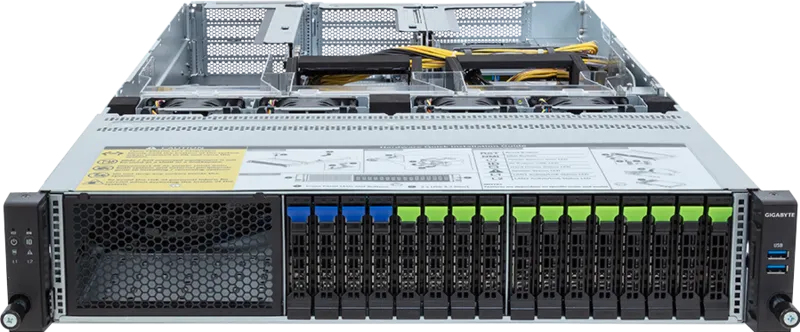

GIGABYTE R283-SF1-AAL1 Intel C741 LGA 4677 (Socket E) Rack (2U) Black, Steel
GIGABYTE

R283-SF1-AAL1 Intel C741 LGA 4677 (Socket E) Rack (2U) Black, Steel

Model R283-SF1-AAL1Part no. 6NR283SF1DR000AAL1EAN 4719331852276

48 specifications
  • Weight29.5 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots32
  • Number of storage drives supported16
  • On-board graphics card modelAspeed AST2600
See all specifications

Overview

Weight
29.5 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
32
Number of storage drives supported
16
On-board graphics card model
Aspeed AST2600
Brand
GIGABYTE
Model
R283-SF1-AAL1
Part number
6NR283SF1DR000AAL1
EAN / UPC
4719331852276
Also known as
GIGABYTE R283-SF1-AAL1 Intel C741 LGA 4677 (Socket E) Rack (2U) Black, Steel

Specifications

48 specifications in 12 groups

Processor

Built-in processorNo
Motherboard chipsetIntel C741
Processor socketLGA 4677 (Socket E)
Number of processors supported2
Compatible processor seriesIntel® Xeon®

Memory

Number of DIMM slots32
Supported memory typesGDDR5
Memory channelsOcta-channel

Storage

Number of storage drives supported16
Hot-swap HDD baysYes
Number of 2.5" bays16
Storage drive sizes supported2.5"
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Mini DisplayPorts quantity1

Features

Trusted Platform Module (TPM)Yes
Backplanes supportYes

Design

Chassis typeRack (2U)
Product colourBlack, Steel
LED indicatorsHDD, LAN, Status
On/off switchYes
Reset buttonYes
Number of fans5 fan(s)

Power

Power supply2700 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
AC input voltage110 - 240 V
AC input frequency50/60 Hz
Input current12 - 16 A
80 PLUS certification80 PLUS Titanium

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth815 mm
Height87.5 mm
Weight29.5 kg
Width438 mm

Packaging data

Packaging content1 x R283-SF1-AAL1 2 x CPU heatsinks 1 x Mini-DP to D-Sub cable 1 x GPU power cable (12VHPWR, 100mm) 1 x GPU power cable (12VHPWR, 300mm) 1 x GPU power cable (12VHPWR, 450mm) 1 x GPU power cable (12VHPWR, 650mm) 6 x Carriers 1 x 2-Section Rail kit
Package width1082 mm
Package depth685 mm
Package height314 mm
Package weight31.5 kg
