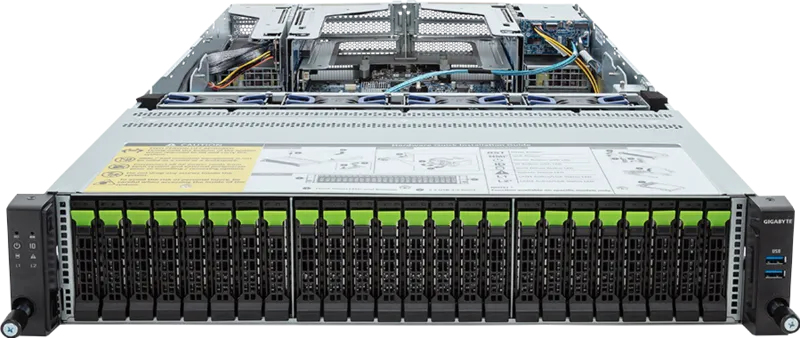

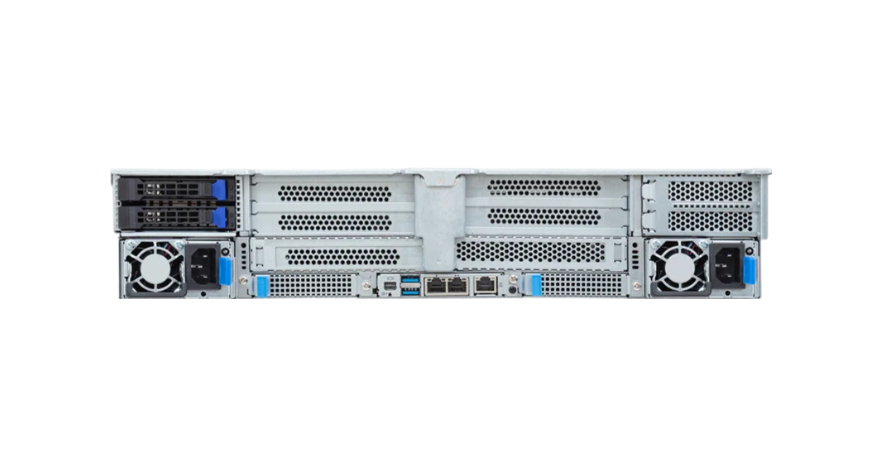

GIGABYTE R283-S98-AAJ1 Intel C741 LGA 4677 (Socket E) Rack (2U) Black, Grey
GIGABYTE

R283-S98-AAJ1 Intel C741 LGA 4677 (Socket E) Rack (2U) Black, Grey

Model R283-S98-AAJ1Part no. 6NR283S98DR000AAJ1EAN 4719331857059

55 specifications
  • ProcessorIntel® Xeon®
  • Weight3.08 kg
  • ColourBlack, Grey
  • Built-in processorNo
  • Number of DIMM slots32
  • Number of storage drives supported26
See all specifications

Overview

Processor
Intel® Xeon®
Weight
3.08 kg
Colour
Black, Grey
Built-in processor
No
Number of DIMM slots
32
Number of storage drives supported
26
Brand
GIGABYTE
Model
R283-S98-AAJ1
Part number
6NR283S98DR000AAJ1
EAN / UPC
4719331857059
Also known as
GIGABYTE R283-S98-AAJ1 Intel C741 LGA 4677 (Socket E) Rack (2U) Black, Grey

Specifications

55 specifications in 13 groups

Processor

Built-in processorNo
Motherboard chipsetIntel C741
Processor socketLGA 4677 (Socket E)
Processor manufacturerIntel
Processor familyIntel® Xeon®
Processor generationIntel Xeon Scalable 4th Gen
Number of processors supported2
Compatible processor seriesIntel® Xeon®

Memory

Number of DIMM slots32
Supported memory typesGDDR5
Memory channelsOcta-channel

Storage

Number of storage drives supported26
Hot-swap HDD baysYes
Number of 2.5" bays12
Storage drive sizes supported2.5,3.5"
RAID levels0, 1, 5, 10

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports2
Mini DisplayPorts quantity1

Expansion slots

Number of M.2 (M) slots1

Features

Trusted Platform Module (TPM)Yes
Backplanes supportYes

Design

Chassis typeRack (2U)
Product colourBlack, Grey
LED indicatorsHDD, LAN, Power, System
On/off switchYes
Reset buttonYes
Cooling typeActive
Fan diameter8 cm
Number of fans4 fan(s)

Power

Power supply2000 W
Number of main power supplies2
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Input current13 - 10 A
80 PLUS certification80 PLUS Titanium

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)5 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth815 mm
Height87.5 mm
Weight3.08 kg
Width438 mm

Packaging data

Packaging content1 x R283-S98-AAJ1 2 x CPU heatsinks 1 x Mini-DP to D-Sub cable 6 x Carriers 1 x 2-Section Rail kit
Package width1084 mm
Package depth685 mm
Package height314 mm
Package weight35.8 kg
