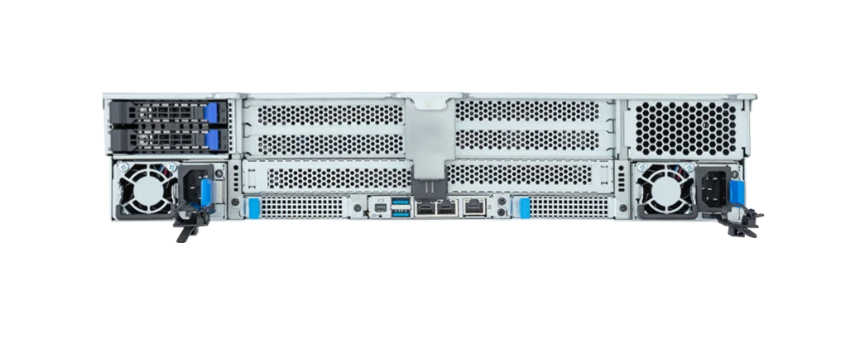

GIGABYTE R283-S94-AAV1 Intel C741 LGA 4677 (Socket E) Rack (2U) Black, Steel
GIGABYTE

R283-S94-AAV1 Intel C741 LGA 4677 (Socket E) Rack (2U) Black, Steel

Model R283-S94-AAV1Part no. 6NR283S94DR000AAV1

52 specifications
  • Weight29.2 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots32
  • Number of storage drives supported14
  • On-board graphics card modelAspeed AST2600
See all specifications

Overview

Weight
29.2 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
32
Number of storage drives supported
14
On-board graphics card model
Aspeed AST2600
Brand
GIGABYTE
Model
R283-S94-AAV1
Part number
6NR283S94DR000AAV1
Also known as
GIGABYTE R283-S94-AAV1 Intel C741 LGA 4677 (Socket E) Rack (2U) Black, Steel

Specifications

52 specifications in 13 groups

Processor

Built-in processorNo
Motherboard chipsetIntel C741
Processor socketLGA 4677 (Socket E)
Number of processors supported2
Compatible processor seriesIntel® Xeon®

Memory

Number of DIMM slots32
Supported memory typesDDR5-SDRAM
Memory channelsOcta-channel

Storage

Number of storage drives supported14
Hot-swap HDD baysYes
Number of 2.5" bays14
Storage drive sizes supported2.5,3.5"
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA, Serial Attached SCSI (SAS)
RAID levels0, 1, 5, 10

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports2
Mini DisplayPorts quantity1

Expansion slots

PCI Express slots version4.0

Features

Trusted Platform Module (TPM)Yes
Backplanes supportYes

Design

Chassis typeRack (2U)
Product colourBlack, Steel
LED indicatorsHDD, LAN, Status
On/off switchYes
Reset buttonYes
Cooling typeActive

Power

Power supply1600 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
AC input voltage110 - 240 V
AC input frequency50/60 Hz
Input current12 - 10 A
80 PLUS certification80 PLUS Titanium

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth815 mm
Height87.5 mm
Weight29.2 kg
Width438 mm

Packaging data

Packaging content1 x R283-S94-AAV1 2 x CPU heatsinks 1 x Mini-DP to D-Sub cable 6 x Carriers 1 x 2-Section Rail kit
Package width1082 mm
Package depth685 mm
Package height314 mm
