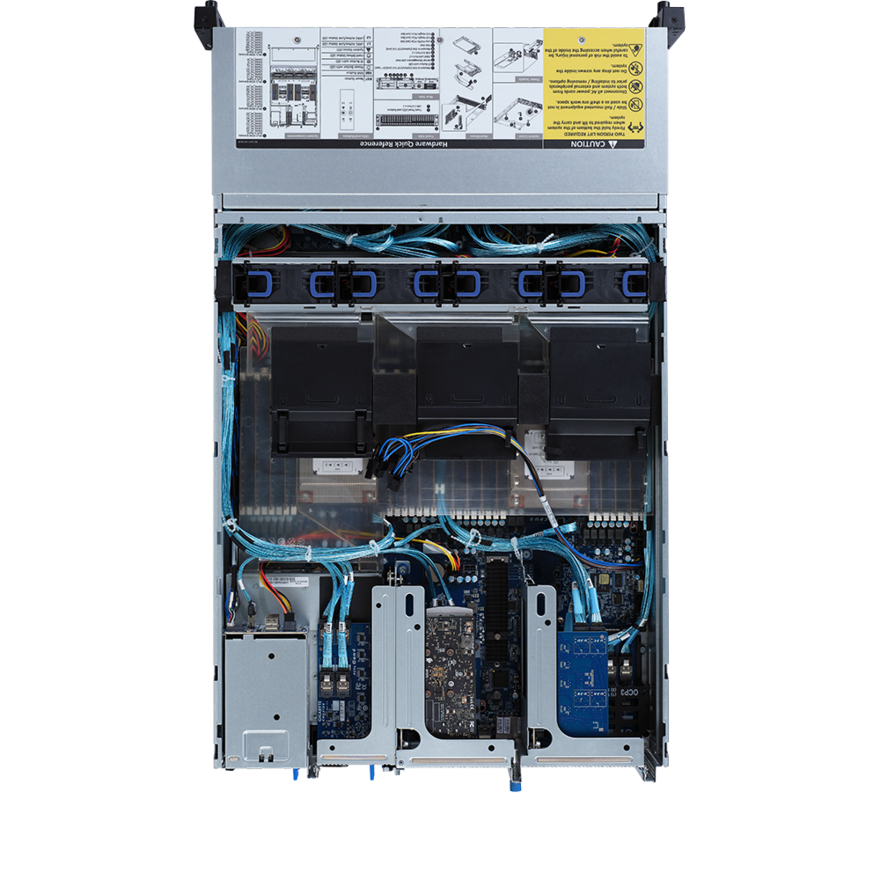

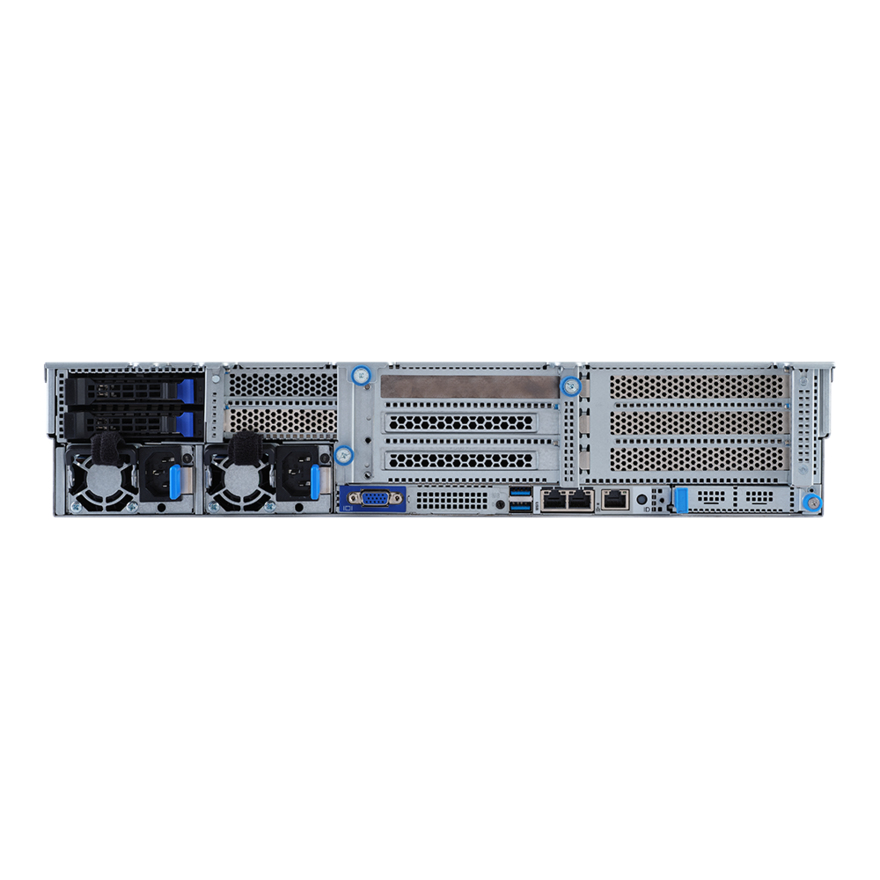

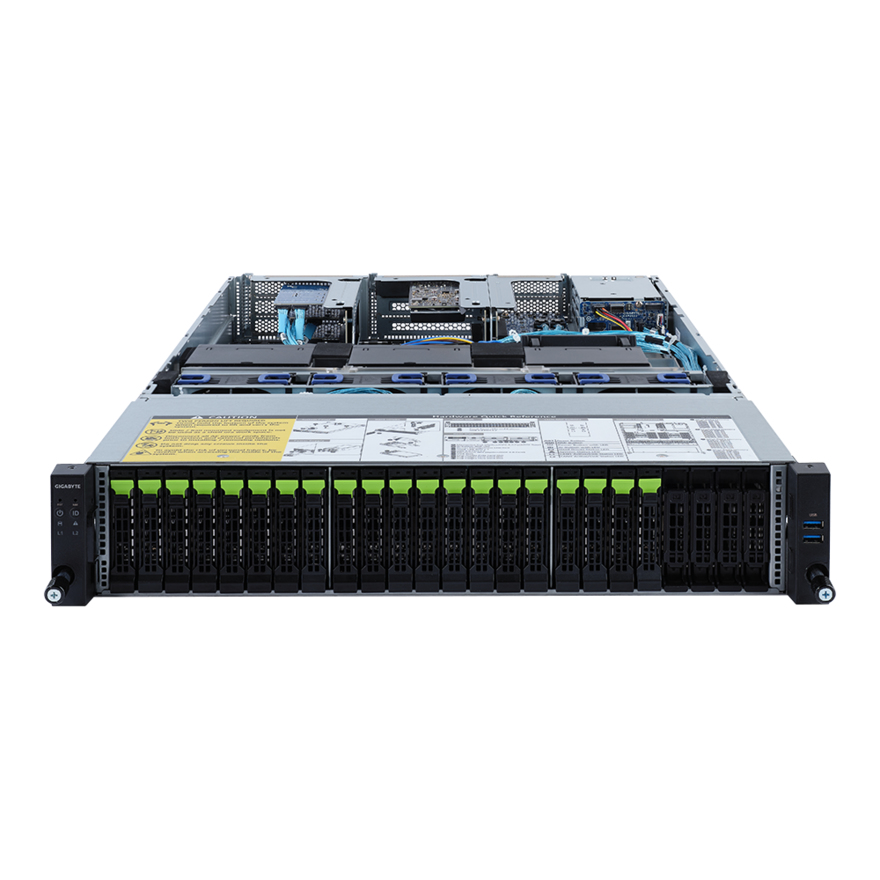

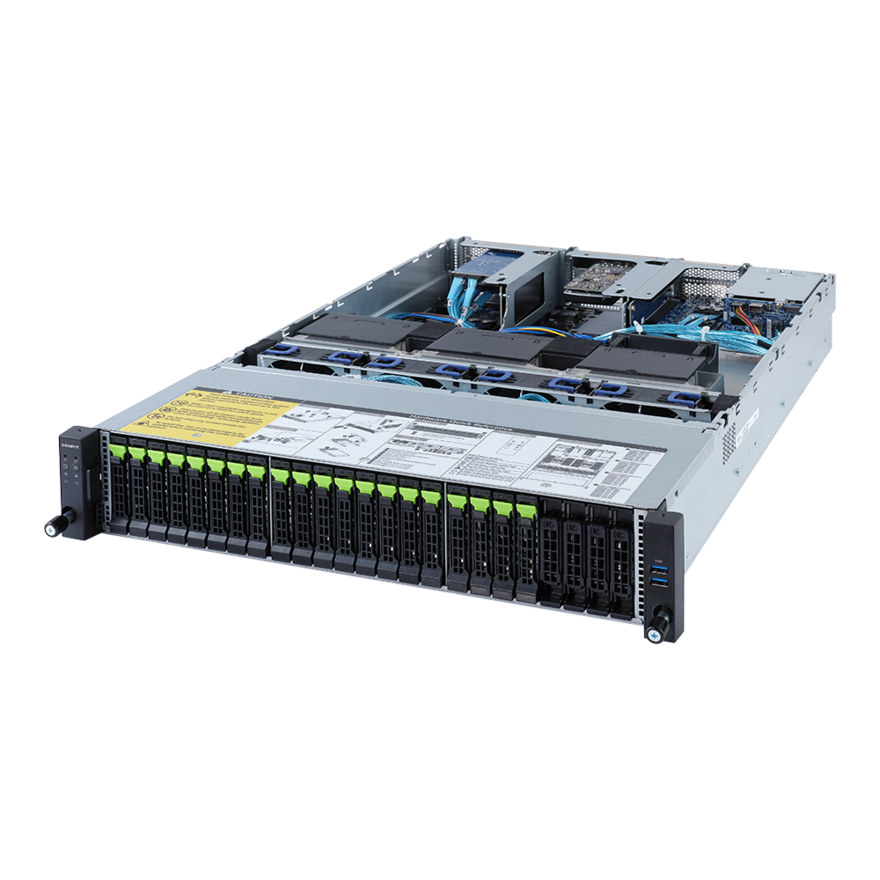

GIGABYTE R282-Z9G (rev. A00)
GIGABYTE

R282-Z9G (rev. A00)

Model R282-Z9G (rev. A00)Part no. 6NR282Z9GMR-00EAN 4719331601287

63 specifications
  • ProcessorAMD
  • GraphicsNot available
  • Weight18.5 kg
  • ColourBlack
  • Built-in processorNo
  • Number of DIMM slots32
See all specifications

Overview

Processor
AMD
Graphics
Not available
Weight
18.5 kg
Colour
Black
Built-in processor
No
Number of DIMM slots
32
Brand
GIGABYTE
Model
R282-Z9G (rev. A00)
Part number
6NR282Z9GMR-00
EAN / UPC
4719331601287
Also known as
GIGABYTE R282-Z9G (rev. A00) Socket SP3 Rack (2U) Black

Specifications

63 specifications in 14 groups

Processor

Built-in processorNo
Processor socketSocket SP3
Processor familyAMD
Number of processors supported2
Compatible processor seriesAMD EPYC

Memory

Number of DIMM slots32
Supported memory typesDDR4-SDRAM
Maximum internal memory128 GB
Supported RDIMM clock speeds2933,3200 MHz
Memory channelsOcta-channel

Storage

Number of storage drives supported12
Hot-swap HDD baysYes
Storage drive sizes supported2.5,3.5"
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA III

Graphics

Discrete graphics card modelNot available
On-board graphics card modelAspeed AST2500

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity1
Ethernet LAN (RJ-45) ports2
IPMI LAN (RJ-45) portYes
VGA (D-Sub) ports quantity1

Expansion slots

PCI Express slots version4.0
PCI Express x16 slots6
PCI Express x8 (Gen 3.x) slots1
Number of M.2 (M) slots1

Features

Integrated BMC with IPMIYes
Trusted Platform Module (TPM)Yes
Backplanes supportYes

Technical details

Compliance certificatesRoHS

Design

Chassis typeRack (2U)
Product colourBlack
LED indicatorsYes
On/off switchYes
Reset buttonYes
Rack railsYes
Fan diameter8 cm
Number of fans4 fan(s)

Power

Power supply2000 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
Number of redundant power supplies installed2
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current10 - 12 A
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth730 mm
Height87 mm
Weight18.5 kg
Width438 mm

Packaging data

Package width982 mm
Package depth588 mm
Package height268 mm
Package weight25.5 kg
