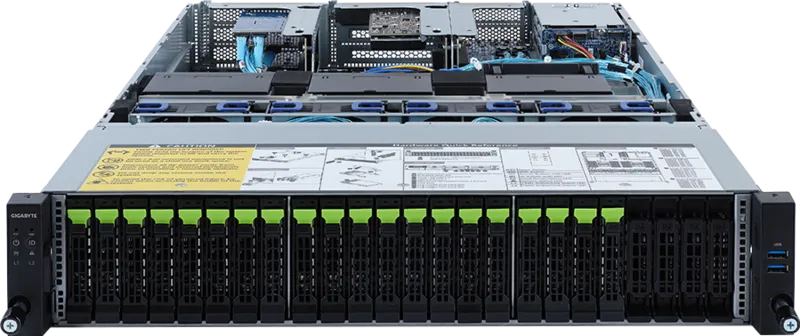

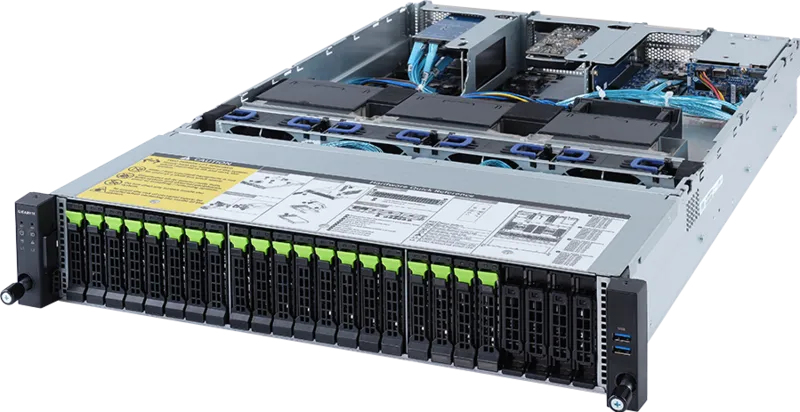

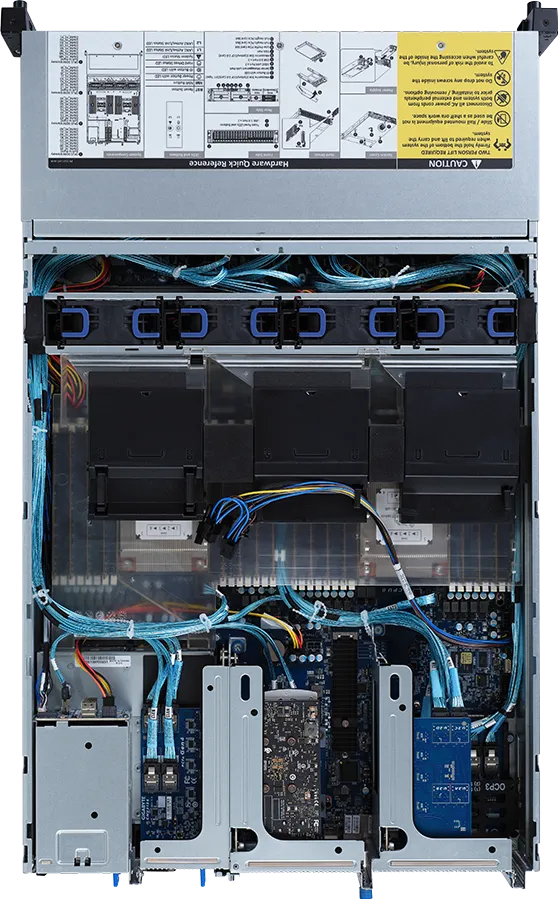

GIGABYTE R282-Z9G LGA 4094 Rack (2U) Black, Steel
GIGABYTE

R282-Z9G LGA 4094 Rack (2U) Black, Steel

Model R282-Z9GPart no. 6NR282Z9GMR-00-B00

53 specifications
  • Weight20.6 kg
  • ColourBlack, Steel
  • Built-in processorNo
  • Number of DIMM slots32
  • Number of storage drives supported23
  • On-board graphics card modelAspeed AST2500
See all specifications

Overview

Weight
20.6 kg
Colour
Black, Steel
Built-in processor
No
Number of DIMM slots
32
Number of storage drives supported
23
On-board graphics card model
Aspeed AST2500
Brand
GIGABYTE
Model
R282-Z9G
Part number
6NR282Z9GMR-00-B00
Also known as
GIGABYTE R282-Z9G LGA 4094 Rack (2U) Black, Steel

Specifications

53 specifications in 13 groups

Processor

Built-in processorNo
Processor socketLGA 4094
Number of processors supported2
Compatible processor seriesAMD EPYC

Memory

Number of DIMM slots32
Supported memory typesDDR5-SDRAM
Memory channelsOcta-channel

Storage

Number of storage drives supported23
Hot-swap HDD baysYes
Storage drive sizes supported2.5,M.2
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSerial ATA, Serial Attached SCSI (SAS)

Graphics

On-board graphics card modelAspeed AST2500

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerIntel® I350-AM2

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports2
VGA (D-Sub) ports quantity1

Expansion slots

PCI Express slots version4.0
Number of M.2 (M) slots1

Features

Trusted Platform Module (TPM)Yes
Backplanes supportYes

Design

Chassis typeRack (2U)
Product colourBlack, Steel
LED indicatorsHDD, LAN, Status
On/off switchYes
Reset buttonYes
Cooling typeActive
Fan diameter8 cm
Number of fans4 fan(s)

Power

Power supply1600 W
Number of main power supplies2
Redundant power supply (RPS) supportYes
AC input voltage110 - 240 V
AC input frequency50/60 Hz
Input current12 - 10 A
80 PLUS certification80 PLUS Platinum

Operational conditions

Operating relative humidity (H-H)8 - 80%
Operating temperature (T-T)10 - 35 °C
Storage relative humidity (H-H)20 - 95%
Storage temperature (T-T)-40 - 60 °C

Weight & dimensions

Depth730 mm
Height87 mm
Weight20.6 kg
Width438 mm

Packaging data

Packaging content1 x R282-Z9G 2 x CPU heatsinks 1 x Rail kit
Package width982 mm
Package depth588 mm
Package height268 mm
Package weight25.6 kg
