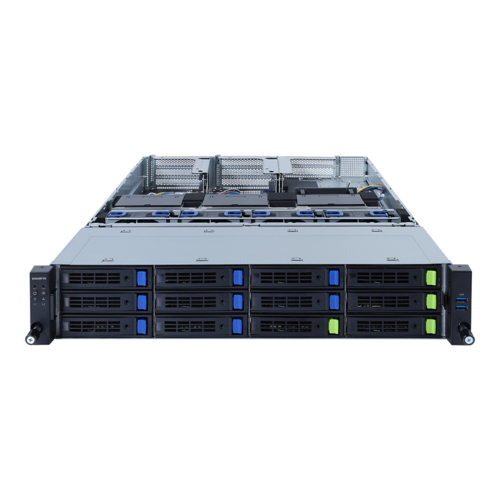

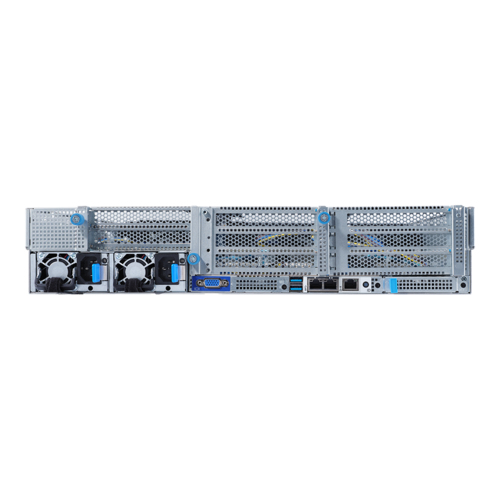

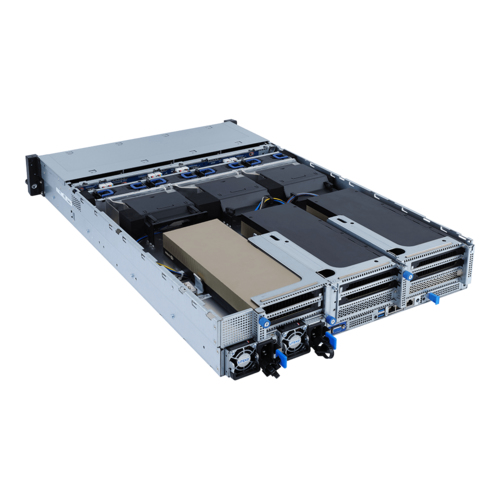

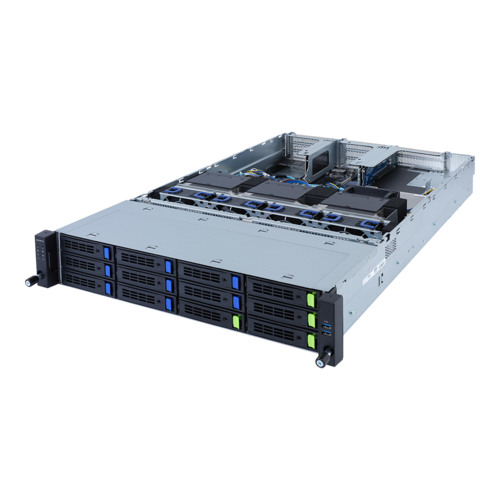

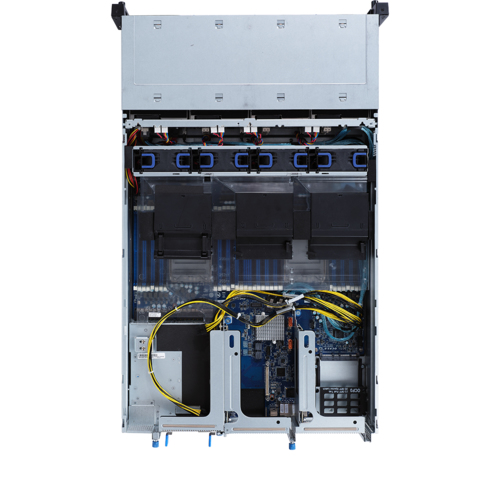

GIGABYTE R282-G30 Intel® C621 LGA 4189 Rack (2U)
GIGABYTE

R282-G30 Intel® C621 LGA 4189 Rack (2U)

Model R282-G30Part no. 6NR282G30MR-00EAN 4719331600150

45 specifications
  • ProcessorIntel® Xeon® Scalable
  • Built-in processorNo
  • Number of DIMM slots32
  • Number of storage drives supported12
  • On-board graphics card modelAspeed AST2600
  • Ethernet LANYes
See all specifications

Overview

Processor
Intel® Xeon® Scalable
Built-in processor
No
Number of DIMM slots
32
Number of storage drives supported
12
On-board graphics card model
Aspeed AST2600
Ethernet LAN
Yes
Brand
GIGABYTE
Model
R282-G30
Part number
6NR282G30MR-00
EAN / UPC
4719331600150
Also known as
GIGABYTE R282-G30 Intel® C621 LGA 4189 Rack (2U)

Specifications

45 specifications in 12 groups

Processor

Built-in processorNo
Motherboard chipsetIntel® C621
Processor socketLGA 4189
Processor manufacturerIntel
Processor familyIntel® Xeon® Scalable

Memory

Number of DIMM slots32
Supported memory typesDDR4-SDRAM
Supported DIMM module capacities2GB, 3GB, 4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Supported RDIMM clock speeds2666,2933,3200 MHz
Memory voltage1.2 V

Storage

Number of storage drives supported12
Hot-swap HDD baysYes
Number of 2.5" bays8
Number of 3.5" bays4
Storage drive sizes supported2.5,3.5"
Supported storage drive typesHDD & SSD

Graphics

On-board graphics card modelAspeed AST2600

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s

Ports & interfaces

Ethernet LAN (RJ-45) ports2
VGA (D-Sub) ports quantity1

Expansion slots

PCI Express slots version4.0
PCI Express x16 slots5

Features

Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Backplanes supportYes
Compatible operating systemsWindows Server 2016 Windows Server 2019 Red Hat Enterprise Linux 8.2 ( x64) or later Red Hat Enterprise Linux 8.3 ( x64) or later SUSE Linux Enterprise Server 12 SP5 ( x64) or later SUSE Linux Enterprise Server 15 SP2 ( x64) or later Ubuntu 20.04 LTS (x64) or later Ubuntu 20.04.1 LTS (x64) or later

Logistics data

Harmonized System (HS) code84714100

Design

Chassis typeRack (2U)
LED indicatorsHDD, LAN, Power, Status
On/off switchYes
Reset buttonYes
Fan diameter8 cm
Number of fans4 fan(s)

Power

Power supply2400 W
AC input voltage180 - 240 V
AC input frequency47 - 63 Hz
Input current14.5 A
DC output current (+12 V)84 A
80 PLUS certification80 PLUS Platinum

Packaging data

Packaging content1 x R282-G30 2 x CPU heatsinks 1 x Rail kit
Package width982 mm
Package depth588 mm
Package height268 mm
